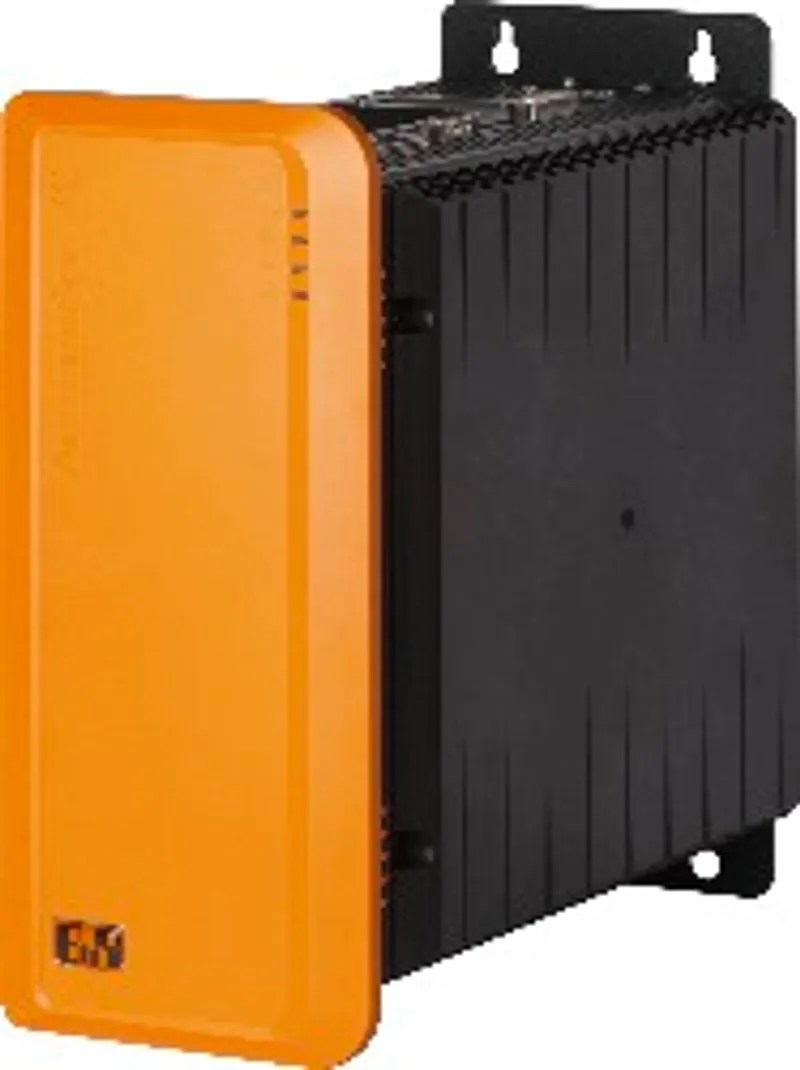

What is the B&R 5PC910.SX02-00?
Slot for a bus unit with 2 PCI slots or with 1 PCI and 1 PCIe slot
Slot for 1 slide-in compact drive and 1 slide-in drive
Slot for 2 interface options
SDL/DVI/Monitor and DisplayPort interfaces
Slot for monitor/panel option
CFast slot
2-slot APC910 system unit
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 4 years (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%. If an interface option with SRAM or POWERLINK is installed, the service life is 2½ years.) |
| Battery – Removable | Yes, accessible behind the front cover |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Non-compliant |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family. The display port has no DNV GL certification and is therefore not permitted for use in maritime environments.) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV3 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
| LEDs | Power, HDD, Link, Run |
| B&R ID code | 0xD6DB |
| Cooling | Passive via heat sink and optionally supported with an active fan kit |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
Controller
| Real-time clock – Battery-backed | Yes |
| Power failure logic – Controller | MTCX (note: Maintenance Controller Extended) |
| Power failure logic – Buffer time | 10 ms |
| Memory – Type | Depends on the CPU board being used |
| Memory – Memory size | Depends on the CPU board being used |
| Graphics – Controller | Depends on the CPU board being used |
| Bootloader | BIOS |
Interfaces
| COM1 – Type | RS232, modem supported, not galvanically isolated |
| COM1 – Variant | DSUB, 9-pin, male |
| COM1 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM1 – Max. baud rate | 115 kbit/s |
| CFast slot – Quantity | 1 |
| CFast slot – Type | SATA III (SATA 6.0 Gbit/s) |
| USB – Quantity | 5 |
| USB – Type | 4x USB 3.0 (top); 1x USB 2.0 (front) |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s), high speed (480 Mbit/s) to SuperSpeed (5 Gbit/s) (note: The SuperSpeed transfer rate (5 Gbit/s) is only possible with USB 3.0.) |
| USB – Current-carrying capacity | Max. 1 A per connection |
| Ethernet – Quantity | 2 |
| Ethernet – Variant | RJ45, shielded |
| Ethernet – Transfer rate | 10/100/1000 Mbit/s |
| Ethernet – Max. baud rate | 1 Gbit/s |
| DisplayPort – Quantity | 1 |
| DisplayPort – Version | Depends on the CPU board being used |
| Panel/Monitor interface – Variant | DVI-I |
| Panel/Monitor interface – Type | SDL/DVI/Monitor |
Slots
| PCI/PCIe slots – Quantity | 2 PCI slots or; 1 PCI and 1 PCIe slot or; 2 PCIe slots (note: The PCI and PCIe slots depend on bus units 5AC901.BX02-00, 5AC901.BX02-01 and 5AC901.BX02-02 used.) |
| Slide-in drives – Quantity | 1 |
| Slide-in drives – Type | Depends on the CPU board being used |
| Slide-in compact drives – Quantity | 1 |
| Slide-in compact drives – Type | SATA III (SATA 6.0 Gbit/s) |
| Interface option | 2 |
| Monitor/Panel option | 1 |
| Add-on UPS slot | Yes (note: The UPS module can only be operated in the IF option 1 slot.) |
| Slot for fan kit | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25%, SELV+24 VDC power supply" of the user's manual."> (note: EN 60950 requirements must be observed; see section) |
| Nominal current | Max. 5.5 APower calculation" section). The inrush current must also be taken into account when selecting the power supply unit."> (note: Maximum current consumption (24 V / 130 W). This can vary depending on the configuration (see) |
| Inrush current | Max. 60 A for < 300 μs |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP20 (note: Only when all interface covers and the front cover are installed.) |
Ambient conditions
| Temperature – Operation | Component-dependent (note: For detailed information, see the temperature tables in the user's manual.) |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | Component-dependent |
| Relative humidity – Storage | Component-dependent |
| Relative humidity – Transport | Component-dependent |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g (note: Maximum values unless specified otherwise by another individual component. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g (note: Maximum values unless specified otherwise by another individual component. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g (note: Maximum values unless specified otherwise by another individual component. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g (note: Maximum values unless specified otherwise by another individual component. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Shock – Operation | 15 g, 11 ms (note: Maximum values unless specified otherwise by another individual component. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Shock – Storage | 30 g, 6 ms (note: Maximum values unless specified otherwise by another individual component. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Shock – Transport | 30 g, 6 ms (note: Maximum values unless specified otherwise by another individual component. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Elevation – Operation | -300 to 3000 m above sea level (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
Mechanical properties
| Housing – Material | Galvanized plate, plastic (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Housing – Coating | Anthracite gray (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 130 mm |
| Dimensions – Height | 270 mm |
| Dimensions – Depth | 254.75 mm |
| Weight | 2550 g |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 5AC901.BX02-02 | Bus units — 2 PCIe slots; PCIe half-size cards can be inserted APC910 with 2-slot bus - 2 PCI Express x4 |
| 5AC901.BX02-01 | Bus units — 1 PCI and 1 PCIe slot; PCI and PCIe half-size card can be inserted APC910 with 2-slot bus - 1 PCI - 1 PCI Express x8 |
| 5AC901.BX02-00 | Bus units — 2 PCI slots; PCI half-size cards can be inserted APC910 with 2-slot bus - 2 PCI |
| 5PC900.TS17-04 | CPU boards — CPU board Intel Core i7 6820EQ - Quad core - QM170 chipset - 2.8 GHz active - For APC910 |
| 5PC900.TS17-03 | CPU boards — CPU board Intel Xeon E3-1515MV5 - Quad core - CM236 chipset - 2.8 GHz active - For APC910 |
| 5PC900.TS17-02 | CPU boards — CPU board Intel Celeron G3900E - Dual core - HM170 chipset - 2.4 GHz active, 1.7 GHz passive - For APC910 |
| 5PC900.TS17-01 | CPU boards — CPU board Intel Core i3 6100E - Dual core - HM170 chipset - 2.7 GHz active, 1.9 GHz passive - For APC910 |
| 5PC900.TS17-00 | CPU boards — CPU board Intel Core i5 6440EQ - Quad core - QM170 chipset - 2.7 GHz active - For APC910 |
| 5AC901.HS01-01 | Heat sink — APC910 passive heat sink QM170/HM170 |
| 5AC901.HS01-00 | Heat sink — The 5AC901.HS01-00 heat sink has cooling fins and heat pipes for improved heat dissipation. It is only used together with system units that… |
| 5AC901.HS00-02 | Heat sink — APC910 active heat sink CM236 |
| 5AC901.HS00-01 | Heat sink — APC910 active heat sink QM170/HM170 |
| 5AC901.HS00-00 | Heat sink — The 5AC901.HS00-00 heat sink has cooling fins and heat pipes for improved heat dissipation. It is only used together with system units that… |
| 5MMDDR.8192-04 | Main memory — SO-DIMM DDR4, 8192 MB |
| 5MMDDR.8192-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 8192 MB SO-DIMM DDR3, 8192 MB |
| 5MMDDR.4096-04 | Main memory — SO-DIMM DDR4, 4096 MB |
| 5MMDDR.4096-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 4096 MB SO-DIMM DDR3, 4096 MB |
| 5MMDDR.2048-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 2048 MB SO-DIMM DDR3, 2048 MB |
| 5MMDDR.1024-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 1024 MB SO-DIMM DDR3, 1024 MB |
| 5MMDDR.016G-04 | Main memory — SO-DIMM DDR4, 16384 MB |
Optional accessories (28)
| 5AC804.MFLT-00 | Accessories — Line filter 5AC804.MFLT-00 may be necessary to meet maritime requirements regarding conducted interference emissions in power supply line p… |
| 5AC901.SSCA-00 | Drives — Slide-in compact slot; Slide-in The slide-in compact adapter is a slide-in adapter that allows a slide-in compact drive to be installed and… |
| 5AC901.SDVW-00 | Drives — DVD-R/RW, DVD+R/RW drive; Slide-in The DVD-R/RW slide-in drive can be used in APC910 system units and PPC900 bus units with a slide-in driv… |
| 5AC901.CSSD-06 | Drives — 512 GB solid-state drive; MLC flash memory; S.M.A.R.T. support; Slide-in compact; SATA 3.1 compatible 5AC901.CSSD-0x slide-in compact solid… |
| 5AC901.CSSD-05 | Drives — 256 GB solid-state drive; MLC flash memory; S.M.A.R.T. support; Slide-in compact; SATA 3.1 compatible 5AC901.CSSD-0x slide-in compact solid… |
| 5AC901.CSSD-04 | Drives — 128 GB solid-state drive; MLC flash memory; S.M.A.R.T. support; Slide-in compact; SATA 3.1 compatible 5AC901.CSSD-0x slide-in compact solid… |
| 5AC901.CHDD-01 | Drives — 500 GB hard disk; Slide-in compact; Specified for 24-hour operation; S.M.A.R.T. support This 500 GB slide-in compact hard disk is specified… |
| 5AC901.CCFA-00 | Drives — CFast slot; Slide-in compact This CFast adapter is a slide-in compact adapter that allows a CFast card to be inserted and operated on a B&R… |
| 5AC901.FA02-00 | Fan kits — This fan kit includes 4 fans for improving heat dissipation on 2-slot APC910 system units. |
| 5AC901.FF02-02 | Front covers — Front cover for 2-slot APC910 - Dark gray - Without logo |
| 5AC901.FF02-01 | Front covers — Front cover for 2-slot APC910 - Dark gray |
| 5AC901.FF02-00 | Front covers — Front cover for 2-slot APC910 - Orange |
| 5AC901.ISRM-00 | Interface options — 2 MB SRAM; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Interface option 5AC901.ISRM-00 is equipped with 2 MB SRAM. |
| 5AC901.ISIO-00 | Interface options — Connections for the reset button and power buttons on the PC; Connection for LED "Power" on the PC; 1 normally closed contact, 1 normally o… |
| 5AC901.IRDY-00 | Interface options — 1 normally closed contact, 1 normally open contact; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Ready relay 5AC901.IRDY-00 i… |
| 5AC901.IPLK-00 | Interface options — 1x POWERLINK interface managing or controlled node; 2 MB SRAM; Compatible with APC910/PPC900 and APC3100/PPC3100 Interface card - 1x POWERL… |
| 5AC901.IHDA-00 | Interface options — 1x MIC; 1x Line IN; 1x Line OUT; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Interface option 5AC901.IHDA-00 is equipped wit… |
| 5AC901.IETH-00 | Interface options — Interface card - 1x ETH 10/100/1000 - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100 |
| 5AC901.ICAN-01 | Interface options — Interface card - 1x CAN interface (SJA1000) - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100 |
| 5AC901.ICAN-00 | Interface options — 1x CAN bus master interface; Compatible with APC910/PPC900 and APC3100/PPC3100 Interface option 5AC901.ICAN-00 is equipped with a CAN bus m… |
| 5AC901.I485-00 | Interface options — 1x RS232/RS422/RS485 interface; Compatible with APC910/PPC900 and APC3100/PPC3100 Interface option 5AC901.I485-00 is equipped with an RS232… |
| 5AC901.I232-00 | Interface options — Interface card - 1x RS232 interface - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100 |
| 5AC901.LSDL-00 | Monitor/Panel options — SDL/DVI interface; Compatible with APC910 Monitor/Panel option 5AC901.LSDL-00 is equipped with a monitor/panel interface for connecting add… |
| 5AC901.LSD4-00 | Monitor/Panel options — Graphics option - 1x SDL4 transmitter (max. 1920 x 1080) - For APC910 |
| 5AC901.LSD3-00 | Monitor/Panel options — SDL3 interface; Compatible with APC910 The 5AC901.LSD3-00 monitor/panel option is equipped with an SDL3 interface. |
| 5AC901.LDPO-00 | Monitor/Panel options — DisplayPort interface; USB 2.0 interface; Compatible with APC910 Monitor/Panel option 5AC901.LDPO-00 is equipped with a DisplayPort and USB… |
| 5AC901.IUPS-01 | Uninterruptible power supplies — UPS IF option 5AC901.IUPS-01 used together with battery unit 5AC901.BUPS-01 allows the B&R industrial PC to be switched off properly withou… |
| 5AC901.IUPS-00 | Uninterruptible power supplies — UPS IF option 5AC901.IUPS-00 used together with battery unit 5AC901.BUPS-00 allows the B&R industrial PC to be switched off properly withou… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (6)
- ABS Certificate of Product Design Assessment - Automation PCs
- BV Type Approval Certificate - Automation PCs
- CCS Type Approval Certificate - Automation PCs, Panel PCs and Panels
- DNV Type Approval Certificate - Automation PC 910
- DNV Type Approval Certificate - Automation PCs, Panel PCs and Panels
- Lloyds Register cLR22132129TA-1962056
5PC910.SX02-00: frequently asked questions
When can 5PC910.SX02-00 be shipped?
5PC910.SX02-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PC910.SX02-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PC910.SX02-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PC910.SX02-00, subject to availability and destination.
