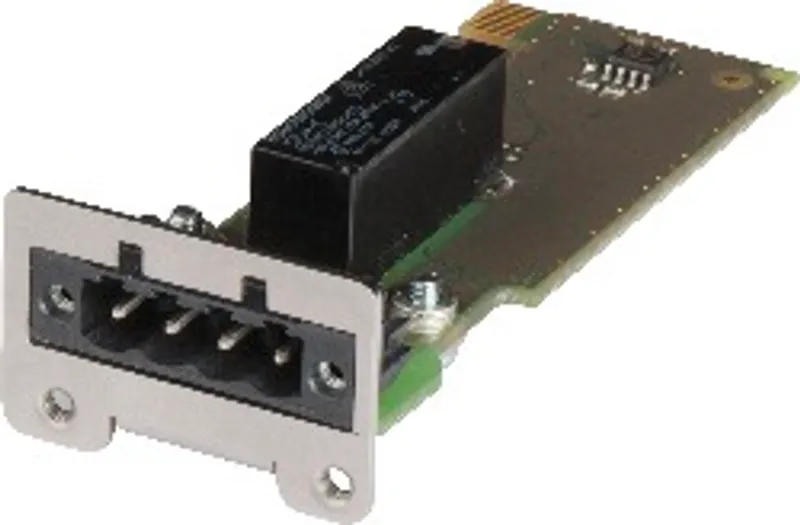

B&R 5AC901.IRDY-00

1 normally closed contact, 1 normally open contact

MPN: 5AC901.IRDY-00
Category: Interface options

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5AC901.IRDY-00?

1 normally closed contact, 1 normally open contact

Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100

Ready relay 5AC901.IRDY-00 is switched as soon as the B&R industrial PC has started up and all internal supply voltages are applied. It is possible to connect additional devices to the ready relay; they will also be switched on when the B&R industrial PC starts up.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xD84F
Ready relay	Normally open contact and normally closed contact, max. 30 VDC, max. 2 A

Electrical properties

Power consumption

0.2 W

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	0 to 60°C (note: For detailed information, see the temperature tables in the user's manual.)
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Weight

Approx. 30 g

Accessories

Required accessories (order separately)

0TB2104.8000

Terminal blocks — Connector 24 VDC - 4-pin female - Screw clamp terminal block 2.5 mm²
