What is the B&R 5AC901.FA02-00?

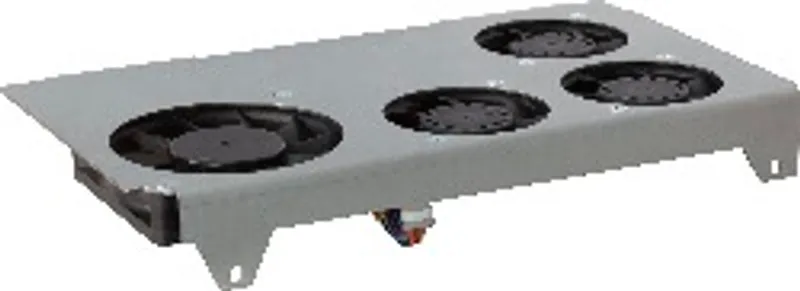

This fan kit includes 4 fans for improving heat dissipation on 2-slot APC910 system units.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV3 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
| Number of fans | 4 (3x 50 x 50 x 15, 1x 70 x 70 x 15) |
| Speed | Max. 5000 ±10% rpm (50 x 50 x 15); Max. 2200 ±250 rpm (70 x 70 x 15) |
| Noise level | 33.5 dB(A) (50 x 50 x 15); 28.3 dB(A) (70 x 70 x 15) |
| Service life | 100000 hours at 40°C (50 x 50 x 15); 100000 hours at 40°C (70 x 70 x 15) |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Mechanical properties
| Dimensions – Width | 50 mm; 70 mm |
| Dimensions – Height | 50 mm; 70 mm |
| Dimensions – Depth | 15 mm; 15 mm |
Accessories
Optional accessories (1)
| 5AC901.FI02-00 | Accessories — APC910 air filter - For 2-slot APC910 - 5 pieces |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
