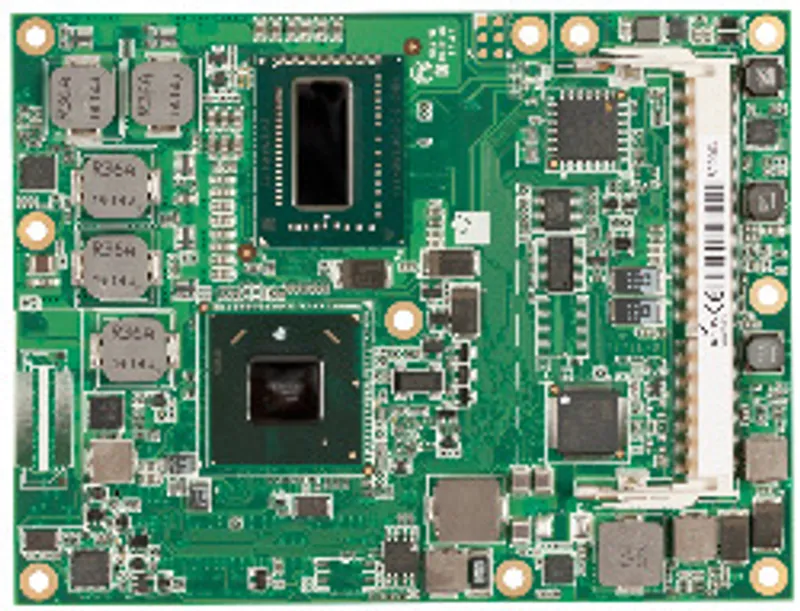

B&R 5PC900.TS17-01

CPU board Intel Core i3 6100E, Dual core, HM170 chipset

MPN: 5PC900.TS17-01
Category: CPU boards

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5PC900.TS17-01?

CPU board Intel Core i3 6100E - Dual core - HM170 chipset - 2.7 GHz active, 1.9 GHz passive - For APC910

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.)
Certifications – CCS	Yes
Certifications – KR	Yes

Controller

Processor – Type	Intel Core i3-6100E
Processor – Clock frequency	2700 MHz
Processor – Total number of cores	2
Processor – Architecture	14 nm
Processor – Thermal design power (TDP)	35 W
Processor – Intel Smart Cache	3 MB
Processor – External bus	DMI3, 8 GT/s
Processor – Intel 64 architecture	Yes
Processor – Intel Turbo Boost Technology	No
Processor – Intel Hyper-Threading Technology	Yes
Processor – Intel vPro Technology	No
Processor – Intel Virtualization Technology (VT-x)	Yes
Processor – Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Processor – Enhanced Intel SpeedStep Technology	Yes
Real-time clock – Accuracy	At 25°C: Typ. 12 ppm (1 second) per day (note: At max. specified ambient temperature: Typ. 58 ppm (5 seconds) - worst case 220 ppm (19 seconds).)
Real-time clock – Battery-backed	Yes
Memory slot – Number of memory channels	2
Memory slot – Type	DDR4
Memory slot – Memory size	Max. 32 GB
Memory slot – Max. memory bandwidth	34.1 GB/s
Graphics – DVI	Resolution up to 1920 x 1200 (WUXGA)
Graphics – RGB	350 MHz RAMDAC, resolution up to 2048 x 1536 @ 75 Hz (QXGA)
Graphics – DisplayPort	Version 1.2, resolution up to 4K
Graphics – Controller	Intel HD Graphics 530
Graphics – Max. dynamic graphics frequency	950 MHz
Graphics – Color depth	Max. 32-bit
Graphics – DirectX support	12
Graphics – OpenGL support	4.4
Bootloader	Embedded AMI BIOS
Chipset	Intel HM170
Trusted Platform Module (TPM)	TPM 2.0
Mass memory management	4x SATA
Power management	ACPI 5.0 with battery support

Support

Software – Automation Studio

Yes

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Accessories

Required accessories (order separately)

5AC901.HS01-01	Heat sink — APC910 passive heat sink QM170/HM170
5AC901.HS00-01	Heat sink — APC910 active heat sink QM170/HM170
5MMDDR.8192-04	Main memory — SO-DIMM DDR4, 8192 MB
5MMDDR.4096-04	Main memory — SO-DIMM DDR4, 4096 MB
5MMDDR.016G-04	Main memory — SO-DIMM DDR4, 16384 MB
