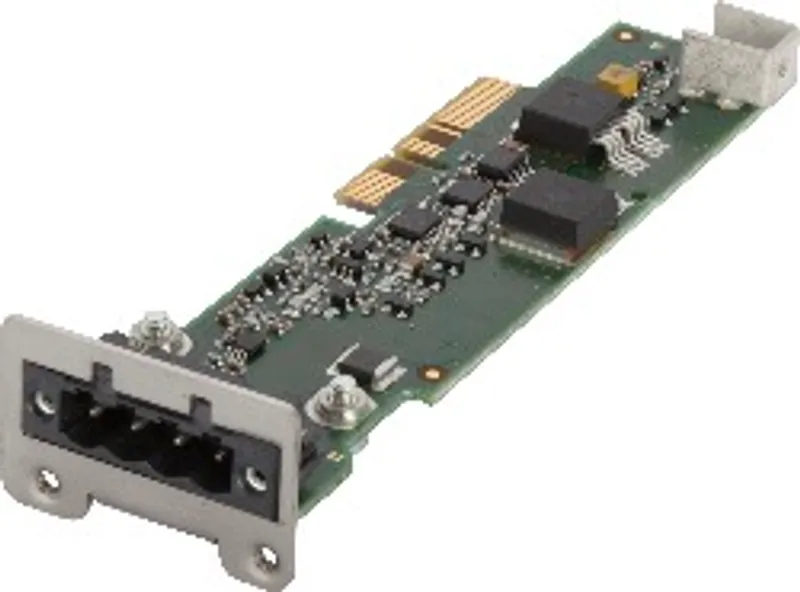

B&R 5AC901.IUPS-01

UPS IF option together with battery…

MPN: 5AC901.IUPS-01
Category: Uninterruptible power supply

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 5AC901.IUPS-01?

UPS IF option 5AC901.IUPS-01 used together with battery unit 5AC901.BUPS-01 allows the B&R industrial PC to be switched off properly without data loss during a power failure.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
B&R ID code	0xDF84

Electrical properties

Battery charging data – Charging current	Typ. 0.88 A
Power consumption	Max. 25 W at 0.9 A
Deep discharge protection	Yes
Short-circuit proof	Yes (note: The interface option is short-circuit proof. This value does not apply to the connected battery unit.)

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	0 to 55°C (note: For detailed information, see the temperature tables in the user's manual.)
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Weight

Approx. 28 g

Accessories

Required accessories (order separately)

5CAUPS.0030-01	Uninterruptible power supplies — The UPS connection cable, which is 3 m long, establishes the connection between the UPS interface option and the battery unit.
5CAUPS.0010-01	Uninterruptible power supplies — The UPS connection cable, which is 1 m long, establishes the connection between the UPS interface option and the battery unit.
5CAUPS.0005-01	Uninterruptible power supplies — The UPS connection cable, which is 0.5 m long, establishes the connection between the UPS interface option and the battery unit.
5AC901.BUPS-01	Uninterruptible power supplies — Battery unit for UPS IF option 5AC901.IUPS-01; Maintenance-free lead acid rechargeable battery; 2x 12 V, 2.2 Ah rechargeable batteries conn…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

5AC901.IUPS-01: frequently asked questions

When can 5AC901.IUPS-01 be shipped?

5AC901.IUPS-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5AC901.IUPS-01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5AC901.IUPS-01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AC901.IUPS-01, subject to availability and destination.
