Home / B&R / Main memory / B&R 5MMDDR.016G-04

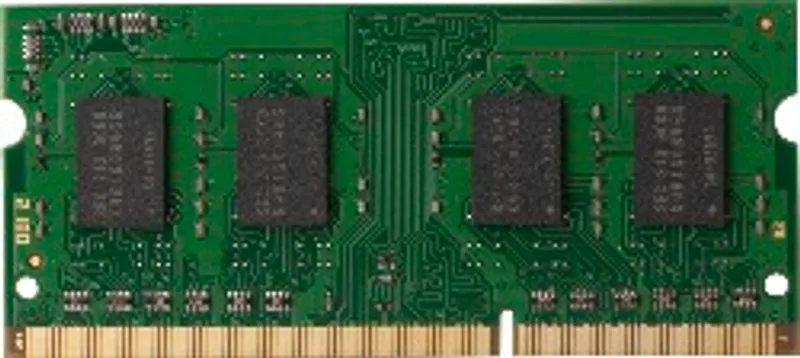

B&R 5MMDDR.016G-04

SO-DIMM DDR4, 16384 MB

MPN: 5MMDDR.016G-04
Category: Main memory

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5MMDDR.016G-04?

SO-DIMM DDR4, 16384 MB

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.)
Certifications – CCS	Yes
Certifications – LR	ENV3
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck

Controller

Memory – Type	SO-DIMM DDR4 SDRAM
Memory – Memory size	16 GB
Memory – Construction	260-pin
Memory – Organization	2048M x 64-bit
Memory – Speed	DDR4-2133 (PC4-17000)

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Accessories

Optional accessories (1)

5ACCRDDR.016G-04

Main memory — HMI SO-DIMM DDR4-2133 16384 MB

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Certificates (1)

CCS Type Approval Certificate - Automation PCs, Panel PCs and PanelsPDF · 471 KB · 2.00 (01/15/2026)

5MMDDR.016G-04: frequently asked questions

When can 5MMDDR.016G-04 be shipped?

5MMDDR.016G-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5MMDDR.016G-04 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5MMDDR.016G-04 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5MMDDR.016G-04, subject to availability and destination.
