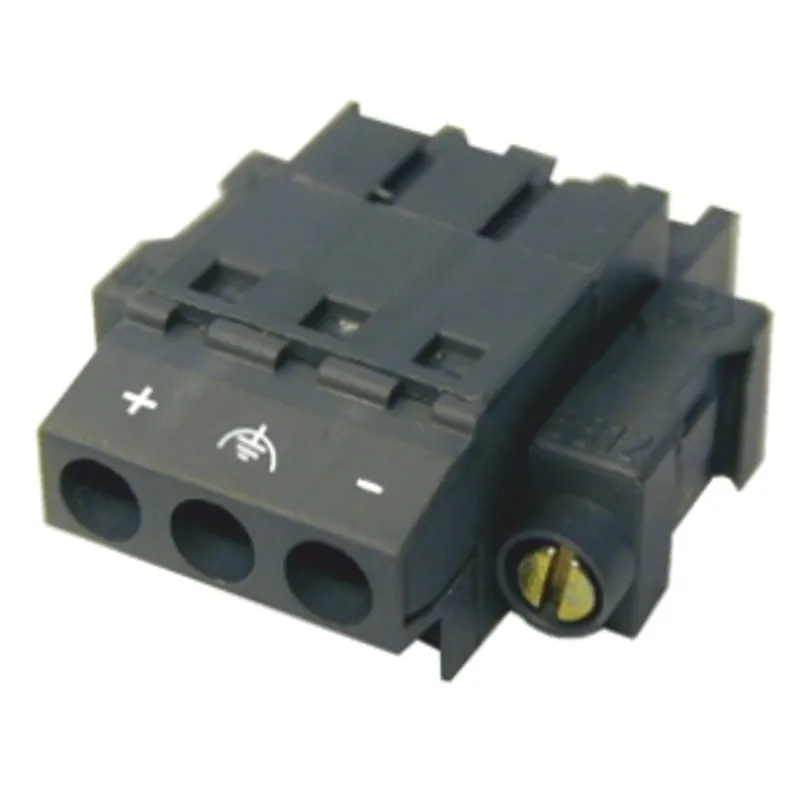

B&R 0TB103.9

One-row 3-pin terminal block x is for the…

MPN: 0TB103.9
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 0TB103.9?

One-row 3-pin terminal block 0TB103.9x is used for the power supply.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.)
Certifications – CCS	Yes
Certifications – LR	ENV3
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck

Terminal block

Connection cross section – AWG wire	26 to 14 AWG
Connection cross section – Wire end sleeves with plastic covering	0.20 to 1.50 mm²
Connection cross section – Single-wire	0.20 to 2.50 mm²
Connection cross section – Fine-stranded wires	0.20 to 1.50 mm²
Connection cross section – With wire end sleeve	0.20 to 1.50 mm²
Note	Protected against vibration by the screw flange ; Nominal data per UL
Number of pins	3 (female)
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Pitch	5.08 mm
Tightening torque	0.4 Nm

Electrical properties

Nominal voltage	150 V
Nominal current	13 A / contact (note: The respective limit data of the I/O modules must be taken into account!)
Contact resistance	≤5 mΩ

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file STP 0TB103.9ZIP · 185 KB · 1.00 (02/22/2021)

Certificates (2)
