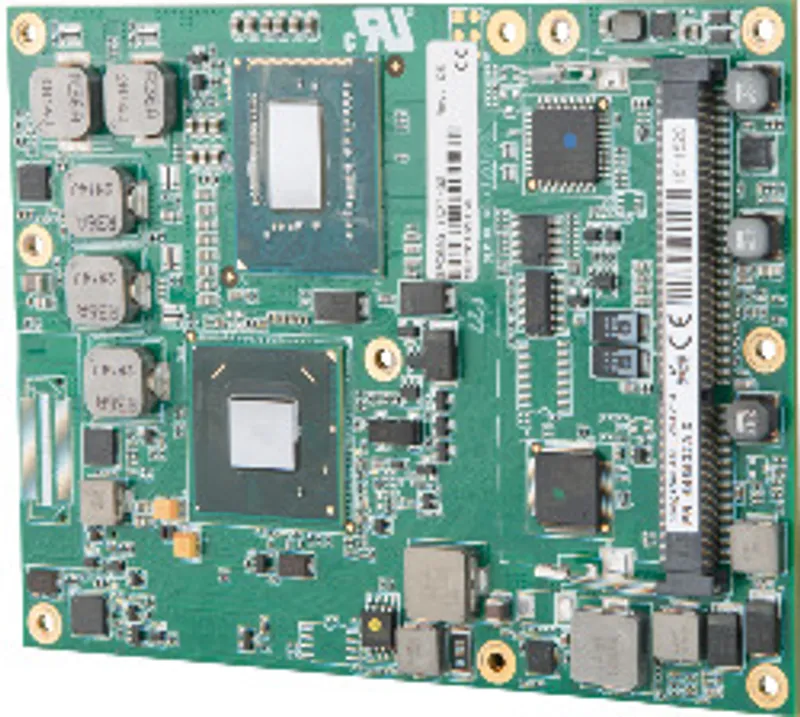

B&R 5PC901.TS77-08
Intel Celeron 827E 1.4 GHz
- MPN
- 5PC901.TS77-08
- Category
- CPU boards
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5PC901.TS77-08?
Intel Celeron 827E 1.4 GHz
Intel HM76 chipset
2x DDR3 memory slot
Intel HD Graphics 2000
AMI BIOS (UEFI)
CPU board Intel Celeron 827E 1.4 GHz - Single core - HM76 chipset - For Panel PC 900
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 4 years (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%. If an SRAM interface option is installed, the service life is 2½ years.) |
| Battery – Removable | Yes, on the back of the Panel PC |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T3C (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| LEDs | Power, HDD, Link, Run |
| B&R ID code | 0xDFCE |
| Cooling | Passive via heat sink |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
Controller
| Processor – Type | Intel Celeron 827E |
| Processor – Clock frequency | 1400 MHz |
| Processor – Number of cores | 1 |
| Processor – Architecture | 32 nm |
| Processor – Intel Smart Cache | 1.5 MB |
| Processor – External bus | DMI, 5 GT/s |
| Processor – Intel 64 architecture | Yes |
| Processor – Intel Turbo Boost Technology | No |
| Processor – Intel Hyper-Threading Technology | No |
| Processor – Intel Virtualization Technology (VT-x) | Yes |
| Processor – Enhanced Intel SpeedStep Technology | Yes |
| Real-time clock – Accuracy | At 25°C: Typ. 12 ppm (1 second) per day (note: At max. specified ambient temperature: Typ. 58 ppm (5 seconds) - worst case 220 ppm (19 seconds).) |
| Real-time clock – Battery-backed | Yes |
| Power failure logic – Controller | MTCX (note: Maintenance Controller Extended) |
| Power failure logic – Buffer time | 10 ms |
| Memory slot – Number of memory channels | 2 |
| Memory slot – Type | DDR3 |
| Memory slot – Memory size | Max. 16 GB |
| Memory slot – Max. memory bandwidth | 21.3 GB/s |
| Graphics – DVI | Resolution up to 1920 x 1200 (WUXGA) |
| Graphics – RGB | 350 MHz RAMDAC, resolution up to 2048 x 1536 @ 75 Hz (QXGA) |
| Graphics – Controller | Intel HD Graphics 2000 |
| Graphics – Max. dynamic graphics frequency | 800 MHz |
| Graphics – Color depth | Max. 32-bit |
| Bootloader | BIOS |
| Chipset | Intel HM76 |
| Mass memory management | 3x SATA |
| Power management | ACPI 4.0 with battery support |
Interfaces
| COM1 – Type | RS232, modem supported, not galvanically isolated |
| COM1 – Variant | DSUB, 9-pin, male |
| COM1 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM1 – Max. baud rate | 115 kbit/s |
| COM2 – Type | RS232, modem supported, not galvanically isolated |
| COM2 – Variant | DSUB, 9-pin, male |
| COM2 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM2 – Max. baud rate | 115 kbit/s |
| CFast slot – Quantity | 1 |
| CFast slot – Type | SATA III (SATA 6.0 Gbit/s) |
| USB – Quantity | 4 |
| USB – Type | USB 3.0 (on bottom) |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s), high speed (480 Mbit/s) to SuperSpeed (5 Gbit/s) (note: The SuperSpeed transfer rate (5 Gbit/s) is only possible with USB 3.0.) |
| USB – Current-carrying capacity | Max. 1 A per connection |
| Ethernet – Quantity | 2 |
| Ethernet – Variant | RJ45, shielded |
| Ethernet – Transfer rate | 10/100/1000 Mbit/s |
| Ethernet – Max. baud rate | 1 Gbit/s |
| Panel/Monitor interface – Variant | DVI-I |
| Panel/Monitor interface – Type | SDL/DVI/Monitor |
| Audio – Type | HDA |
| Audio – Controller | Realtek RTL888 |
| Audio – Inputs | Microphone, Line In |
| Audio – Outputs | Line Out |
Slots
| Slide-in compact drives – Quantity | 1 |
| Slide-in compact drives – Type | SATA III (SATA 6.0 Gbit/s) |
| Interface option | 2 |
| Add-on UPS slot | Yes (note: The UPS module can only be operated in the IF option 1 slot.) |
| Slot for fan kit | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25%+24 VDC power supply" in the user's manual."> (note: EN 60950 requirements must be observed; see section) |
| Nominal current | 5.5 A |
| Inrush current | Max. 60 A for < 300 μs |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
Ambient conditions
| Elevation – Operation | Max. 3000 m (component-dependent) (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
Mechanical properties
| Weight | Approx. 450 g |
Accessories
Required accessories (order separately)
| 5MMDDR.8192-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 8192 MB SO-DIMM DDR3, 8192 MB |
| 5MMDDR.4096-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 4096 MB SO-DIMM DDR3, 4096 MB |
| 5MMDDR.2048-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 2048 MB SO-DIMM DDR3, 2048 MB |
| 5MMDDR.1024-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 1024 MB SO-DIMM DDR3, 1024 MB |
