B&R 5MMDDR.4096-03

DDR3 SDRAM according to PC3-1280064-bit data width1600…

MPN: 5MMDDR.4096-03
Category: Main memory

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

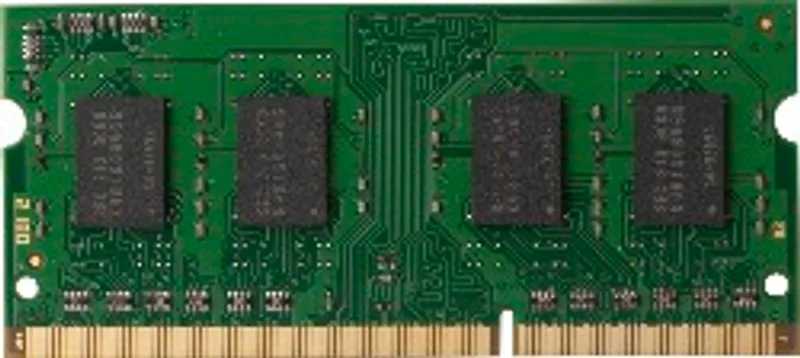

What is the B&R 5MMDDR.4096-03?

DDR3 SDRAM according to PC3-12800

64-bit data width

1600 MHz

4096 MB

SO-DIMM DDR3, 4096 MB

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T3C (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.)
Certifications – KR	Yes

Controller

Memory – Type	SO-DIMM DDR3 SDRAM
Memory – Memory size	4 GB
Memory – Construction	204-pin
Memory – Organization	512M x 64-bit
Memory – Velocity	DDR3-1600 (PC3-12800)

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

5MMDDR.4096-03: frequently asked questions

When can 5MMDDR.4096-03 be shipped?

5MMDDR.4096-03 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5MMDDR.4096-03 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5MMDDR.4096-03 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5MMDDR.4096-03, subject to availability and destination.
