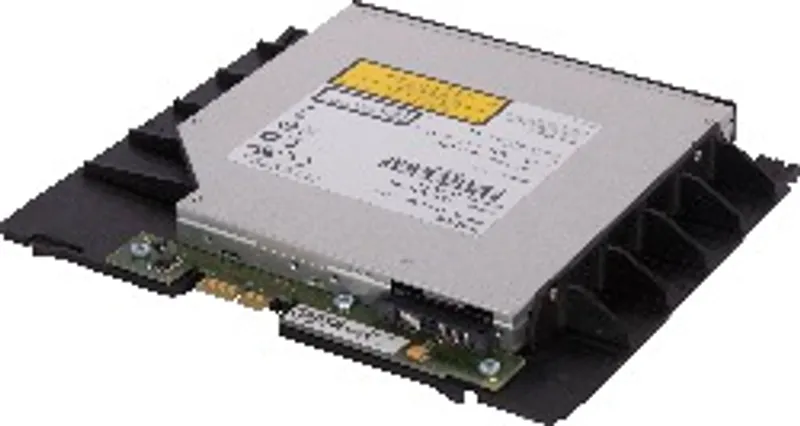

B&R 5AC901.SDVW-00
DVD-R/RW, DVD+R/RW drive; Slide-in The DVD-R/RW slide-in drive can be used in APC910 system units and PPC900…
- MPN
- 5AC901.SDVW-00
- Category
- Drives
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AC901.SDVW-00?
DVD-R/RW, DVD+R/RW drive
Slide-in
The DVD-R/RW slide-in drive can be used in APC910 system units and PPC900 bus units with a slide-in drive slot.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Non-compliant |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T3C (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV3 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
CD/DVD drive
| Startup time – CD | Max. 14 seconds (from 0 rpm to read operation) |
| Startup time – DVD | Max. 15 seconds (from 0 rpm to read operation) |
| Access time – CD | On average 140 ms (24x) |
| Access time – DVD | On average 150 ms (8x) |
| Readable media – CD | CD/CD-ROM (12 cm, 8 cm), CD-R, CD-RW |
| Readable media – DVD | DVD-ROM, DVD-R, DVD-R (dual layer), DVD-RW. DVD-RAM, DVD+R, DVD+R (dual layer), DVD+RW, DVD-RAM |
| Writable media – CD | CD-R, CD-RW |
| Writable media – DVD | DVD-R/RW, DVD-R (dual layer), DVD-RAM (4.7 GB), DVD+R/RW, DVD+R (dual layer) |
| Read speed – CD | 24x |
| Read speed – DVD | 8x |
| Write speed – CD-R | 24x, 16x, 10x and 4x |
| Write speed – CD-RW | 24x, 16x, 10x and 4x |
| Write speed – DVD+R | 8x, 4x and 2.4x |
| Write speed – DVD+R (dual layer) | 6x, 4x and 2.4x |
| Write speed – DVD+RW | 4x and 2x |
| Write speed – DVD-R | 8x, 4x and 2x |
| Write speed – DVD-R (dual layer) | 6x, 4x and 2x |
| Write speed – DVD-RAM | 5x, 3x and 2x (note: RAM drivers are not provided by the manufacturer. Support for the RAM function by burning software packages or drivers from third-party suppliers.) |
| Write speed – DVD-RW | 6x, 4x and 2x |
| Write methods – CD | Disk at once, session at once, packet write, track at once |
| Write methods – DVD | Disk at once, incremental, overwrite, sequential, multi-session |
| Data buffer capacity | 2 MB |
| Data transfer rate | Max. 33.3 MB/s |
| Speed | Max. 5160 rpm ±1% |
| Noise level | Approx. 45 dBA at a distance of 50 cm (full read access) |
| Compatible formats | CD-DA, CD-ROM mode 1 / mode 2; CD-ROM XA mode 2 (form 1, form 2) ; Photo CD (single-/multi-session), enhanced CD, CD text ; DVD-ROM, DVD-R, DVD-R (dual layer), DVD-RW, DVD video; DVD-RAM (4.7 GB, 2.6 GB) ; DVD+R, DVD+R (dual layer), DVD+RW |
| Laser class | Class 1 laser |
| Service life | 60,000 POH (power-on hours) |
| Interface | SATA |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Ambient conditions
| Temperature – Operation | 5 to 55°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
| Temperature – Storage | -20 to 60°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
| Temperature – Transport | -40 to 65°C (note: The temperature specifications correspond to a specification at 500 meters. The max. ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
| Relative humidity – Operation | 8 to 80%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
| Vibration – Operation | 5 to 500 Hz: 0.2 g |
| Vibration – Storage | 5 to 500 Hz: 2 g |
| Vibration – Transport | 5 to 500 Hz: 2 g |
| Shock – Operation | At max. 5 g and 11 ms duration |
| Shock – Storage | At max. 60 g and 11 ms duration; At max. 200 g and 2 ms duration |
| Shock – Transport | At max. 60 g and 11 ms duration; At max. 200 g and 2 ms duration |
Mechanical properties
| Dimensions – Width | 22 mm |
| Dimensions – Height | 172.5 mm |
| Dimensions – Depth | 150 mm |
| Weight | 400 g |
