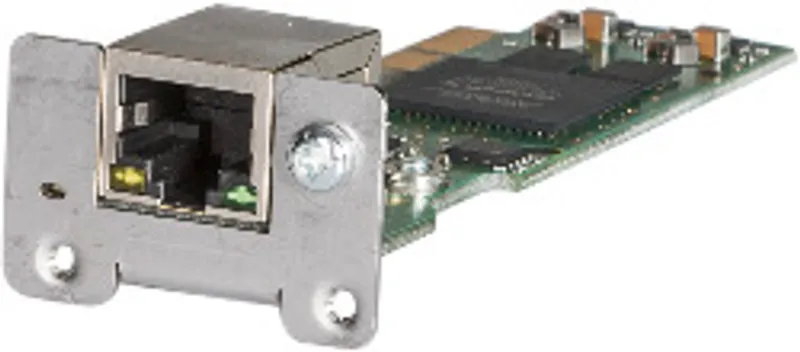

B&R 5AC901.IPLK-00
1x POWERLINK interface managing or controlled node2 MB…
- MPN
- 5AC901.IPLK-00
- Category
- Interface options
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5AC901.IPLK-00?
1x POWERLINK interface managing or controlled node
2 MB SRAM
Compatible with APC910/PPC900 and APC3100/PPC3100
Interface card - 1x POWERLINK interface - 2 MB SRAM - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100
Specifications
General information
| Diagnostics – Data transfer | Yes, using LED status indicator |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV3 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
| B&R ID code | 0xE025 |
Controller
| SRAM – Size | 2 MB |
| SRAM – Battery-backed | Yes (backup battery of the system unit) |
| SRAM – Remanent variables in power failure mode | 256 kB (for e.g. Automation Runtime, see Automation Help) |
Interfaces
| POWERLINK – Quantity | 1 |
| POWERLINK – Type | Type 4 (note: For additional information, see Automation Help (Communication - POWERLINK - General information - Hardware - IF / LS).) |
| POWERLINK – Variant | RJ45, shielded |
| POWERLINK – Transfer rate | 100 Mbit/s |
| POWERLINK – Transfer | 100BASE-TX |
| POWERLINK – Line length | Max. 100 m between two stations (segment length) |
Electrical properties
| Power consumption | 1.5 W |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Ambient conditions
| Temperature – Operation | 0 to 55°C (note: For detailed information, see the temperature tables in the user's manual.) |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | 5 to 90%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Weight | Approx. 35 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5AC901.IPLK-00: frequently asked questions
When can 5AC901.IPLK-00 be shipped?
5AC901.IPLK-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AC901.IPLK-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AC901.IPLK-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AC901.IPLK-00, subject to availability and destination.
