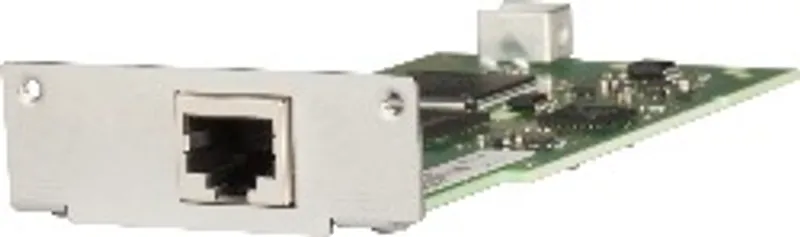

B&R 5AC901.LSD4-00

Graphics option, 1x SDL4 transmitter (max. 1920 x 1080)

MPN: 5AC901.LSD4-00
Category: Monitor/Panel options

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5AC901.LSD4-00?

Graphics option - 1x SDL4 transmitter (max. 1920 x 1080) - For APC910

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E115267; Industrial control equipment
LEDs	Status, Link
B&R ID code	0xECCE

Interfaces

SDL4 Out – Variant	RJ45, shielded
SDL4 Out – Type	SDL4

Electrical properties

Power consumption

4.5 W

Ambient conditions

Temperature – Operation	0 to 55°C (note: For detailed information, see the temperature tables in the user's manual.)
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Weight

Approx. 47 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Automation PC 910 User's ManualPDF · 101 MB · 2.13 (08/22/2022) - EN

CAD & dimension drawings
