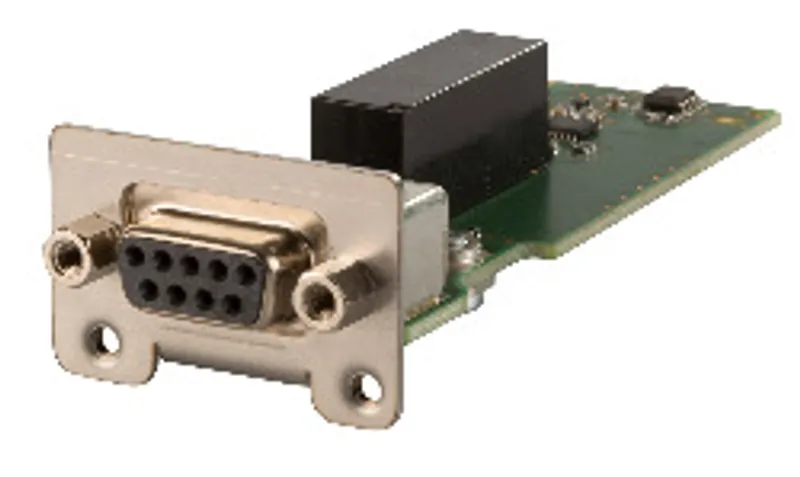

B&R 5AC901.ISIO-00

Connections for the reset button and power buttons on the PC

MPN: 5AC901.ISIO-00
Category: Interface options

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5AC901.ISIO-00?

Connections for the reset button and power buttons on the PC

Connection for LED "Power" on the PC

1 normally closed contact, 1 normally open contact of the ready relay

Control of the ready relay functions using MTCX commands

Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100

The ready relay function of IF option 5AC901.ISIO-00 can be controlled using the MTCX. Corresponding commands must be issued by the MTCX in order to switch the ready relay.

In addition to the ready relay function, the reset and power button as well as the power LED of a B&R PC can be routed externally.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.)
Certifications – CCS	Yes
Certifications – LR	ENV3
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck
B&R ID code	0xE674
Ready relay	Normally open contact and normally closed contact, max. 30 VDC, max. 1 A

Electrical properties

Power consumption

0.5 W

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Ambient conditions

Temperature – Operation	0 to 60°C (note: For detailed information, see the temperature tables in the user's manual.)
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Weight

Approx. 30 g
