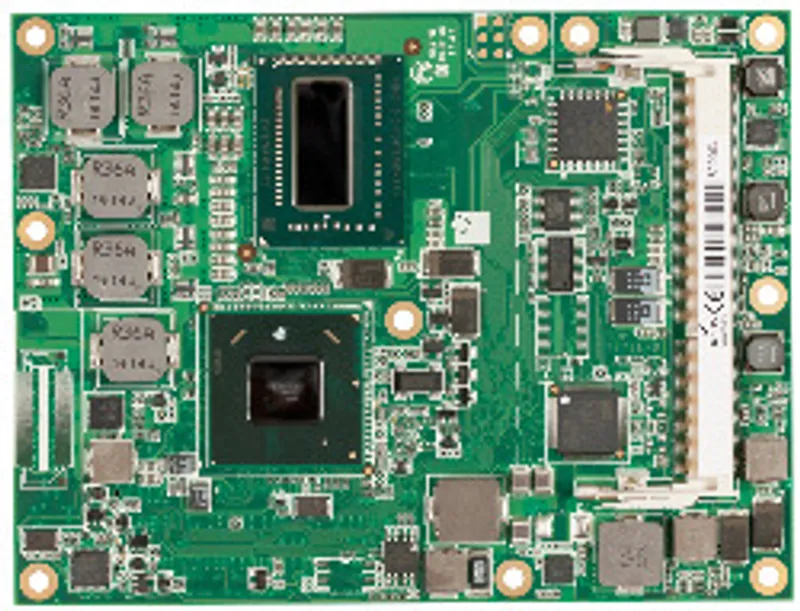

B&R 5PC900.TS17-04

CPU board Intel Core i7 6820EQ, Quad core, QM170 chipset

MPN: 5PC900.TS17-04
Category: CPU boards

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5PC900.TS17-04?

CPU board Intel Core i7 6820EQ - Quad core - QM170 chipset - 2.8 GHz active - For APC910

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV3
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck

Controller

Processor – Type	Intel Core i7-6820EQ
Processor – Clock frequency	2800 MHz
Processor – Total number of cores	4
Processor – Architecture	14 nm
Processor – Thermal design power (TDP)	45 W
Processor – Intel Smart Cache	8 MB
Processor – External bus	DMI3, 8 GT/s
Processor – Intel 64 architecture	Yes
Processor – Intel Turbo Boost Technology	2.0
Processor – Intel Hyper-Threading Technology	Yes
Processor – Intel vPro Technology	Yes
Processor – Intel Virtualization Technology (VT-x)	Yes
Processor – Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Processor – Enhanced Intel SpeedStep Technology	Yes
Real-time clock – Accuracy	At 25°C: Typ. 12 ppm (1 second) per day (note: At max. specified ambient temperature: Typ. 58 ppm (5 seconds) - worst case 220 ppm (19 seconds).)
Real-time clock – Battery-backed	Yes
Memory slot – Number of memory channels	2
Memory slot – Type	DDR4
Memory slot – Memory size	Max. 32 GB
Memory slot – Max. memory bandwidth	34.1 GB/s
Graphics – DVI	Resolution up to 1920 x 1200 (WUXGA)
Graphics – RGB	350 MHz RAMDAC, resolution up to 2048 x 1536 @ 75 Hz (QXGA)
Graphics – DisplayPort	Version 1.2, resolution up to 4K
Graphics – Controller	Intel HD Graphics 530
Graphics – Max. dynamic graphics frequency	1 GHz
Graphics – Color depth	Max. 32-bit
Graphics – DirectX support	12
Graphics – OpenGL support	4.4
Bootloader	Embedded AMI BIOS
Chipset	Intel QM170
Trusted Platform Module (TPM)	TPM 2.0
Mass memory management	4x SATA
Power management	ACPI 5.0 with battery support

Support

Software – Automation Studio

Yes

Operating conditions

Pollution degree per EN 61131-2

Pollution degree 2

Accessories

Required accessories (order separately)

5AC901.HS00-01	Heat sink — APC910 active heat sink QM170/HM170
5MMDDR.8192-04	Main memory — SO-DIMM DDR4, 8192 MB
5MMDDR.4096-04	Main memory — SO-DIMM DDR4, 4096 MB
5MMDDR.016G-04	Main memory — SO-DIMM DDR4, 16384 MB

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Certificates (1)

CCS Type Approval Certificate - Automation PCs, Panel PCs and PanelsPDF · 471 KB · 2.00 (01/15/2026)
