B&R 5AC901.BX02-01
1 PCI and 1 PCIe slotPCI and PCIe half-size card can be…
- MPN
- 5AC901.BX02-01
- Category
- Bus units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

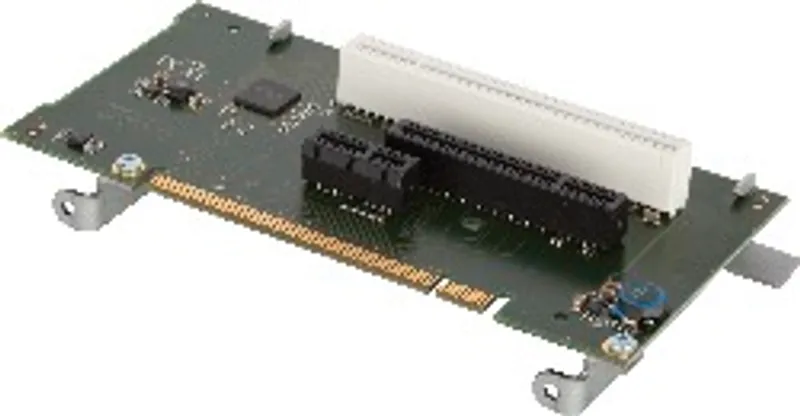

What is the B&R 5AC901.BX02-01?
1 PCI and 1 PCIe slot
PCI and PCIe half-size card can be inserted
APC910 with 2-slot bus - 1 PCI - 1 PCI Express x8
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Non-compliant |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV3 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
Slots
| PCI slots – Quantity | 1 |
| PCI slots – Type | 32-bit |
| PCI slots – Variant | PCI half-size |
| PCI slots – Standard | 2.2 |
| PCI slots – Bus speed | 33 MHz |
| PCI slots – PCIe to PCI bridge | Yes |
| PCIe slots – Quantity | 1 |
| PCIe slots – Variant | PCIe half-size |
| PCIe slots – Standard | 2.0 |
| PCIe slots – Bus speed | x8 (4 GB/s) |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
5AC901.BX02-01: frequently asked questions
When can 5AC901.BX02-01 be shipped?
5AC901.BX02-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5AC901.BX02-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5AC901.BX02-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5AC901.BX02-01, subject to availability and destination.
