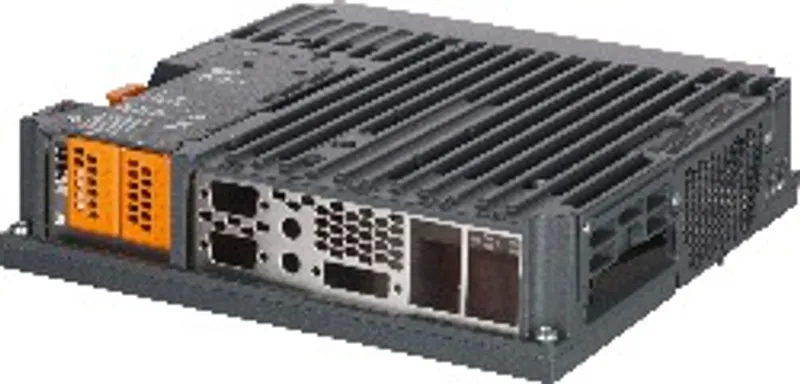

B&R 5PC911.SX00-01
The passive Panel PC 900 system unit consists of a housing…
- MPN
- 5PC911.SX00-01
- Category
- System units
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R 5PC911.SX00-01?
The passive Panel PC 900 system unit consists of a housing and heat sink. A CPU board, main memory, IF options and slide-in compact drive are installed in the system unit.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T3C (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| Cooling | Passive via heat sink |
Mechanical properties
| Housing – Material | Aluminum, Light metal die casting |
| Housing – Coating | Anthracite |
| Dimensions – Width | 225 mm |
| Dimensions – Height | 226 mm |
| Dimensions – Depth | 54 mm |
| Weight | Approx. 2821 g |
No matching specifications
Accessories
Required accessories (order separately)
| 5PC901.TS77-10 | CPU boards — Intel Celeron 1047UE 1.4 GHz; Intel HM76 chipset; 2x DDR3 memory slot; Intel HD Graphics 2500; AMI BIOS (UEFI) CPU board Intel Celeron 1047… |
| 5PC901.TS77-09 | CPU boards — Intel Celeron 1020E 2.2 GHz; Intel HM76 chipset; 2x DDR3 memory slot; Intel HD Graphics 2500; AMI BIOS (UEFI) CPU board Intel Celeron 1020E… |
| 5PC901.TS77-08 | CPU boards — Intel Celeron 827E 1.4 GHz; Intel HM76 chipset; 2x DDR3 memory slot; Intel HD Graphics 2000; AMI BIOS (UEFI) CPU board Intel Celeron 827E 1… |
| 5PC901.TS77-07 | CPU boards — Intel Celeron 847E 1.1 GHz; Intel HM76 chipset; 2x DDR3 memory slot; Intel HD Graphics 2000; AMI BIOS (UEFI) CPU board Intel Celeron 847E 1… |
| 5PC901.TS77-06 | CPU boards — Intel Core i3-3217UE 1.6 GHz; Intel QM77 chipset; 2x DDR3 memory slot; Intel HD Graphics 4000; AMI BIOS (UEFI) CPU board Intel Core i3 3217… |
| 5PC901.TS77-05 | CPU boards — Intel Core i3-3120ME 2.4 GHz; Intel QM77 chipset; 2x DDR3 memory slot; Intel HD Graphics 4000; AMI BIOS (UEFI) CPU board Intel Core i3 3120… |
| 5PC901.TS77-04 | CPU boards — Intel Core i5-3610ME 2.7 GHz; Intel QM77 chipset; 2x DDR3 memory slot; Intel HD Graphics 4000; AMI BIOS (UEFI) CPU board Intel Core i5 3610… |
| 5PC901.TS77-03 | CPU boards — Intel Core i7-3517UE 1.7 GHz; Intel QM77 chipset; 2x DDR3 memory slot; Intel HD Graphics 4000; AMI BIOS (UEFI) CPU board Intel Core i7 3517… |
| 5PC901.TS77-01 | CPU boards — Intel Core i7-3612QE 2.1 GHz; Intel QM77 chipset; 2x DDR3 memory slot; Intel HD Graphics 4000; AMI BIOS (UEFI) CPU board Intel Core i7 3612… |
| 5PC901.TS17-03 | CPU boards — CPU board Intel Celeron G3900E - Dual core - HM170 chipset - 2.4 GHz active, 1.7 GHz passive - For Panel PC 900 |
| 5PC901.TS17-02 | CPU boards — CPU board Intel Core i3 6100E - Dual core - HM170 chipset - 2.7 GHz active, 1.9 GHz passive - For Panel PC 900 |
| 5PC901.TS17-01 | CPU boards — CPU board Intel Core i5 6440EQ 2.7 GHz - Quad core - QM170 chipset - For Panel PC 900 |
| 5PC901.TS17-00 | CPU boards — CPU board Intel Core i7 6820EQ 2.8 GHz - Quad core - QM170 chipset - For Panel PC 900 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5PC911.SX00-01: frequently asked questions
When can 5PC911.SX00-01 be shipped?
5PC911.SX00-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PC911.SX00-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PC911.SX00-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PC911.SX00-01, subject to availability and destination.
