Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Guide rail mounting | Guide rail cover | Max. length Lmax [mm] | Minimum length Lmin [mm] | Number of sections |
|---|---|---|---|---|---|

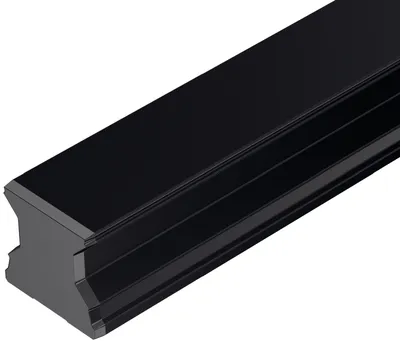

| R184761348 | For bolting from below | Without cover strip | 3971.0 | 190.0 | 8-piece |
| R184761347 | For bolting from below | Without cover strip | 3971.0 | 190.0 | 7-piece |
| R184761346 | For bolting from below | Without cover strip | 3971.0 | 190.0 | 6-piece |
| R184761345 | For bolting from below | Without cover strip | 3971.0 | 190.0 | 5-piece |
| R184761344 | For bolting from below | Without cover strip | 3971.0 | 190.0 | 4-piece |
| R184761343 | For bolting from below | Without cover strip | 3971.0 | 190.0 | 3-piece |
| R184761342 | For bolting from below | Without cover strip | 3971.0 | 190.0 | 2-piece |
| R184761341 | For bolting from below | Without cover strip | 3971.0 | 190.0 | 1-piece |
| R184562378 | For bolting from above | With cover strip and strip clamps | — | 192.0 | 8-piece |
| R184562377 | For bolting from above | With cover strip and strip clamps | — | 192.0 | 7-piece |
| R184562376 | For bolting from above | With cover strip and strip clamps | — | 192.0 | 6-piece |
| R184562375 | For bolting from above | With cover strip and strip clamps | — | 192.0 | 5-piece |
| R184562374 | For bolting from above | With cover strip and strip clamps | — | 192.0 | 4-piece |
| R184562373 | For bolting from above | With cover strip and strip clamps | — | 192.0 | 3-piece |
| R184562372 | For bolting from above | With cover strip and strip clamps | — | 192.0 | 2-piece |

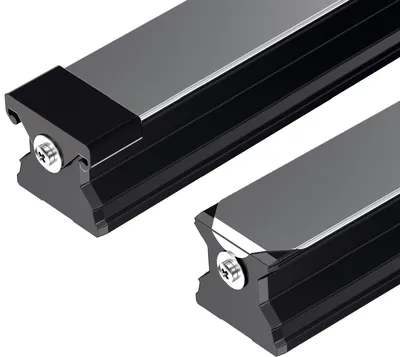

| R184562371 | For bolting from above | With cover strip and strip clamps | 5921.0 | 192.0 | 1-piece |
| R184561348 | For bolting from above | Plastic caps | 3971.0 | 190.0 | 8-piece |
| R184561347 | For bolting from above | Plastic caps | 3971.0 | 190.0 | 7-piece |
| R184561346 | For bolting from above | Plastic caps | 3971.0 | 190.0 | 6-piece |
| R184561345 | For bolting from above | Plastic caps | 3971.0 | 190.0 | 5-piece |
| R184561344 | For bolting from above | Plastic caps | 3971.0 | 190.0 | 4-piece |
| R184561343 | For bolting from above | Plastic caps | 3971.0 | 190.0 | 3-piece |
| R184561342 | For bolting from above | Plastic caps | 3971.0 | 190.0 | 2-piece |

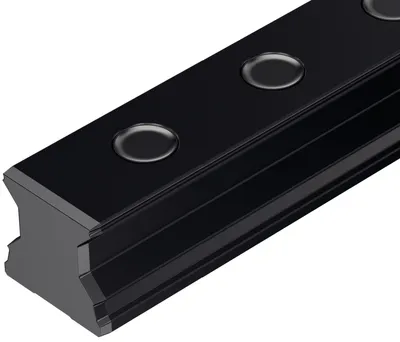

| R184561341 | For bolting from above | Plastic caps | 5921.0 | 190.0 | 1-piece |
Common to all listed parts
| Version | Roller rail systems |
| Nominal size [mm] | 65 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Hard chrome plated |
| Accuracy class | H - Highly accurate |
| Number of holes nB (profiled rail systems) | 53 |
| Mass m (kg/m) [kg/m] | 17.4 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
