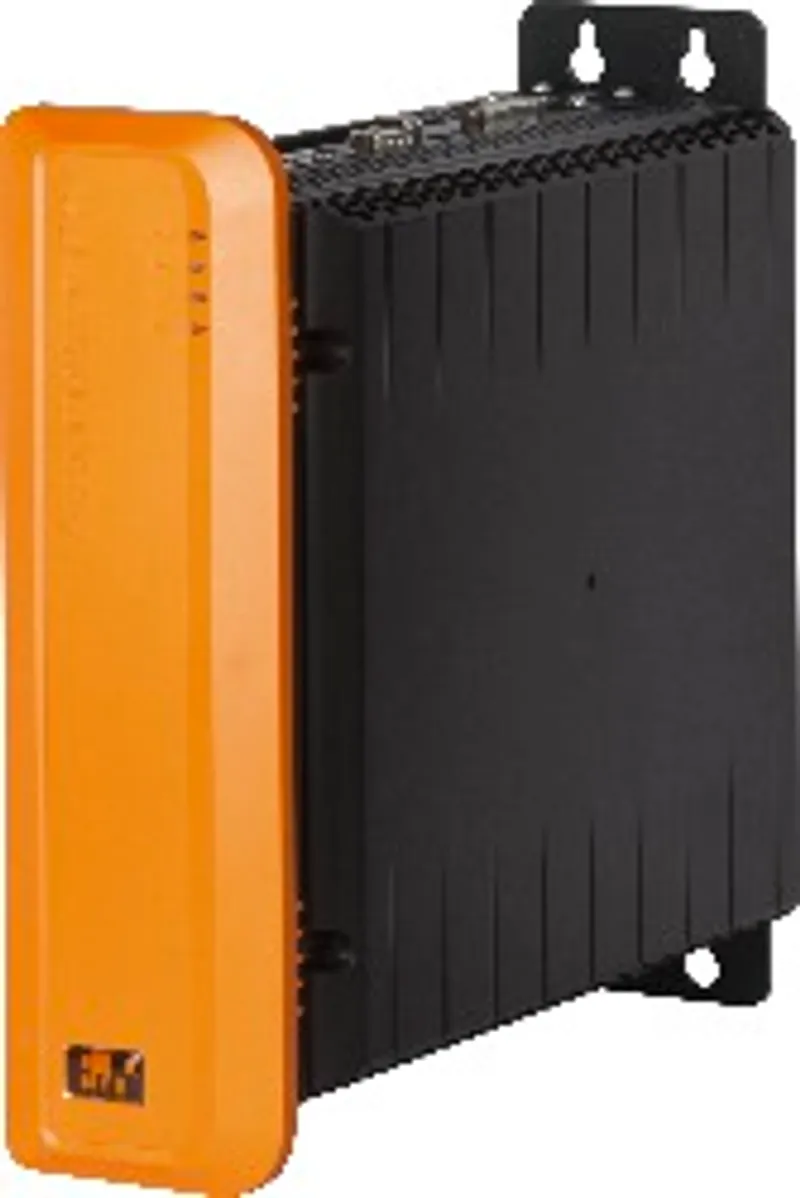

B&R 5PC910.SX01-00
Slot for a bus unit with 1 PCI or 1 PCIe slot
- MPN
- 5PC910.SX01-00
- Category
- System units
€1,058.94excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5PC910.SX01-00?
Slot for a bus unit with 1 PCI or 1 PCIe slot
Slot for 1 slide-in compact drive
Slot for 2 interface options
SDL/DVI/Monitor and DisplayPort interfaces
CFast slot
1-slot APC910 system unit
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 4 years (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%. If an interface option with SRAM or POWERLINK is installed, the service life is 2½ years.) |
| Battery – Removable | Yes, accessible behind the front cover |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Non-compliant |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)tahoma, arial, helvetica, sans-serif"><SPAN style="font-size: 12px;">The display port has no DNV GL certification and is therefore not permitted for use in maritime environments.</SPAN></FONT>"> (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family. <FONT face=) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV3 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
| LEDs | Power, HDD, Link, Run |
| B&R ID code | 0xD6DA |
| Cooling | Passive via heat sink and optionally supported with an active fan kit |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
Controller
| Real-time clock – Battery-backed | Yes |
| Power failure logic – Controller | MTCX (note: Maintenance Controller Extended) |
| Power failure logic – Buffer time | 10 ms |
| Memory – Type | Depends on the CPU board being used |
| Memory – Memory size | Depends on the CPU board being used |
| Graphics – Controller | Depends on the CPU board being used |
| Bootloader | BIOS |
Interfaces
| COM1 – Type | RS232, modem supported, not galvanically isolated |
| COM1 – Variant | DSUB, 9-pin, male |
| COM1 – UART | 16550-compatible, 16-byte FIFO buffer |
| COM1 – Max. baud rate | 115 kbit/s |
| CFast slot – Quantity | 1 |
| CFast slot – Type | SATA III (SATA 6.0 Gbit/s) |
| USB – Quantity | 5 |
| USB – Type | 4x USB 3.0 (top); 1x USB 2.0 (front) |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s), high speed (480 Mbit/s) to SuperSpeed (5 Gbit/s) (note: The SuperSpeed transfer rate (5 Gbit/s) is only possible with USB 3.0.) |
| USB – Current-carrying capacity | Max. 1 A per connection |
| Ethernet – Quantity | 2 |
| Ethernet – Variant | RJ45, shielded |
| Ethernet – Transfer rate | 10/100/1000 Mbit/s |
| Ethernet – Max. baud rate | 1 Gbit/s |
| DisplayPort – Quantity | 1 |
| DisplayPort – Version | Depends on the CPU board being used |
| Panel/Monitor interface – Variant | DVI-I |
| Panel/Monitor interface – Type | SDL/DVI/Monitor |
Slots
| PCI/PCIe slots – Quantity | 1 PCI slot or 1 PCIe slot (note: The PCI and PCIe slots depend on bus units 5AC901.BX01-00 and 5AC901.BX01-01 used.) |
| Slide-in drives – Quantity | - |
| Slide-in compact drives – Quantity | 1 |
| Slide-in compact drives – Type | SATA III (SATA 6.0 Gbit/s) |
| Interface option | 2 |
| Monitor/Panel option | No |
| Add-on UPS slot | Yes (note: The UPS module can only be operated in the IF option 1 slot.) |
| Slot for fan kit | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25%, SELV+24 VDC power supply" of the user's manual."> (note: EN 60950 requirements must be observed; see section) |
| Nominal current | Max. 5.5 APower calculation" section). The inrush current must also be taken into account when selecting the power supply unit."> (note: Maximum current consumption (24 V / 130 W). This can vary depending on the configuration (see) |
| Inrush current | Max. 60 A for < 300 μs |
| Overvoltage category per EN 61131-2 | II |
| Galvanic isolation | Yes |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
| Degree of protection per EN 60529 | IP20 (note: Only when all interface covers and the front cover are installed.) |
Ambient conditions
| Temperature – Operation | Component-dependent (note: For detailed information, see the temperature tables in the user's manual.) |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | Component-dependent |
| Relative humidity – Storage | Component-dependent |
| Relative humidity – Transport | Component-dependent |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g (note: Maximum values unless specified otherwise by another individual component. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g (note: Maximum values unless specified otherwise by another individual component. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g (note: Maximum values unless specified otherwise by another individual component. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g (note: Maximum values unless specified otherwise by another individual component. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Shock – Operation | 15 g, 11 ms (note: Maximum values unless specified otherwise by another individual component. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Shock – Storage | 30 g, 6 ms (note: Maximum values unless specified otherwise by another individual component. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Shock – Transport | 30 g, 6 ms (note: Maximum values unless specified otherwise by another individual component. Vibration testing is performed per EN 60068-2-6. Shock testing is performed per EN 60068-2-27.) |
| Elevation – Operation | -300 to 3000 m above sea level (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
Mechanical properties
| Housing – Material | Galvanized plate, plastic (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Housing – Coating | Anthracite gray (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 91 mm |
| Dimensions – Height | 270 mm |
| Dimensions – Depth | 254.75 mm |
| Weight | 2050 g |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 5AC901.BX01-01 | Bus units — 1 PCIe slot; PCIe half-size card can be inserted APC910 with 1-slot bus - 1 PCI Express x8 |
| 5AC901.BX01-00 | Bus units — 1 PCI slot; PCI half-size card can be inserted APC910 with 1-slot bus - 1 PCI |
| 5PC900.TS17-04 | CPU boards — CPU board Intel Core i7 6820EQ - Quad core - QM170 chipset - 2.8 GHz active - For APC910 |
| 5PC900.TS17-03 | CPU boards — CPU board Intel Xeon E3-1515MV5 - Quad core - CM236 chipset - 2.8 GHz active - For APC910 |
| 5PC900.TS17-02 | CPU boards — CPU board Intel Celeron G3900E - Dual core - HM170 chipset - 2.4 GHz active, 1.7 GHz passive - For APC910 |
| 5PC900.TS17-01 | CPU boards — CPU board Intel Core i3 6100E - Dual core - HM170 chipset - 2.7 GHz active, 1.9 GHz passive - For APC910 |
| 5PC900.TS17-00 | CPU boards — CPU board Intel Core i5 6440EQ - Quad core - QM170 chipset - 2.7 GHz active - For APC910 |
| 5AC901.HS01-01 | Heat sink — APC910 passive heat sink QM170/HM170 |
| 5AC901.HS01-00 | Heat sink — The 5AC901.HS01-00 heat sink has cooling fins and heat pipes for improved heat dissipation. It is only used together with system units that… |
| 5AC901.HS00-02 | Heat sink — APC910 active heat sink CM236 |
| 5AC901.HS00-01 | Heat sink — APC910 active heat sink QM170/HM170 |
| 5AC901.HS00-00 | Heat sink — The 5AC901.HS00-00 heat sink has cooling fins and heat pipes for improved heat dissipation. It is only used together with system units that… |
| 5MMDDR.8192-04 | Main memory — SO-DIMM DDR4, 8192 MB |
| 5MMDDR.8192-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 8192 MB SO-DIMM DDR3, 8192 MB |
| 5MMDDR.4096-04 | Main memory — SO-DIMM DDR4, 4096 MB |
| 5MMDDR.4096-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 4096 MB SO-DIMM DDR3, 4096 MB |
| 5MMDDR.2048-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 2048 MB SO-DIMM DDR3, 2048 MB |
| 5MMDDR.1024-03 | Main memory — DDR3 SDRAM according to PC3-12800; 64-bit data width; 1600 MHz; 1024 MB SO-DIMM DDR3, 1024 MB |
| 5MMDDR.016G-04 | Main memory — SO-DIMM DDR4, 16384 MB |
Optional accessories (22)
| 5AC804.MFLT-00 | Accessories — Line filter 5AC804.MFLT-00 may be necessary to meet maritime requirements regarding conducted interference emissions in power supply line p… |
| 5AC901.CSSD-06 | Drives — 512 GB solid-state drive; MLC flash memory; S.M.A.R.T. support; Slide-in compact; SATA 3.1 compatible 5AC901.CSSD-0x slide-in compact solid… |
| 5AC901.CSSD-05 | Drives — 256 GB solid-state drive; MLC flash memory; S.M.A.R.T. support; Slide-in compact; SATA 3.1 compatible 5AC901.CSSD-0x slide-in compact solid… |
| 5AC901.CSSD-04 | Drives — 128 GB solid-state drive; MLC flash memory; S.M.A.R.T. support; Slide-in compact; SATA 3.1 compatible 5AC901.CSSD-0x slide-in compact solid… |
| 5AC901.CHDD-01 | Drives — 500 GB hard disk; Slide-in compact; Specified for 24-hour operation; S.M.A.R.T. support This 500 GB slide-in compact hard disk is specified… |
| 5AC901.CCFA-00 | Drives — CFast slot; Slide-in compact This CFast adapter is a slide-in compact adapter that allows a CFast card to be inserted and operated on a B&R… |
| 5AC901.FA01-00 | Fan kits — 3 fans for improved heat dissipation; Simple installation and removal This fan kit includes 3 fans for improving heat dissipation on 1-slot… |
| 5AC901.FF01-02 | Front covers — Front cover for 1-slot APC910 - Dark gray - Without logo |
| 5AC901.FF01-01 | Front covers — Front cover for 1-slot APC910 - Dark gray |
| 5AC901.FF01-00 | Front covers — Front cover for 1-slot APC910 - Orange |
| 5AC901.ISRM-00 | Interface options — 2 MB SRAM; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Interface option 5AC901.ISRM-00 is equipped with 2 MB SRAM. |
| 5AC901.ISIO-00 | Interface options — Connections for the reset button and power buttons on the PC; Connection for LED "Power" on the PC; 1 normally closed contact, 1 normally o… |
| 5AC901.IRDY-00 | Interface options — 1 normally closed contact, 1 normally open contact; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Ready relay 5AC901.IRDY-00 i… |
| 5AC901.IPLK-00 | Interface options — 1x POWERLINK interface managing or controlled node; 2 MB SRAM; Compatible with APC910/PPC900 and APC3100/PPC3100 Interface card - 1x POWERL… |
| 5AC901.IHDA-00 | Interface options — 1x MIC; 1x Line IN; 1x Line OUT; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Interface option 5AC901.IHDA-00 is equipped wit… |
| 5AC901.IETH-00 | Interface options — Interface card - 1x ETH 10/100/1000 - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100 |
| 5AC901.ICAN-01 | Interface options — Interface card - 1x CAN interface (SJA1000) - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100 |
| 5AC901.ICAN-00 | Interface options — 1x CAN bus master interface; Compatible with APC910/PPC900 and APC3100/PPC3100 Interface option 5AC901.ICAN-00 is equipped with a CAN bus m… |
| 5AC901.I485-00 | Interface options — 1x RS232/RS422/RS485 interface; Compatible with APC910/PPC900 and APC3100/PPC3100 Interface option 5AC901.I485-00 is equipped with an RS232… |
| 5AC901.I232-00 | Interface options — Interface card - 1x RS232 interface - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100 |
| 5AC901.IUPS-01 | Uninterruptible power supplies — UPS IF option 5AC901.IUPS-01 used together with battery unit 5AC901.BUPS-01 allows the B&R industrial PC to be switched off properly withou… |
| 5AC901.IUPS-00 | Uninterruptible power supplies — UPS IF option 5AC901.IUPS-00 used together with battery unit 5AC901.BUPS-00 allows the B&R industrial PC to be switched off properly withou… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (6)
- ABS Certificate of Product Design Assessment - Automation PCs
- BV Type Approval Certificate - Automation PCs
- CCS Type Approval Certificate - Automation PCs, Panel PCs and Panels
- DNV Type Approval Certificate - Automation PC 910
- DNV Type Approval Certificate - Automation PCs, Panel PCs and Panels
- Lloyds Register cLR22132129TA-1962056
5PC910.SX01-00: frequently asked questions
When can 5PC910.SX01-00 be shipped?
5PC910.SX01-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PC910.SX01-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PC910.SX01-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PC910.SX01-00, subject to availability and destination.
