Braided hose and fittings Parts

Danfoss

1AA10FJ10C

HOSE FTG, 1A/10, JIC-F/10, AP, STR

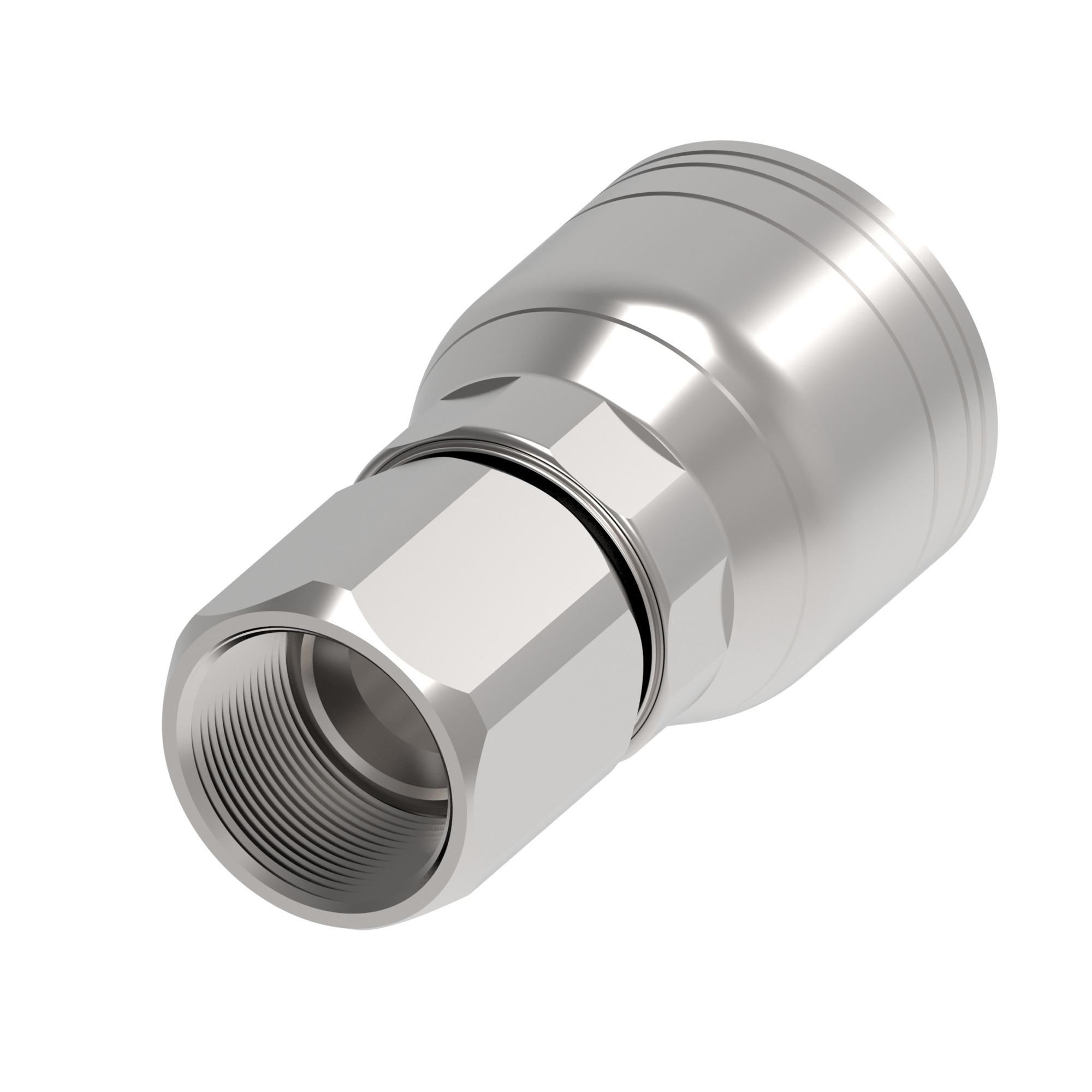

Danfoss

1AA10FJ10

HOSE FTG, 1A/10, JIC-F/10, CS, STR

Danfoss

1AA10DLB6C

HOSE FTG, 1A/06, DKOL/10, AP, 90D

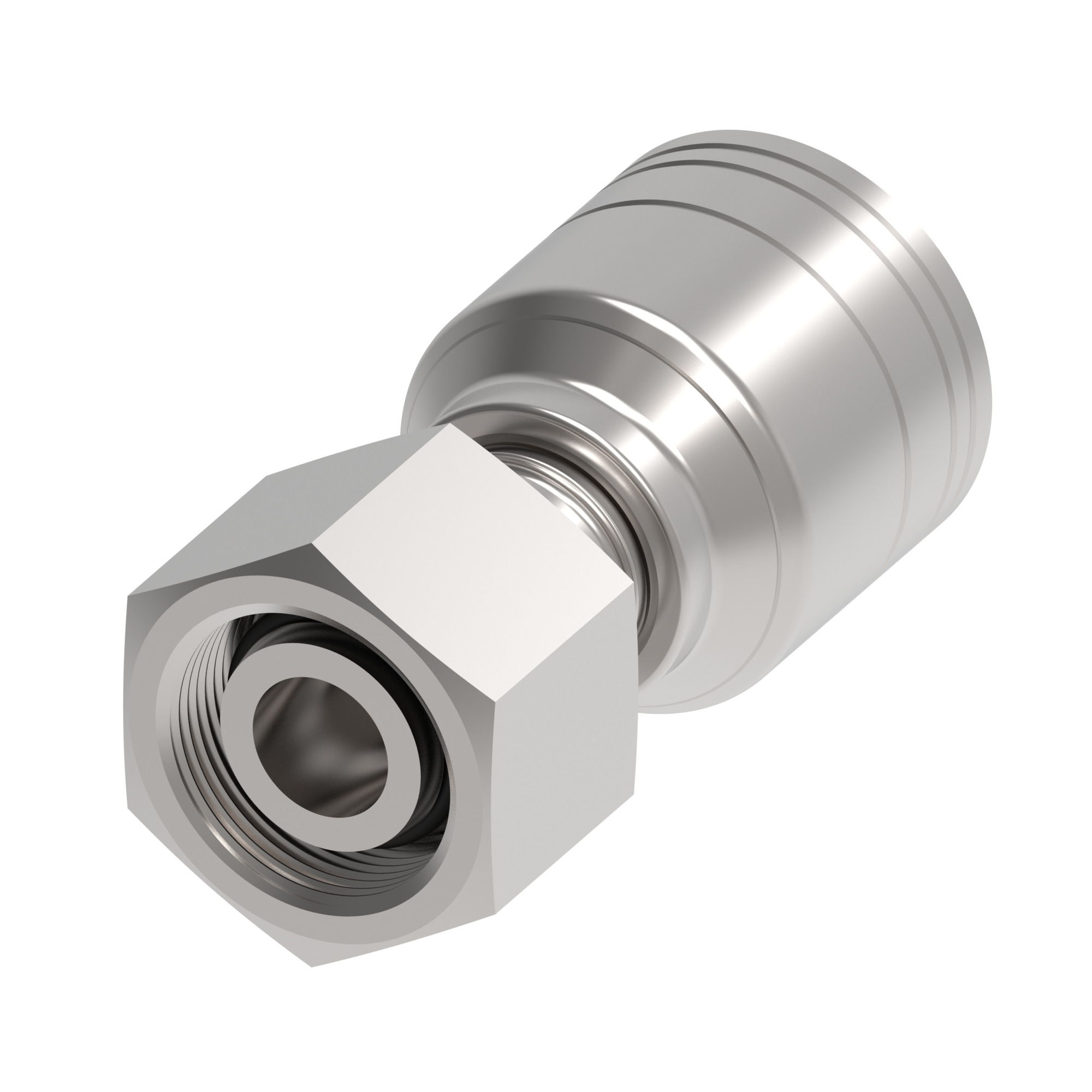

Danfoss

1AA10DL6C

HOSE FTG, 1A/06, DKOL/10, AP, STR

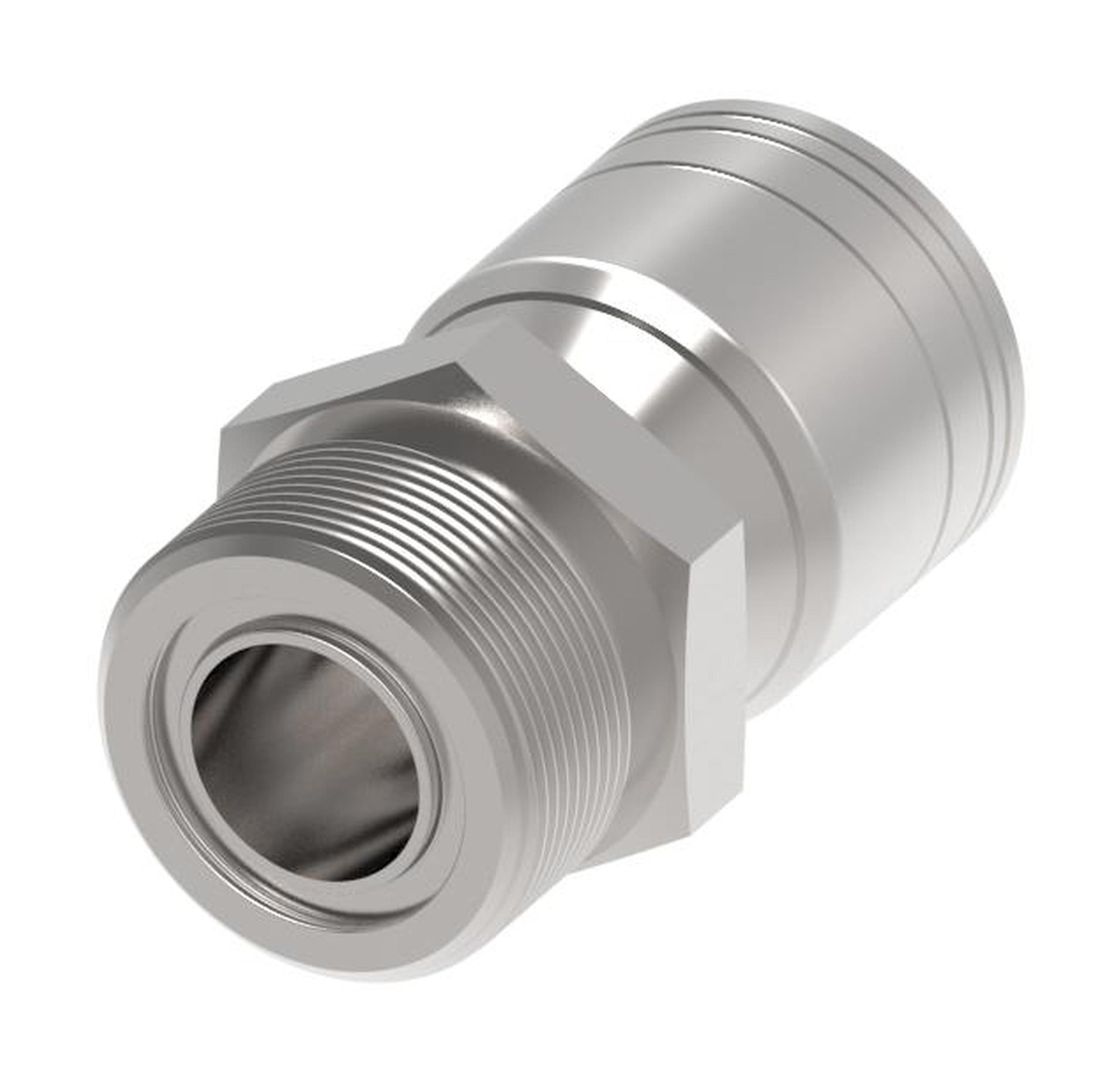

Danfoss

1A8MR8

HOSE FTG, 1A/08, ORS-M/08, CS, STR

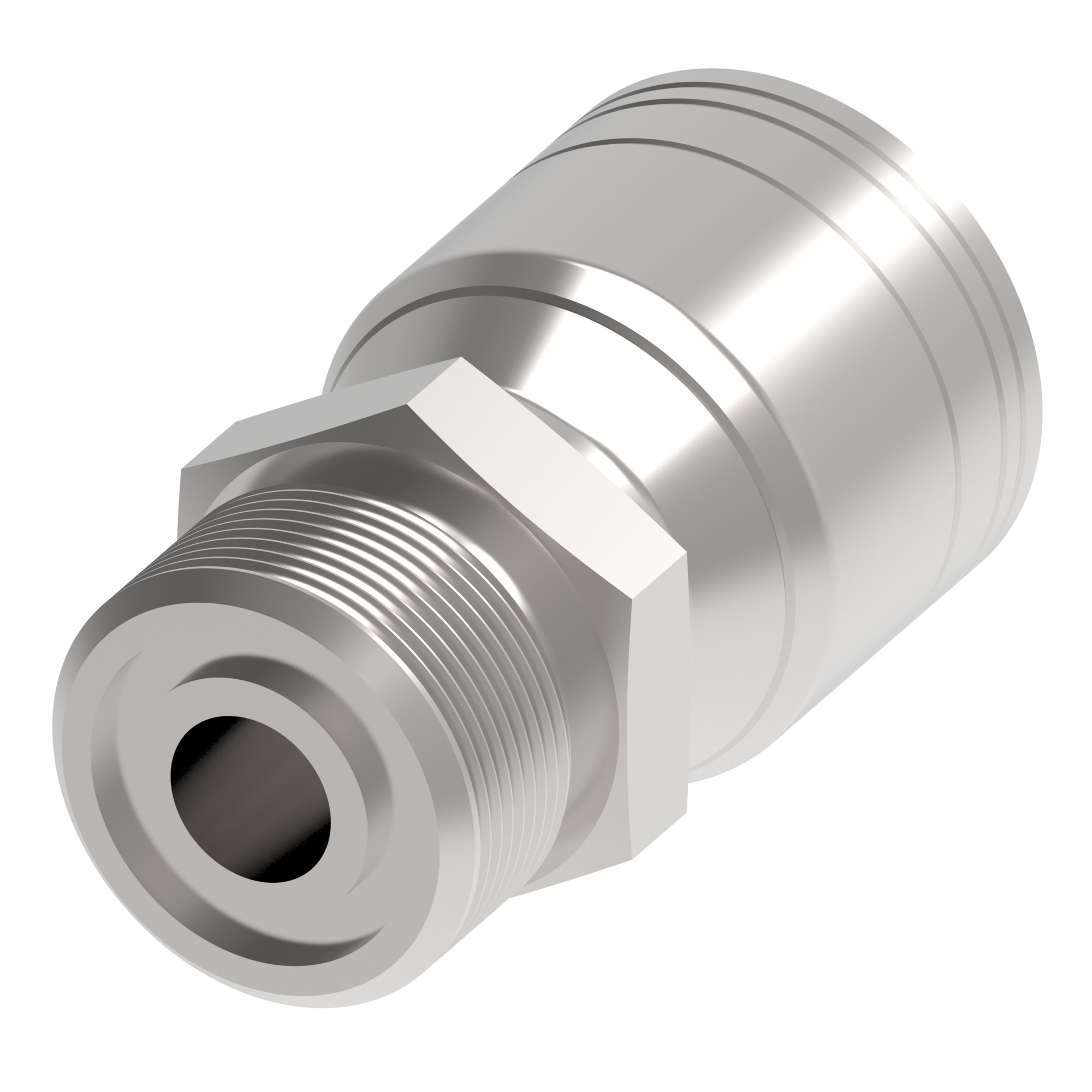

Danfoss

1A8MR6

HOSE FTG, 1A/06, ORS-M/08, CS, STR

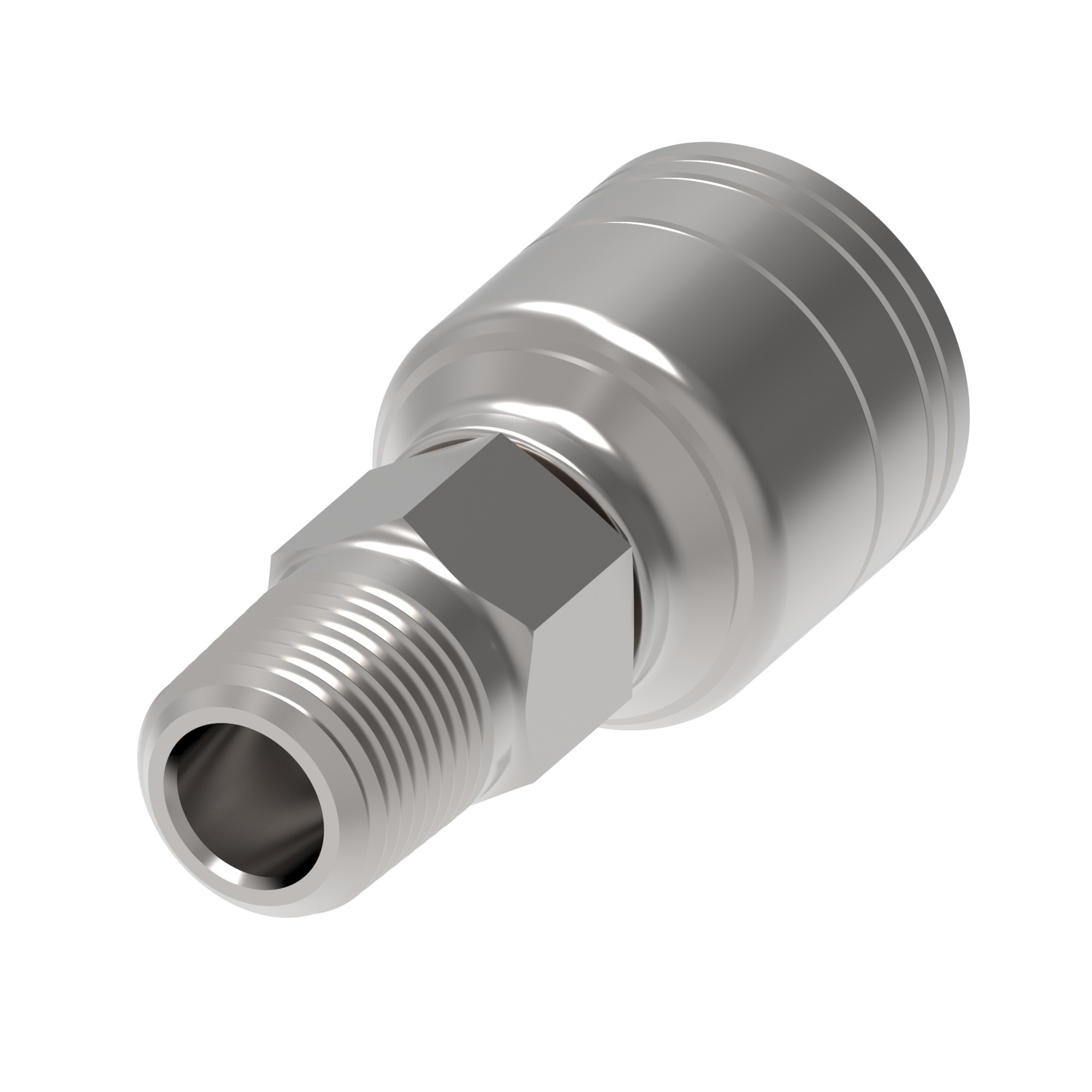

Danfoss

1A8MP8

HOSE FTG, 1A/08, NPTF-M/08, CS, STR

Danfoss

1A8MP6

HOSE FTG, 1A/06, NPTF-M/08, CS, STR

Danfoss

1A8MP10

HOSE FTG, 1A/10, NPTF-M/08, CS, STR

Danfoss

1A8MJ8

HOSE FTG, 1A/08, JIC-M/08, CS, STR

Danfoss

1A8MJ6

HOSE FTG, 1A/06, JIC-M/08, CS, STR

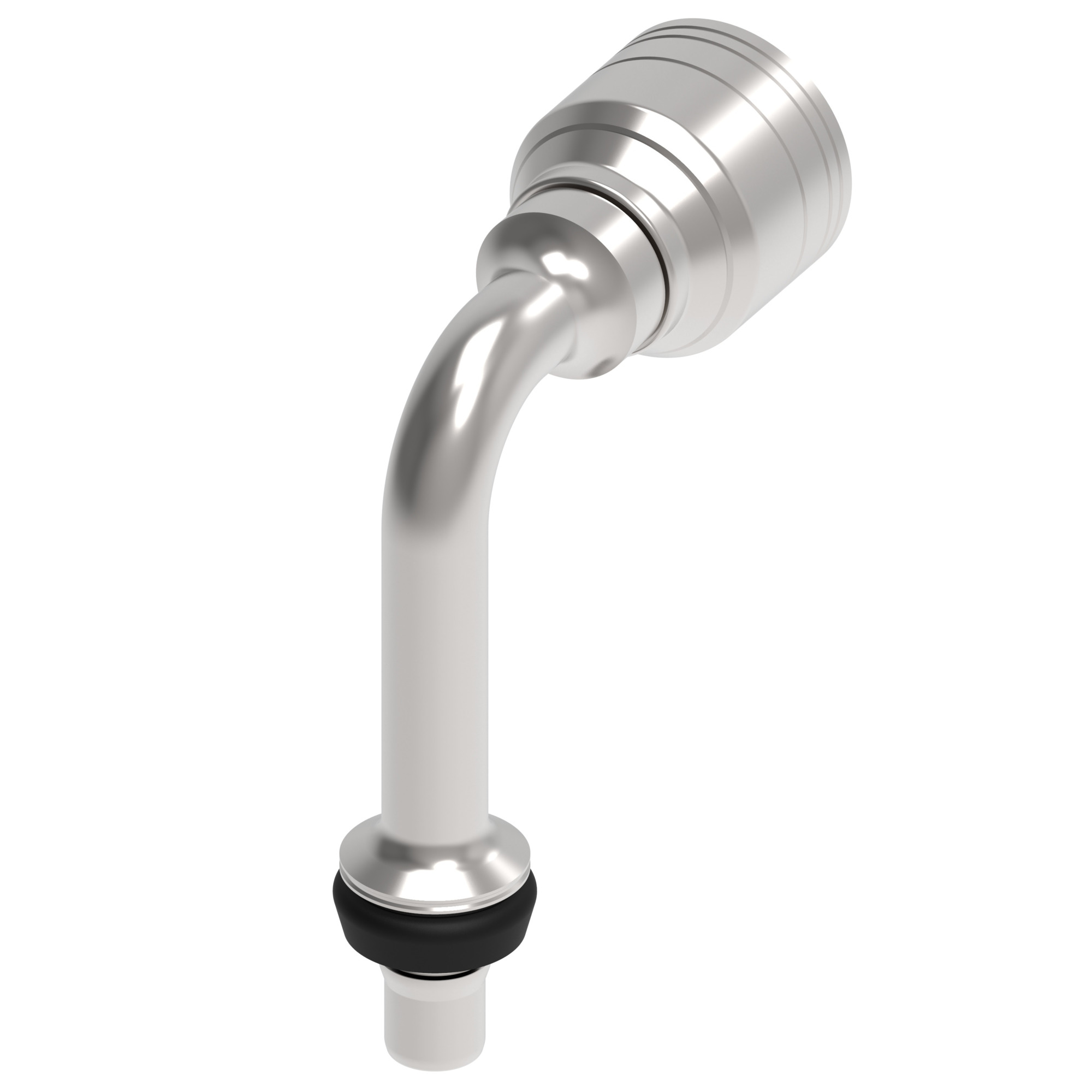

Danfoss

1A8MCC8

HOSE FTG, 1A/08, STC-M/08, CS, 90D

Danfoss

1A8MCB8

HOSE FTG, 1A/08, STC-M/08, CS, 90D

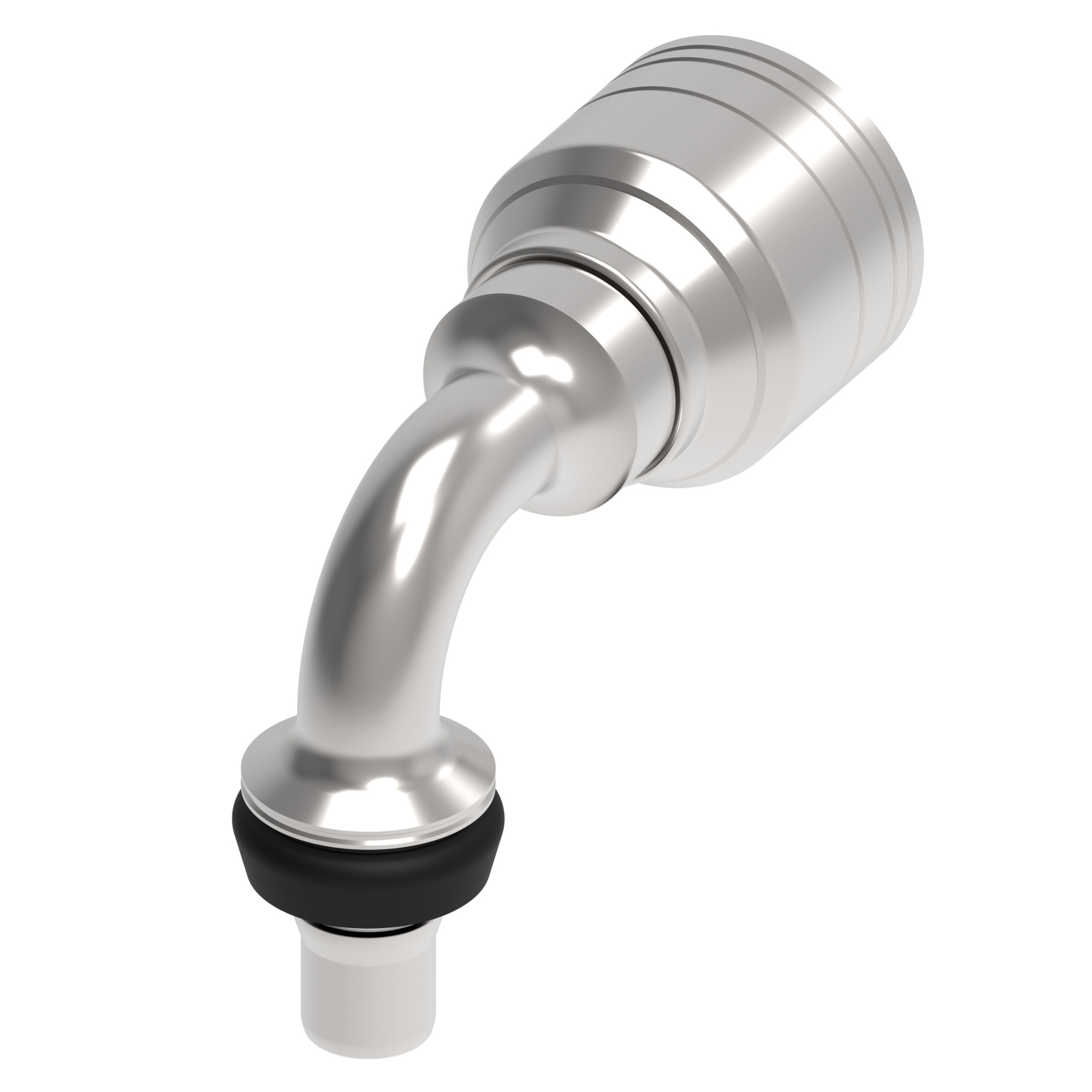

Danfoss

1A8MCB6

HOSE FTG, 1A/06, STC-M/08, CS, 90D

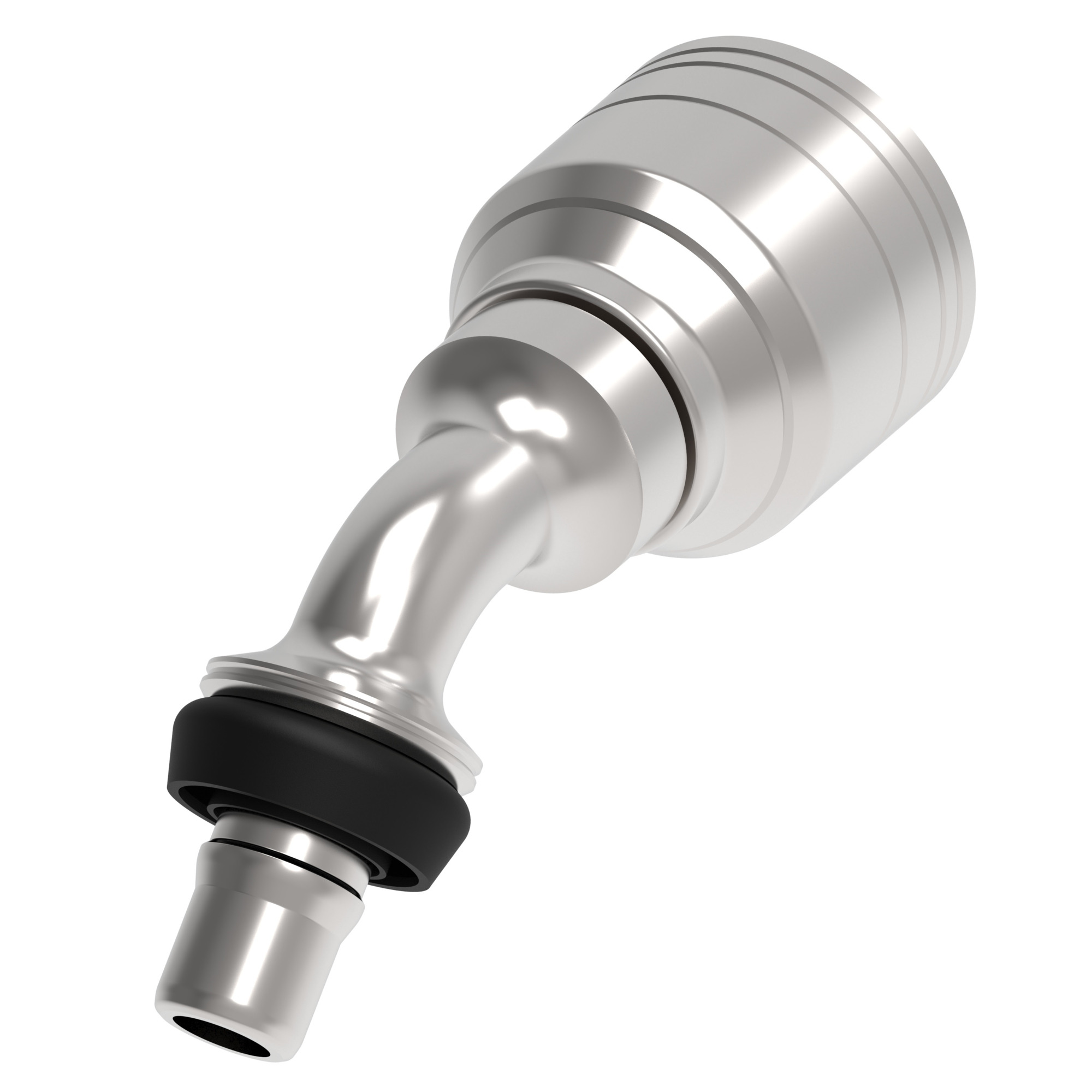

Danfoss

1A8MCA8

HOSE FTG, 1A/08, STC-M/08, CS, 45D

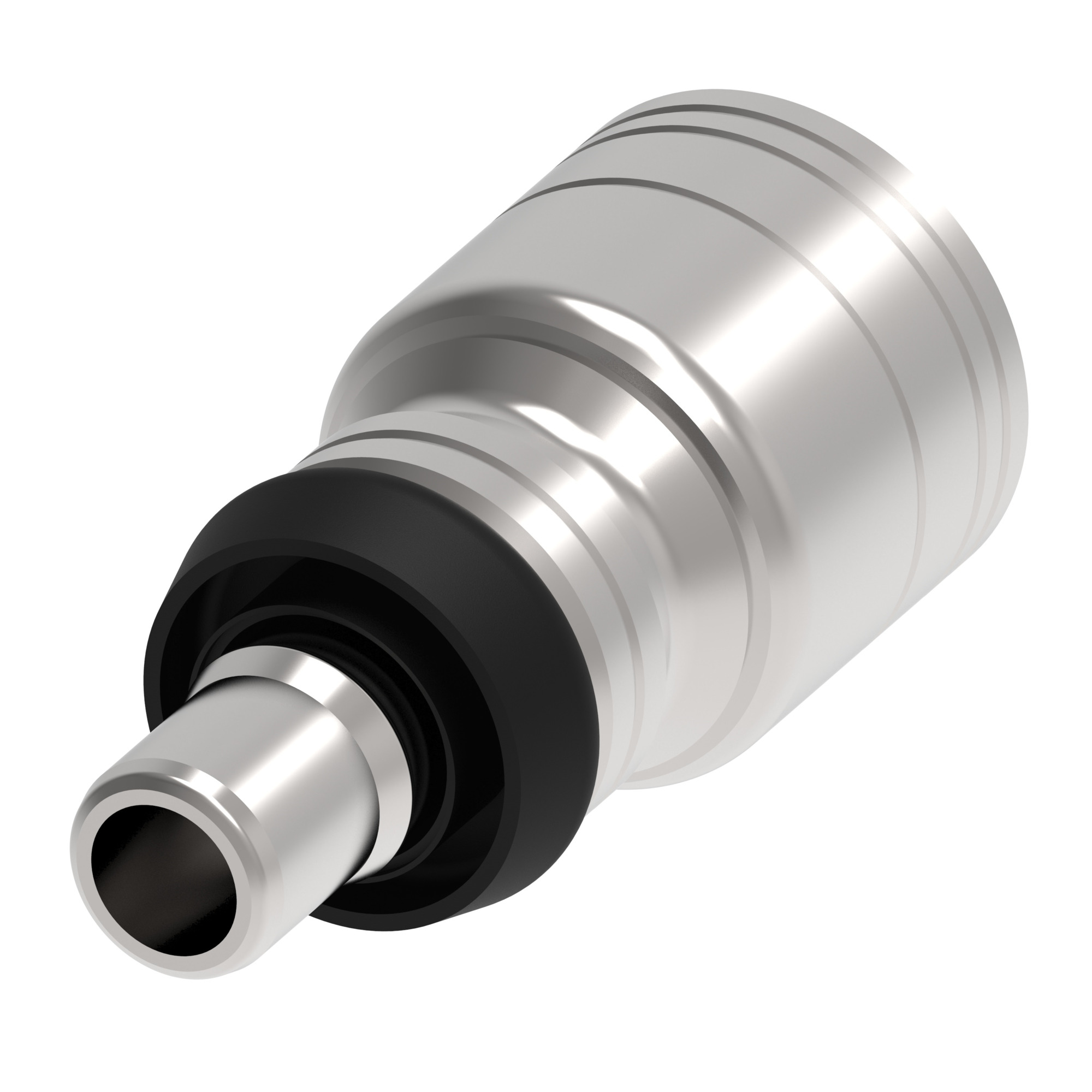

Danfoss

1A8MC8

HOSE FTG, 1A/08, STC-M/08, CS, STR

Danfoss

1A8MC6

HOSE FTG, 1A/06, STC-M/08, CS, STR

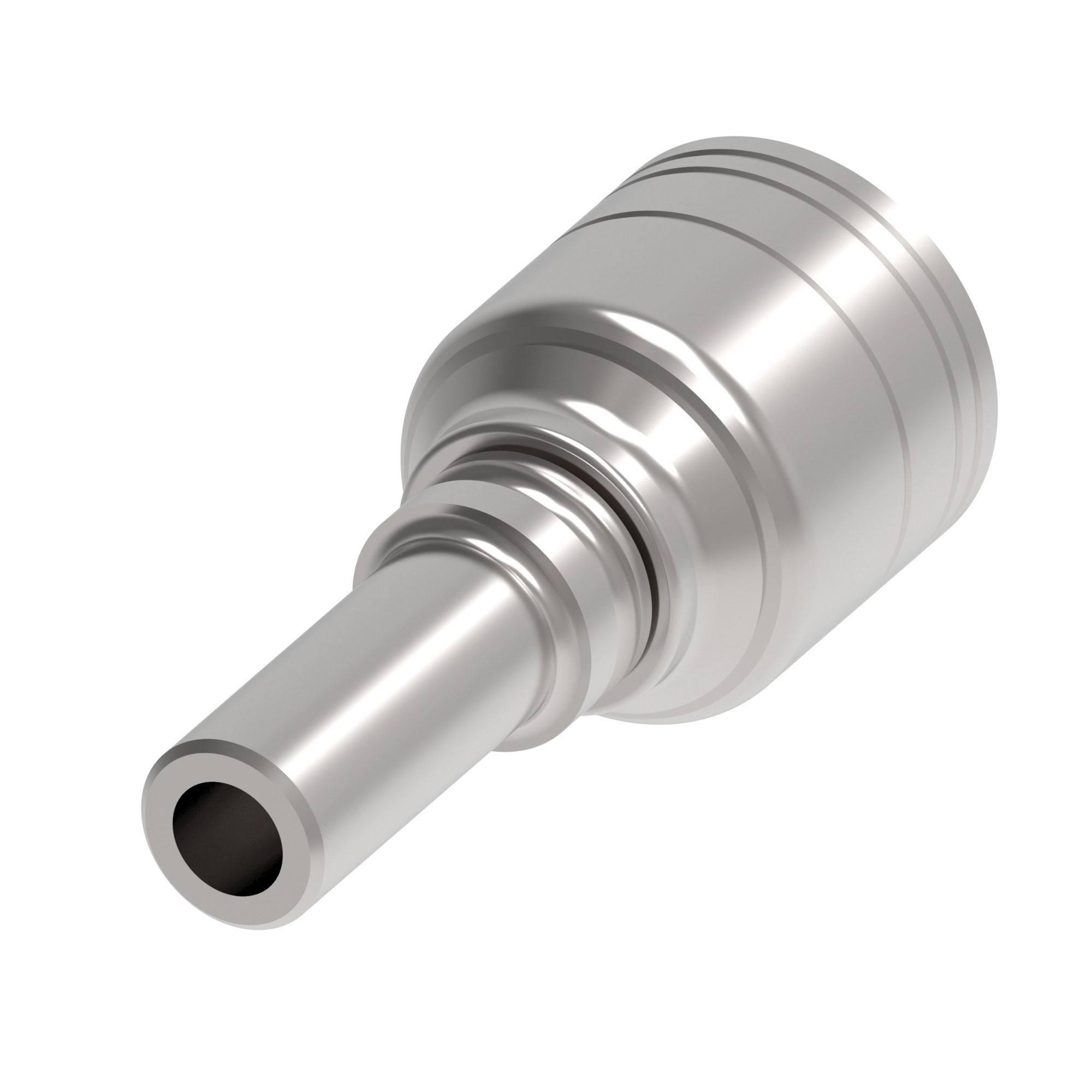

Danfoss

1A8LM4

HOSE FTG, 1A/04, STPIPE/08, CS, STR

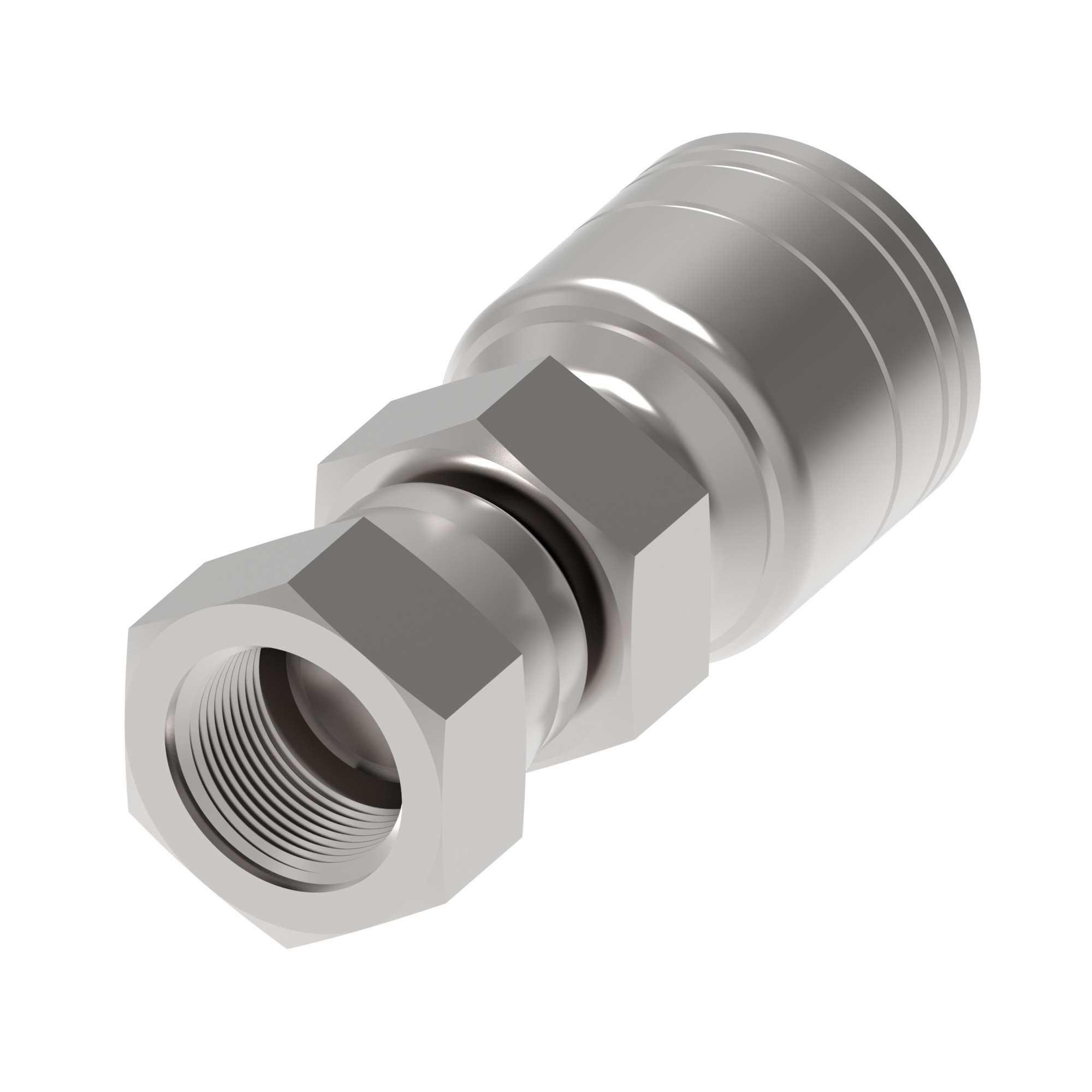

Danfoss

1A8KF8

HOSE FTG, 1A/08, KSF/08, CS, STR

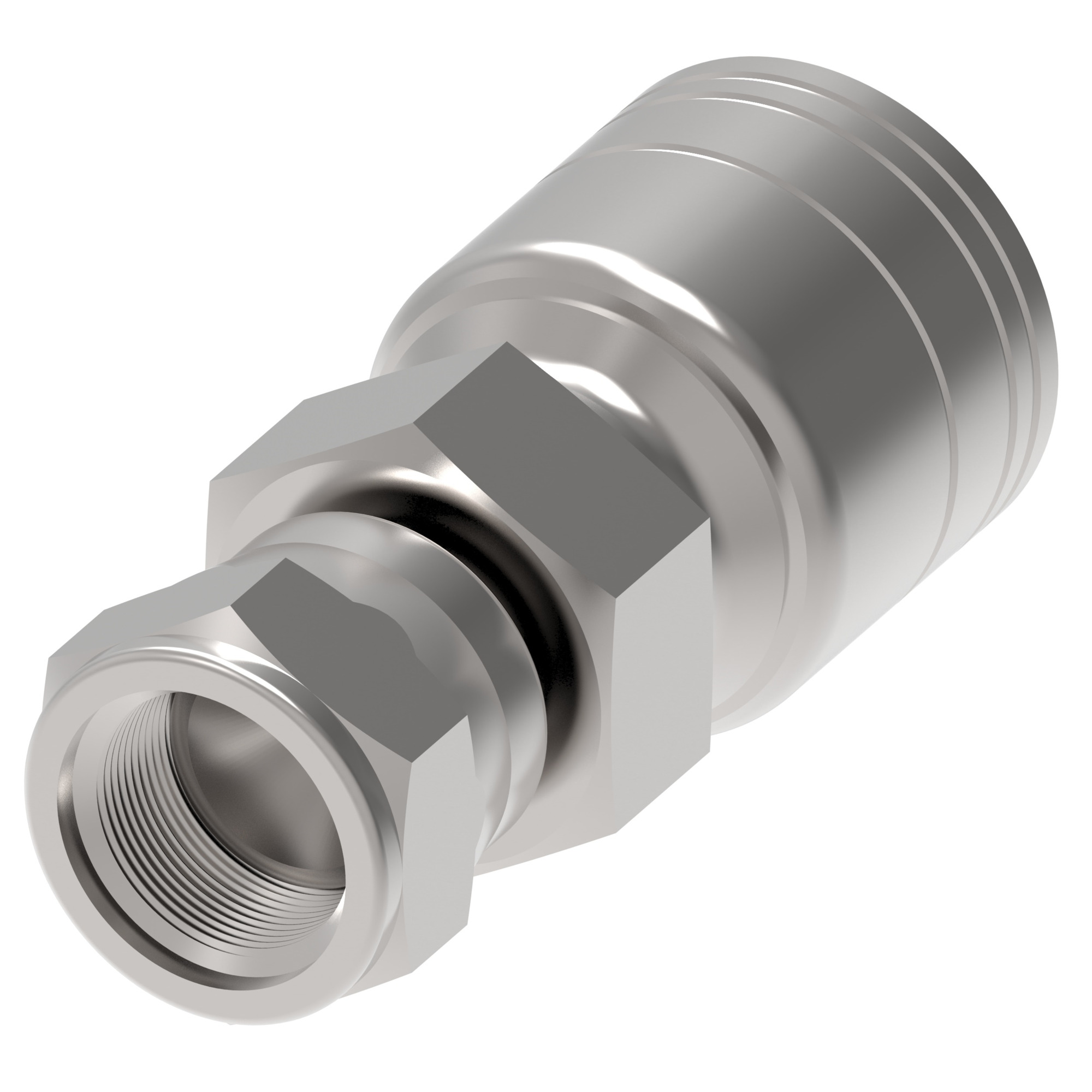

Danfoss

1A8JM8

HOSE FTG, 1A/08, KSF/08, CS, STR

Danfoss

1A8JF8

HOSE FTG, 1A/08, KSF/08, CS, STR

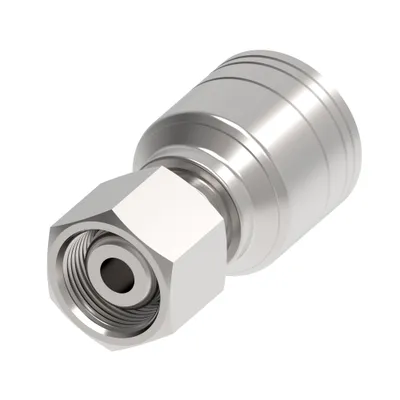

Danfoss

1A8GM4

HOSE FTG, 1A/04, AK/08, CS, STR

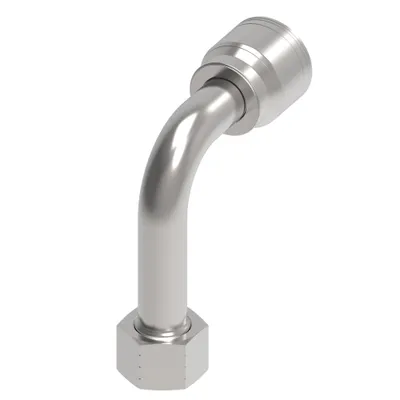

Danfoss

1A8FRC8

HOSE FTG, 1A/08, ORS-F/08, CS, 90D

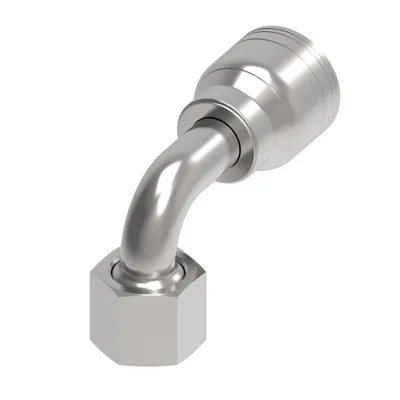

Danfoss

1A8FRB8

HOSE FTG, 1A/08, ORS-F/08, CS, 90D

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor MM	Product length in	Product length mm
1AA10FJ10C	2.640	67.000	40.900	2.770	70.358
1AA10FJ10	2.600	66.100	40.600	2.770	70.358
1AA10DLB6C	2.340	59.400	34.100	2.770	70.358
1AA10DL6C	1.860	47.200	25.900	2.070	52.578
1A8MR8	2.130	54.200	28.800	2.300	58.420
1A8MR6	2.030	51.600	29.000	1.950	49.550
1A8MP8	2.570	65.400	39.900	2.741	69.630
1A8MP6	2.110	53.700	32.400	2.272	57.300
1A8MP10	2.610	66.200	40.100	2.734	69.530
1A8MJ8	2.410	61.200	35.700	2.410	61.214
1A8MJ6	1.940	49.400	28.100	2.100	53.340
1A8MCC8	2.670	67.800	42.300	3.040	77.216
1A8MCB8	2.670	67.800	42.300	3.200	81.280
1A8MCB6	2.460	62.400	41.100	2.990	75.946
1A8MCA8	3.370	85.700	60.200	3.780	96.012
1A8MC8	2.440	62.000	36.600	2.600	66.040
1A8MC6	2.200	56.000	34.800	2.390	60.706
1A8LM4	2.220	56.300	32.900	2.220	56.388
1A8KF8	2.570	65.300	39.800	2.740	69.596
1A8JM8	2.280	58.000	28.300	2.280	57.912
1A8JF8	2.460	62.600	37.100	2.620	65.548
1A8GM4	1.850	47.000	23.600	1.850	46.990
1A8FRC8	2.810	71.400	42.400	3.300	83.820
1A8FRB8	2.810	71.400	42.400	3.310	84.074

Common to all listed parts

Construction Style	Crimp
Series	1A/Z Series
Working temperature min C	-40
Working temperature min F	-40
