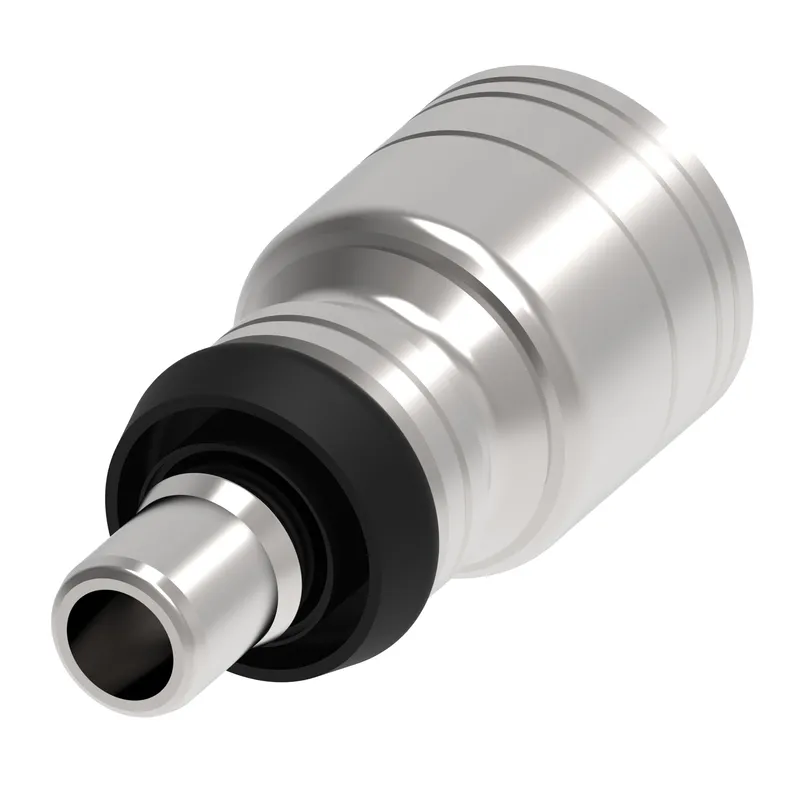

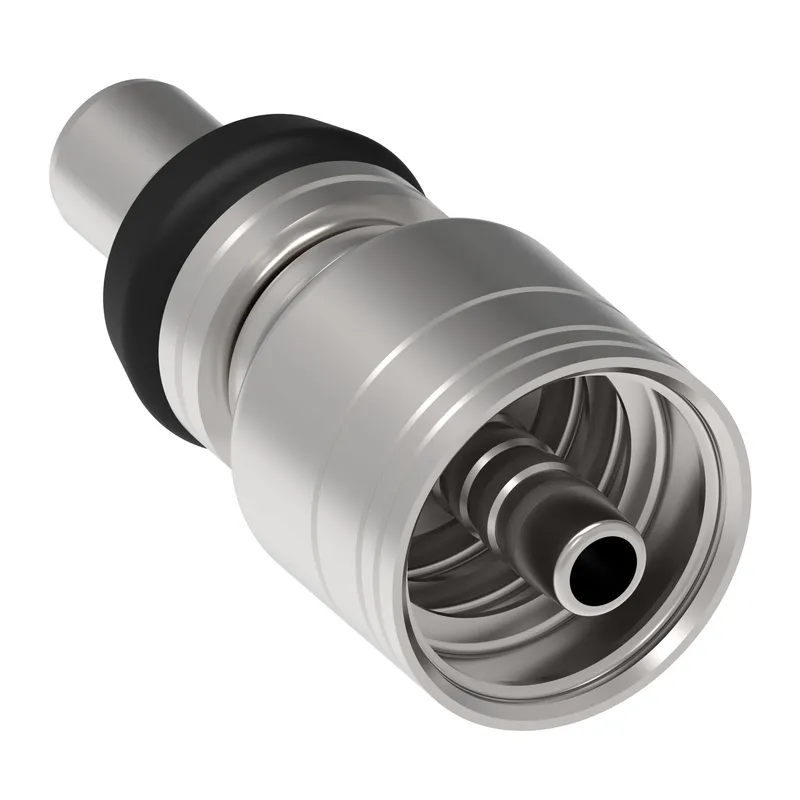

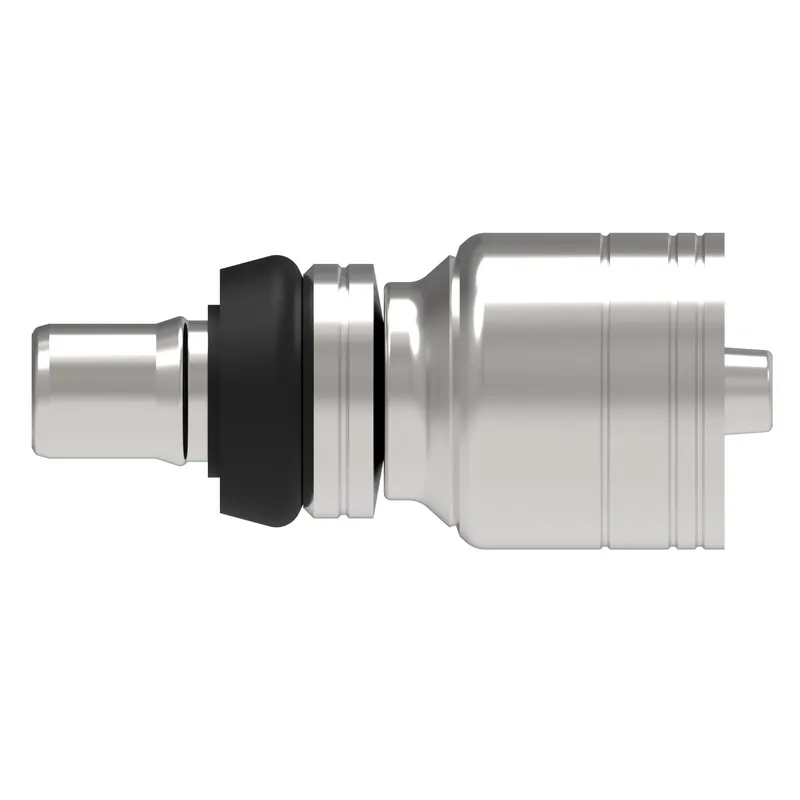

Danfoss 1A8MC6

HOSE FTG, 1A/06, STC-M/08, CS, STR

MPN: 1A8MC6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A8MC6?

Danfoss HOSE FTG, 1A/06, STC-M/08, CS, STR, manufacturer part number 1A8MC6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146045133
A dimension IN	2.200
A dimension MM	56.000
Angle shape	Straight
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End size 1	-8
End Type 1	Male STC connector
Finish plating	Dura-Kote
Hose cut off factor IN	1.370
Hose cut off factor MM	34.800
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.026
Product height mm	26.924
Product length in	2.390
Product length mm	60.706
Product material	Carbon steel
Product width in	1.067
Product width mm	27.101
Seal material	Hydrogenated Nitrile (HNBR)
Series	1A/Z Series
Working pressure max BAR	293
Working pressure max PSI	4250
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1A8MC6: frequently asked questions

When can 1A8MC6 be shipped?

1A8MC6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1A8MC6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1A8MC6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A8MC6, subject to availability and destination.
