Danfoss 1A8MC8

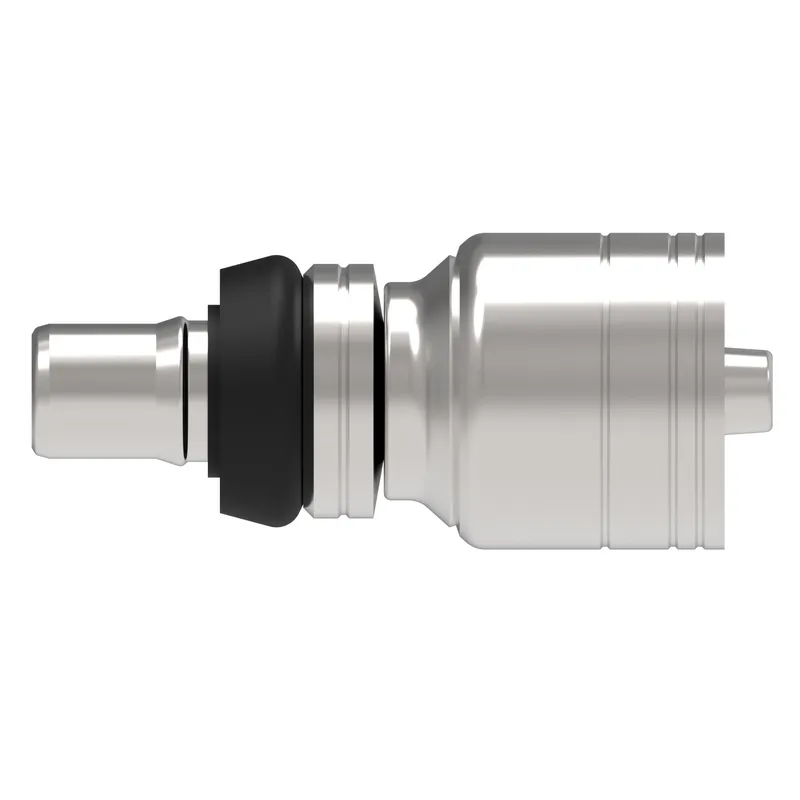

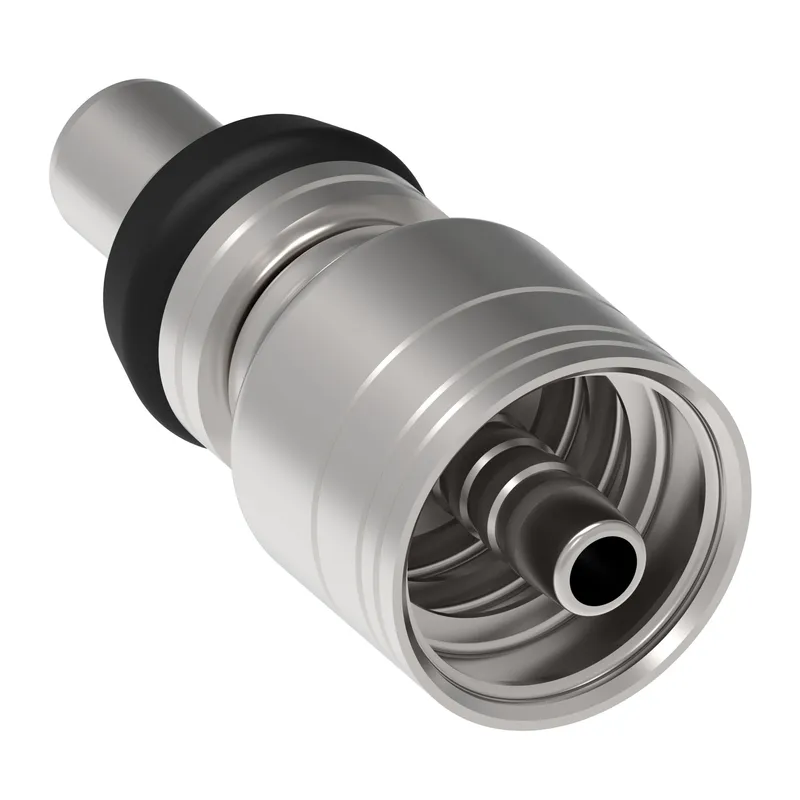

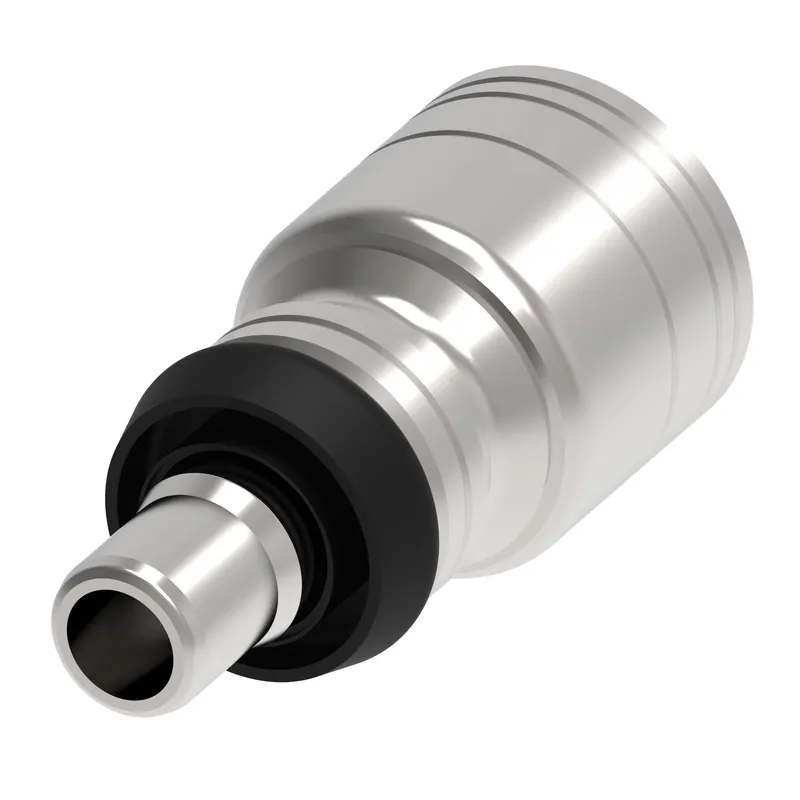

HOSE FTG, 1A/08, STC-M/08, CS, STR

MPN: 1A8MC8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A8MC8?

Danfoss HOSE FTG, 1A/08, STC-M/08, CS, STR, manufacturer part number 1A8MC8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146124982
A dimension IN	2.440
A dimension MM	62.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End size 1	-8
End Type 1	Male STC connector
Finish plating	Dura-Kote
Hex size 1 IN	0.000
Hex size 1 MM	0.000
Hose cut off factor IN	1.440
Hose cut off factor MM	36.600
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.220
Product height mm	30.988
Product length in	2.600
Product length mm	66.040
Product material	Carbon steel
Product width in	1.220
Product width mm	30.988
Proposition 65	Cancer and Reproductive Harm
Seal material	Hydrogenated Nitrile (HNBR)
Series	1A/Z Series
Working pressure max BAR	293
Working pressure max PSI	4250
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
