Braided hose and fittings Parts

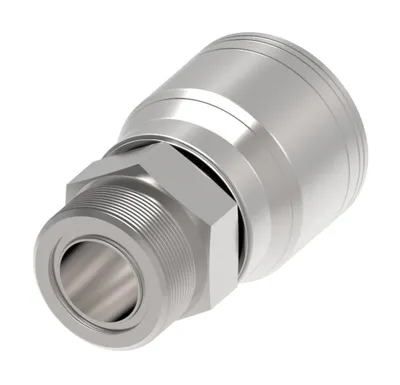

Danfoss

1AA10MR10

HOSE FTG, 1A/10, ORS-M/10, CS, STR

Danfoss

1AA10MJ8

HOSE FTG, 1A/08, JIC-M/10, CS, STR

Danfoss

1AA10MJ12

HOSE FTG, 1A/12, JIC-M/10, CS, STR

Danfoss

1AA10MB8

HOSE FTG, 1A/08, ORB-M/10, CS, STR

Danfoss

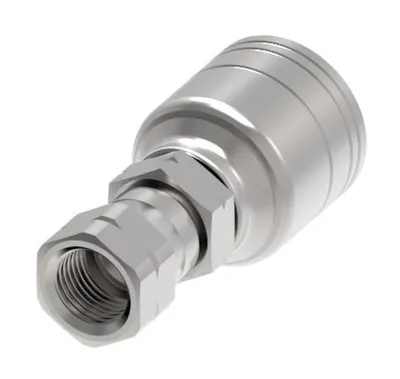

1AA10FS8

HOSE FTG, 1A/08, FS/10, CS, STR

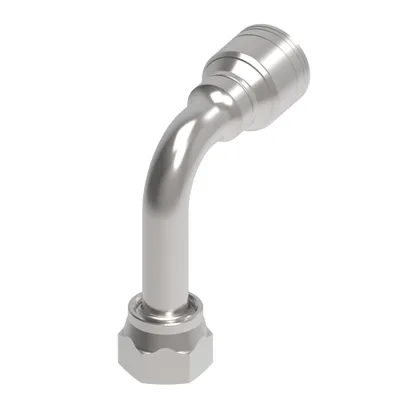

Danfoss

1AA10FRC8

HOSE FTG, 1A/08, ORS-F/10, CS, 90D

Danfoss

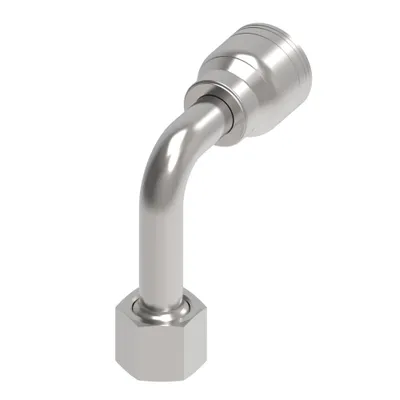

1AA10FRC10

HOSE FTG, 1A/10, ORS-F/10, CS, 90D

Danfoss

1AA10FRB8

HOSE FTG, 1A/08, ORS-F/10, CS, 90D

Danfoss

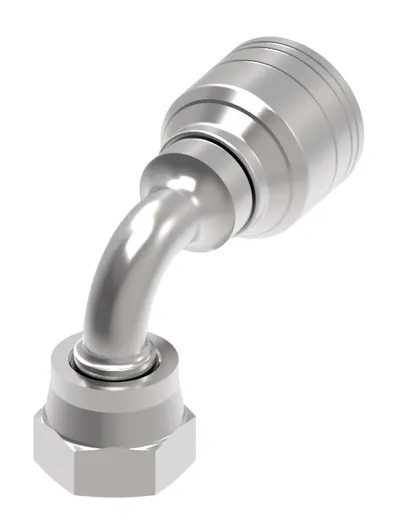

1AA10FRB12

HOSE FTG, 1A/12, ORS-F/10, CS, 90D

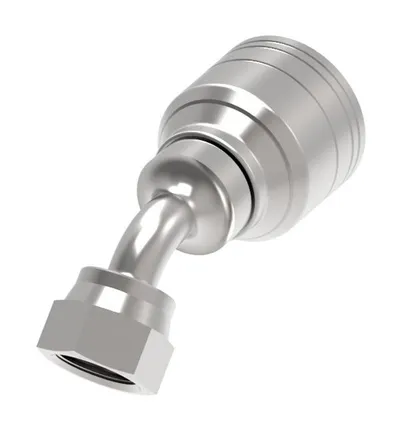

Danfoss

1AA10FRA8

HOSE FTG, 1A/08, ORS-F/10, CS, 45D

Danfoss

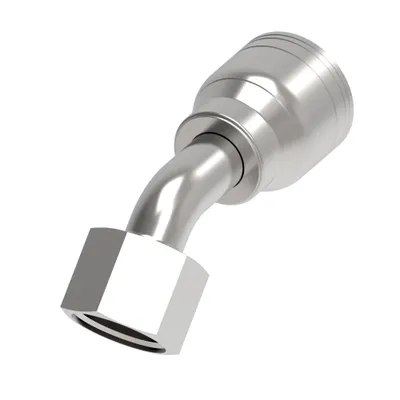

1AA10FRA10

HOSE FTG, 1A/10, ORS-F/10, CS, 45D

Danfoss

1AA10FR8

HOSE FTG, 1A/08, ORS-F/10, CS, STR

Danfoss

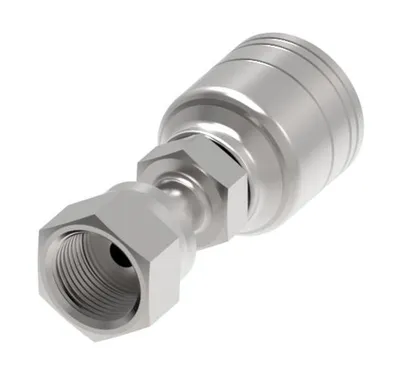

1AA10FR12

HOSE FTG, 1A/12, ORS-F/10, CS, STR

Danfoss

1AA10FR10

HOSE FTG, 1A/10, ORS-F/10, CS, STR

Danfoss

1AA10FJC8

HOSE FTG, 1A/08, JIC-F/10, CS, 90D

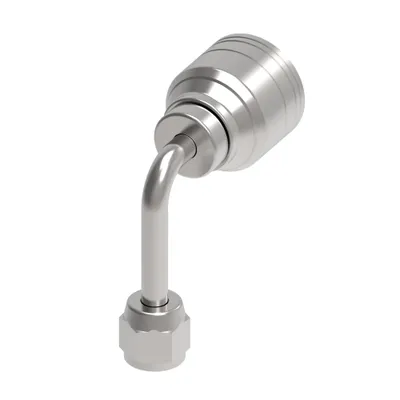

Danfoss

1AA10FJC10

HOSE FTG, 1A/10, JIC-F/10, CS, 90D

Danfoss

1AA10FJB8

HOSE FTG, 1A/08, JIC-F/10, CS, 90D

Danfoss

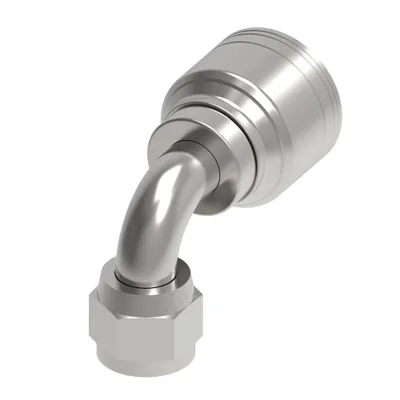

1AA10FJB12

HOSE FTG, 1A/12, JIC-F/10, CS, 90D

Danfoss

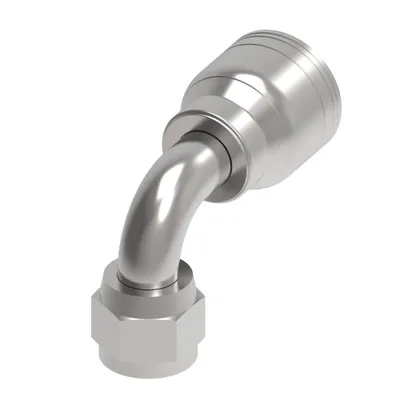

1AA10FJB10C

HOSE FTG, 1A/10, JIC-F/10, AP, 90D

Danfoss

1AA10FJB10

HOSE FTG, 1A/10, JIC-F/10, CS, 90D

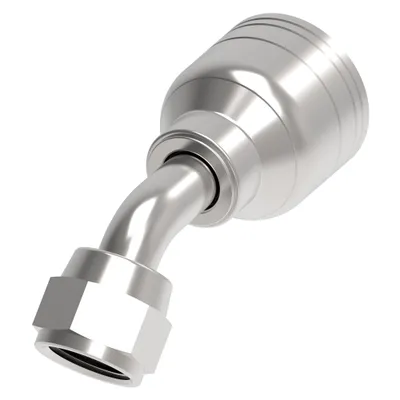

Danfoss

1AA10FJA10

HOSE FTG, 1A/10, JIC-F/10, CS, 45D

Danfoss

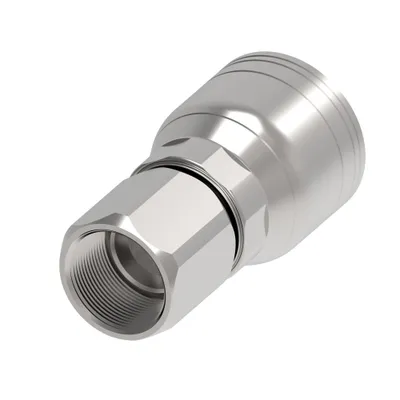

1AA10FJ8

HOSE FTG, 1A/08, JIC-F/10, CS, STR

Danfoss

1AA10FJ6

HOSE FTG, 1A/06, JIC-F/10, CS, STR

Danfoss

1AA10FJ12

HOSE FTG, 1A/12, JIC-F/10, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	A dimension MM	Hose cut off factor MM	Product length in	Product length mm
1AA10MR10	678146125392	65.700	36.700	2.400	60.960
1AA10MJ8	678146125385	57.400	31.900	2.420	61.468
1AA10MJ12	678146125361	67.400	40.400	2.770	70.358
1AA10MB8	678146125330	53.100	27.600	2.250	57.150
1AA10FS8	678146125309	62.900	37.400	3.640	92.456
1AA10FRC8	678146125293	73.900	48.400	3.630	92.202
1AA10FRC10	678146125286	78.300	48.600	3.620	91.948
1AA10FRB8	678146125279	73.900	48.400	3.640	92.450
1AA10FRB12	678146125255	76.000	48.900	3.670	93.216
1AA10FRA8	678146125231	76.600	51.100	4.280	108.712
1AA10FRA10	678146125224	80.900	51.300	4.260	108.204
1AA10FR8	678146125217	63.800	37.300	3.130	79.502
1AA10FR12	678146125200	68.300	41.200	3.350	85.090
1AA10FR10	678146125194	66.300	40.800	3.290	83.566
1AA10FJC8	678146125187	66.500	41.000	2.780	70.612
1AA10FJC10	678146125170	69.100	39.300	3.200	81.280
1AA10FJB8	678146125163	66.500	41.000	2.780	70.612
1AA10FJB12	678146125156	65.200	39.700	3.250	82.550
1AA10FJB10C	—	74.700	48.600	3.645	92.583
1AA10FJB10	678146125149	69.100	39.300	3.200	81.280
1AA10FJA10	678146125125	75.200	45.400	3.393	99.822
1AA10FJ8	678146125118	65.700	39.200	2.640	67.056
1AA10FJ6	678146125101	57.500	36.700	2.410	61.214
1AA10FJ12	678146125095	68.400	41.300	2.810	71.374

Common to all listed parts

Construction Style	Crimp
End size 1	-10
Series	1A/Z Series
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
