Danfoss 1AA10FJ10C

HOSE FTG, 1A/10, JIC-F/10, AP, STR

MPN: 1AA10FJ10C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA10FJ10C?

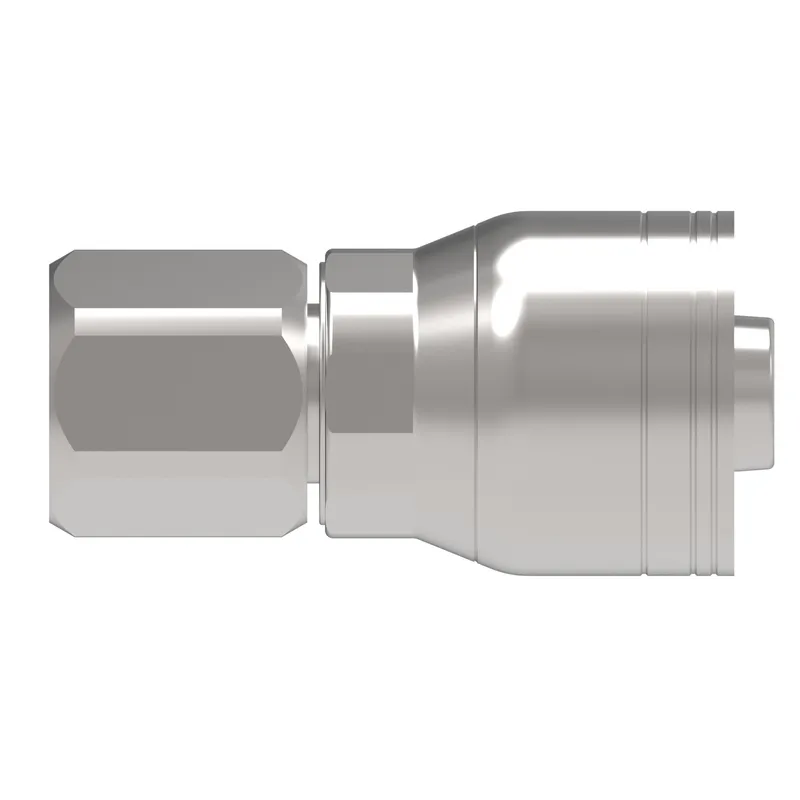

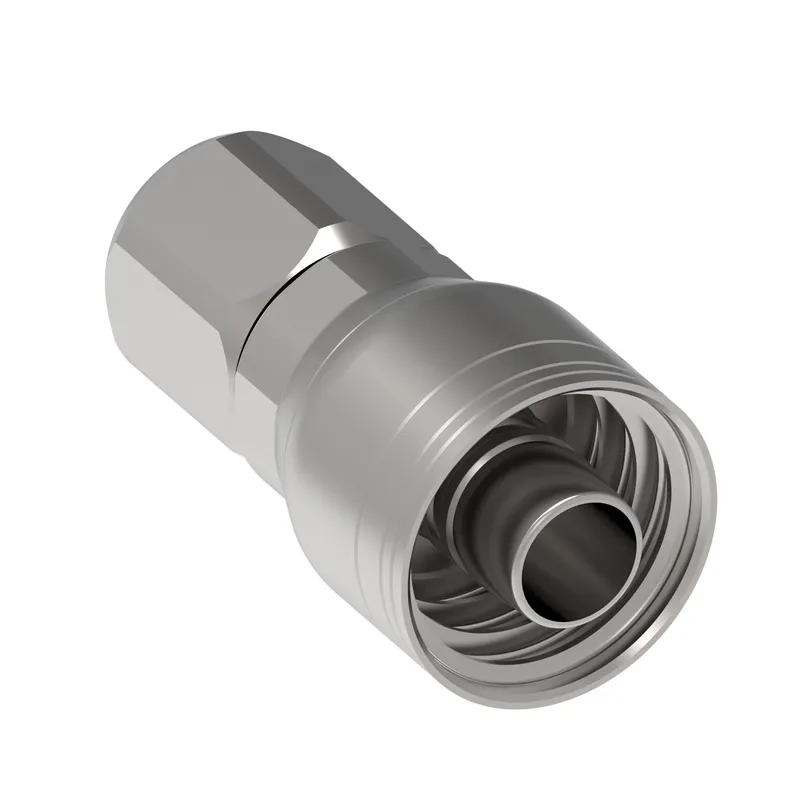

Danfoss HOSE FTG, 1A/10, JIC-F/10, AP, STR, manufacturer part number 1AA10FJ10C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146125088
A dimension IN	2.640
A dimension MM	67.000
Angle shape	Straight
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
End connection torque	57-62 lb-ft(77-85 Nm)
End size 1	-10
End Type 1	Female 37 degree swivel
Hex size 1 IN	1.000
Hex size 1 MM	25.400
Hex size 2 MM	23.813
Hose cut off factor IN	1.610
Hose cut off factor MM	40.900
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.800
Product height in	1.390
Product height mm	35.306
Product length in	2.770
Product length mm	70.358
Product material	316 Stainless steel
Product width in	1.386
Product width mm	35.204
Series	1A/Z Series
Thread size 1	7/8-14 UNF
Working pressure max BAR	350.00
Working pressure max PSI	5100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1AA10FJ10C: frequently asked questions

When can 1AA10FJ10C be shipped?

1AA10FJ10C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AA10FJ10C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AA10FJ10C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA10FJ10C, subject to availability and destination.
