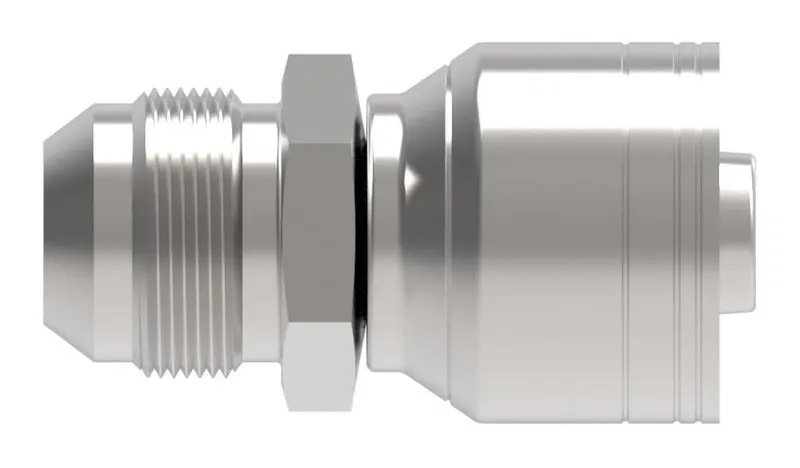

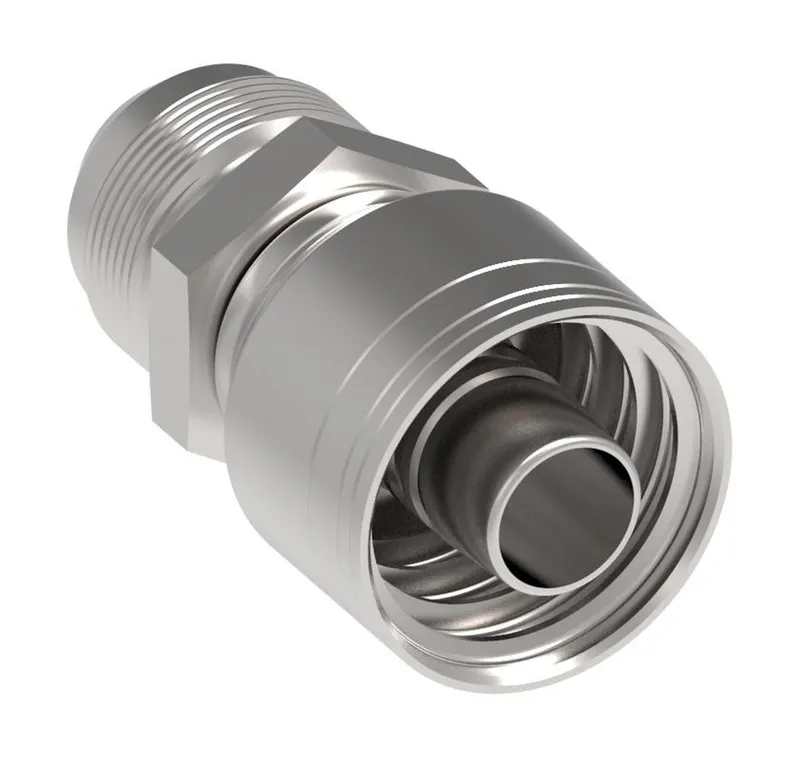

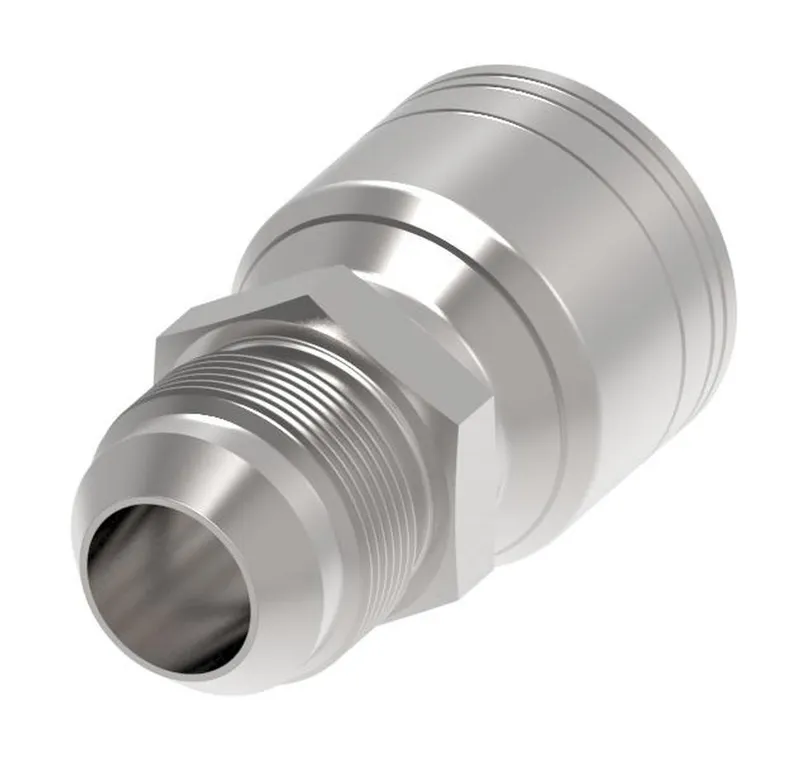

Danfoss 1A8MJ8

HOSE FTG, 1A/08, JIC-M/08, CS, STR

MPN: 1A8MJ8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A8MJ8?

Danfoss HOSE FTG, 1A/08, JIC-M/08, CS, STR, manufacturer part number 1A8MJ8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.410
A dimension MM	61.200
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-8
End Type 1	Male 37 degree
Finish plating	Dura-Kote
Hex size 1 IN	0.000
Hex size 1 MM	22.000
Hex size 2 MM	22.000
Hose cut off factor IN	1.410
Hose cut off factor MM	35.700
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.220
Product height mm	30.988
Product length in	2.410
Product length mm	61.214
Product material	Carbon steel
Product width in	1.220
Product width mm	30.988
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	3/4-16 UNF
Working pressure max BAR	414.00
Working pressure max PSI	6000.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1A8MJ8: frequently asked questions

When can 1A8MJ8 be shipped?

1A8MJ8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1A8MJ8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1A8MJ8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A8MJ8, subject to availability and destination.
