Danfoss 1A8FRB8

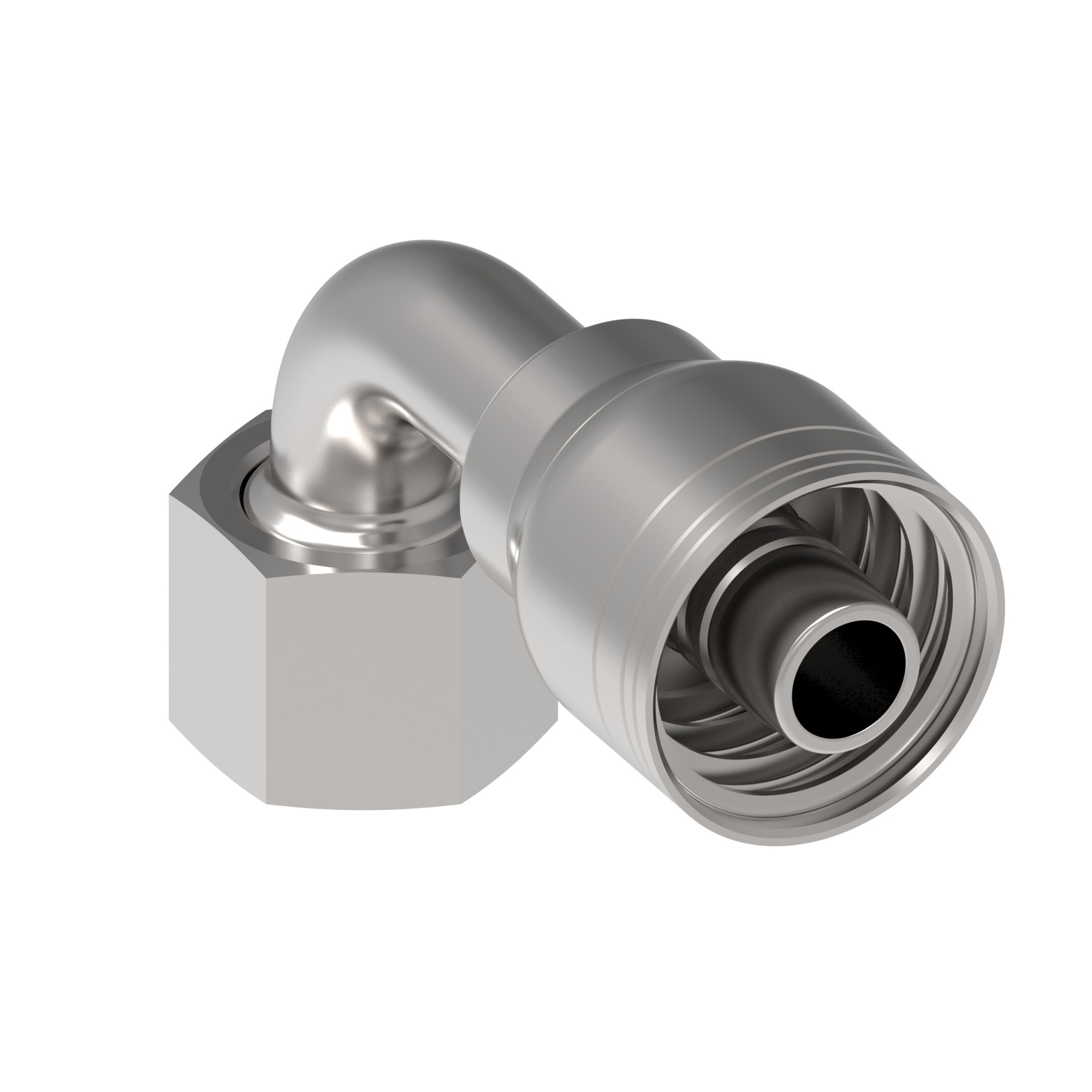

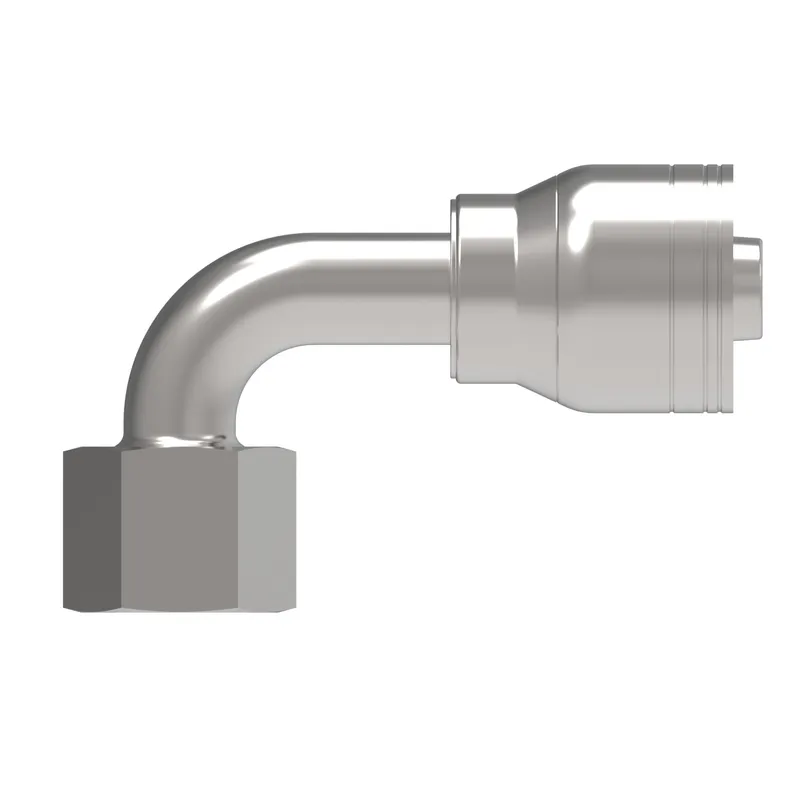

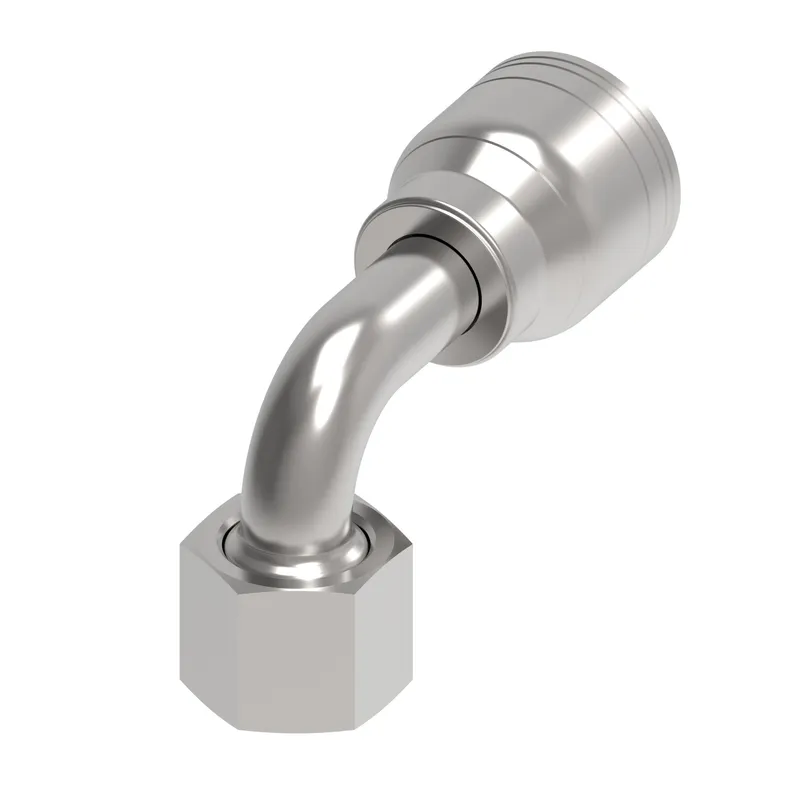

HOSE FTG, 1A/08, ORS-F/08, CS, 90D

MPN: 1A8FRB8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A8FRB8?

Danfoss HOSE FTG, 1A/08, ORS-F/08, CS, 90D, manufacturer part number 1A8FRB8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146169143
A dimension IN	2.810
A dimension MM	71.400
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.150
Drop dimension MM	29.20
End connection torque	32-35 lb-ft(43-47 Nm)
End size 1	-8
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.940
Hex size 1 MM	23.876
Hose cut off factor IN	1.670
Hose cut off factor MM	42.400
Hose size	-8
Inside diameter IN	0.330
Inside diameter MM	8.500
Product height in	2.190
Product height mm	55.626
Product length in	3.310
Product length mm	84.074
Product material	Carbon steel
Product width in	1.220
Product width mm	30.988
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	13/16-16 UN
Working pressure max BAR	552
Working pressure max PSI	8100
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
