Danfoss 1A8LM4

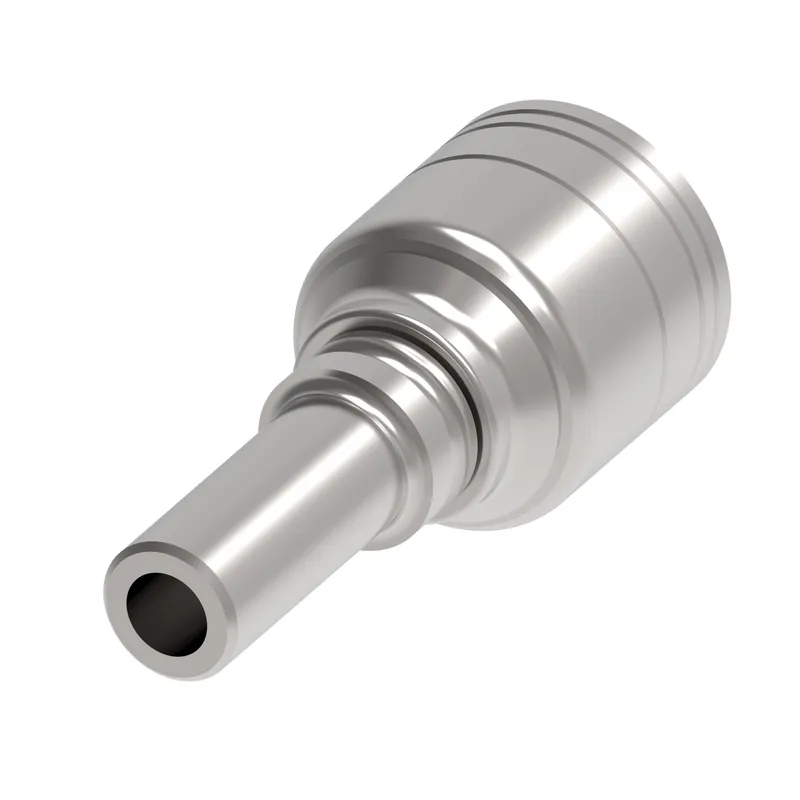

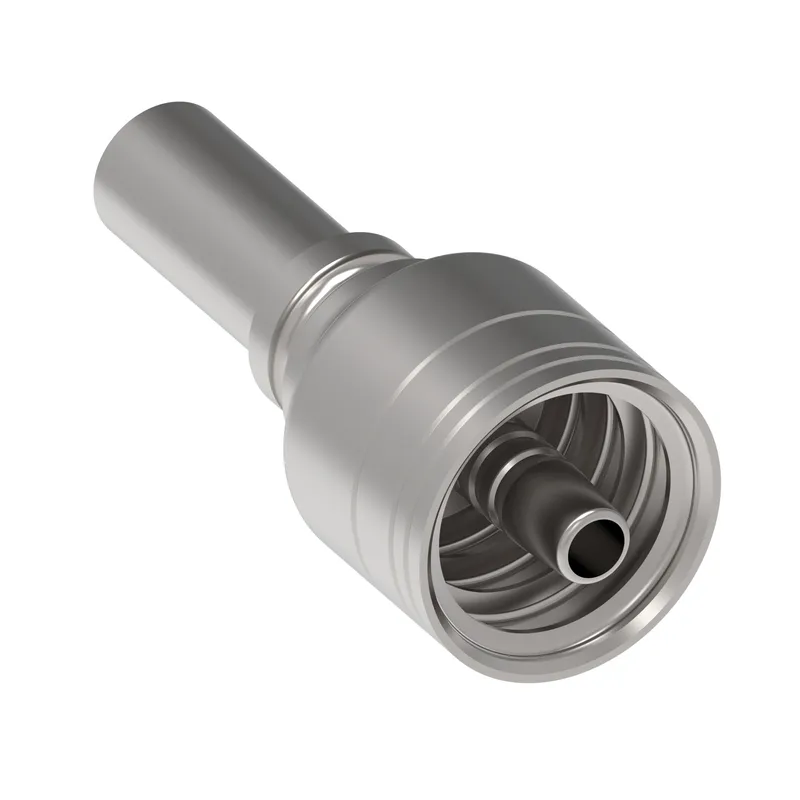

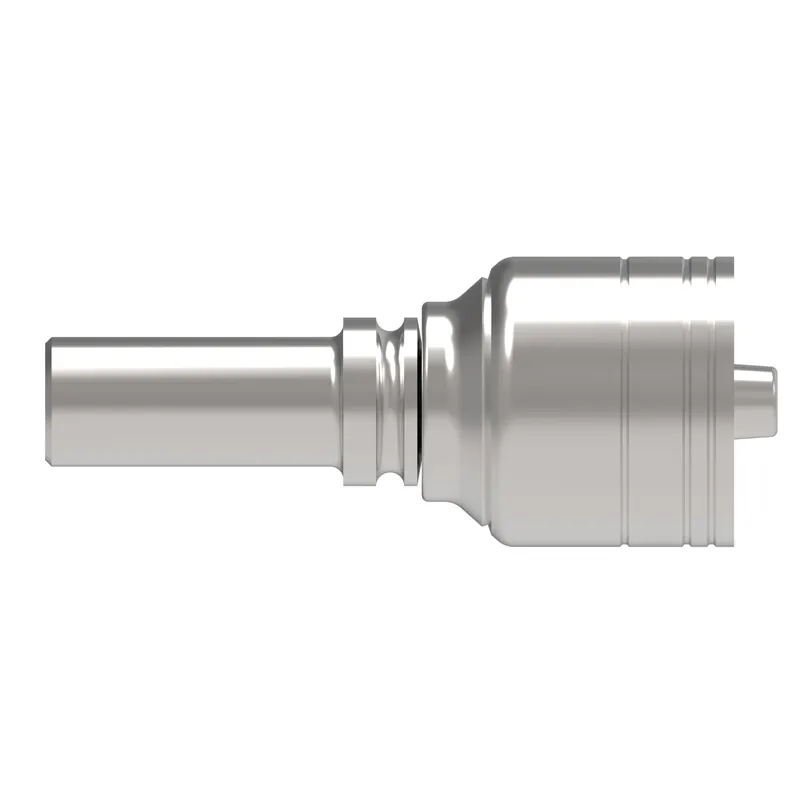

HOSE FTG, 1A/04, STPIPE/08, CS, STR

MPN: 1A8LM4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A8LM4?

Danfoss HOSE FTG, 1A/04, STPIPE/08, CS, STR, manufacturer part number 1A8LM4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146169204
A dimension IN	2.220
A dimension MM	56.300
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End size 1	-8
End Type 1	Standpipe Metric
Finish plating	Dura-Kote
Hose cut off factor IN	1.300
Hose cut off factor MM	32.900
Hose size	-4
Inside diameter IN	0.160
Inside diameter MM	4.200
Product height in	0.880
Product height mm	22.352
Product length in	2.220
Product length mm	56.388
Product material	Carbon steel
Product width in	0.882
Product width mm	22.402
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Working pressure max BAR	400.00
Working pressure max PSI	5800.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
