Braided hose and fittings Parts

Danfoss

1A8DSA5

HOSE FTG, 1A/05, DKOH-B/08, CS, 45D

Danfoss

1A8DS6

HOSE FTG, 1A/06, DKOH-B/08, CS, STR

Danfoss

1A8DS5

HOSE FTG, 1A/05, DKOH-B/08, CS, STR

Danfoss

1A8DS4

HOSE FTG, 1A/04, DKOH-B/08, CS, STR

Danfoss

1A8DLB6

HOSE FTG, 1A/06, DKOL/08, CS, 90D

Danfoss

1A8DLB5AH

HOSE FTG, 1A/05, DKOL/08, CS, 90D

Danfoss

1A8DLB5

HOSE FTG, 1A/05, DKOL/08, CS, 90D

Danfoss

1A8DLA6

HOSE FTG, 1A/06, DKOL/08, CS, 45D

Danfoss

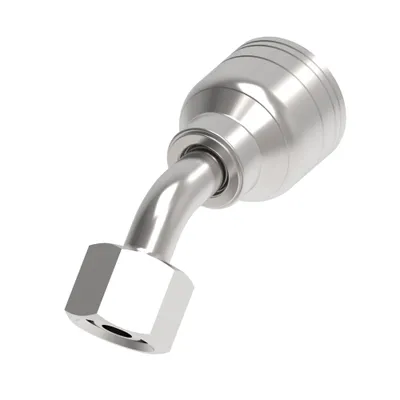

1A8DLA5AH

HOSE FTG, 1A/05, DKOL/08, CS, 45D

Danfoss

1A8DLA5

HOSE FTG, 1A/05, DKOL/08, CS, 45D

Danfoss

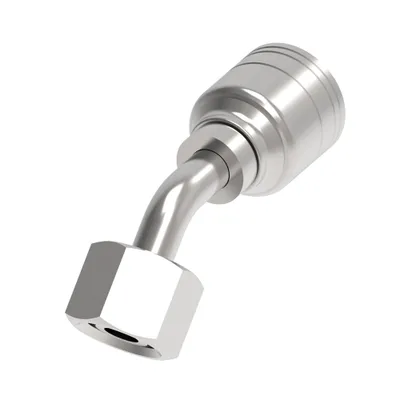

1A8DLA4

HOSE FTG, 1A/04, DKOL/08, CS, 45D

Danfoss

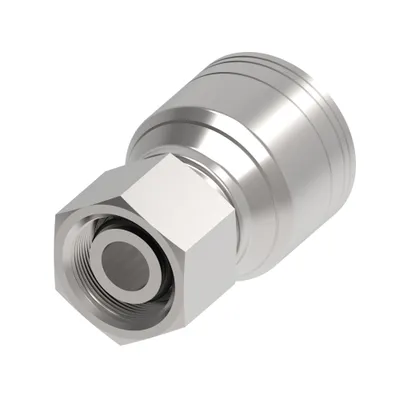

1A8DL6

HOSE FTG, 1A/06, DKOL/08, CS, STR

Danfoss

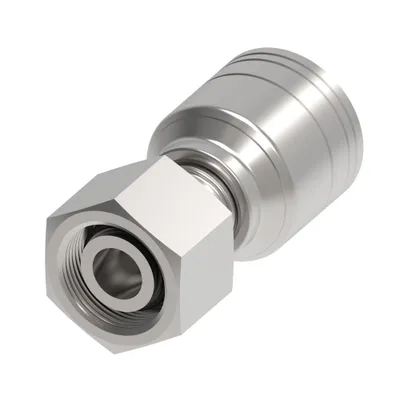

1A8DL5AH

HOSE FTG, 1A/05, DKOL/08, CS, STR

Danfoss

1A8DL5

HOSE FTG, 1A/05, DKOL/08, CS, STR

Danfoss

1A8DL4

HOSE FTG, 1A/04, DKOL/08, CS, STR

Danfoss

1A8DK6

HOSE FTG, 1A/06, DKL-M/08, CS, STR

Danfoss

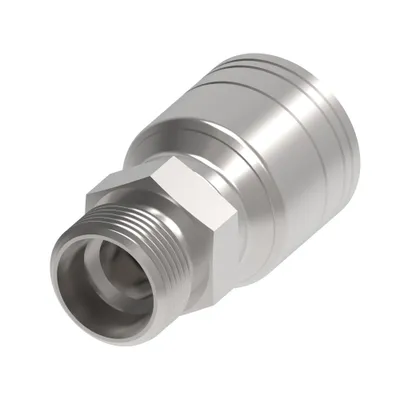

1A8DK5AH

HOSE FTG, 1A/05, DKL-M/08, CS, STR

Danfoss

1A8DK5

HOSE FTG, 1A/05, DKL-M/08, CS, STR

Danfoss

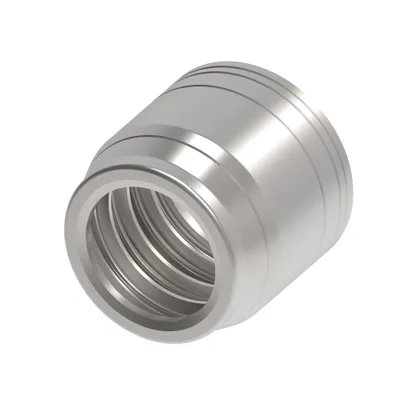

1A8C

SOCKET-PERM, 2P/08, AP

Danfoss

1A8BT8

HOSE FTG, 1A/08, BSPT-M/08, CS, STR

Danfoss

1A8BT6

HOSE FTG, 1A/06, BSPT-M/08, CS, STR

Danfoss

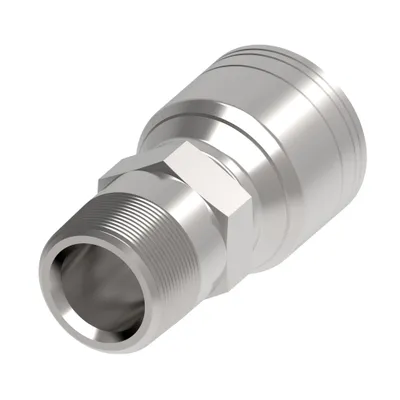

1A8BT10

HOSE FTG, 1A/10, BSPT-M/08, CS, STR

Danfoss

1A8BP8

HOSE FTG, 1A/08, BSPJ/08, CS, STR

Danfoss

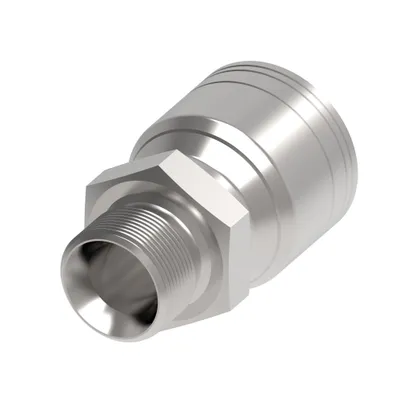

1A8BP6

HOSE FTG, 1A/06, BSPJ/08, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor MM	Product length in	Product length mm
1A8DSA5	2.440	62.100	38.200	2.917	74.100
1A8DS6	2.120	53.800	28.500	2.120	53.848
1A8DS5	2.030	51.600	27.700	2.031	51.600
1A8DS4	2.000	50.900	27.500	2.000	50.800
1A8DLB6	2.300	58.500	33.600	2.670	67.818
1A8DLB5AH	2.180	55.300	31.400	2.600	66.040
1A8DLB5	2.180	55.300	31.400	2.563	65.100
1A8DLA6	2.630	66.800	41.500	3.820	97.028
1A8DLA5AH	2.560	64.900	41.000	2.980	75.692
1A8DLA5	2.560	64.900	41.000	2.555	64.900
1A8DLA4	2.550	64.700	41.300	2.920	74.168
1A8DL6	1.990	50.500	25.200	1.990	50.546
1A8DL5AH	2.000	50.700	26.800	2.000	50.800
1A8DL5	2.000	50.700	26.800	1.996	50.700
1A8DL4	1.900	48.200	24.800	1.900	48.260
1A8DK6	2.050	52.000	26.700	2.050	52.070
1A8DK5AH	1.850	47.000	23.100	1.850	46.990
1A8DK5	1.840	46.800	22.900	1.842	46.800
1A8C	1.250	31.800	—	1.252	31.800
1A8BT8	2.610	66.200	36.500	2.610	66.294
1A8BT6	2.460	62.600	37.300	2.460	62.484
1A8BT10	2.660	67.600	38.200	2.661	67.600
1A8BP8	2.280	58.000	28.300	2.280	57.912
1A8BP6	2.060	52.400	27.100	2.060	52.324

Common to all listed parts

Construction Style

Crimp
