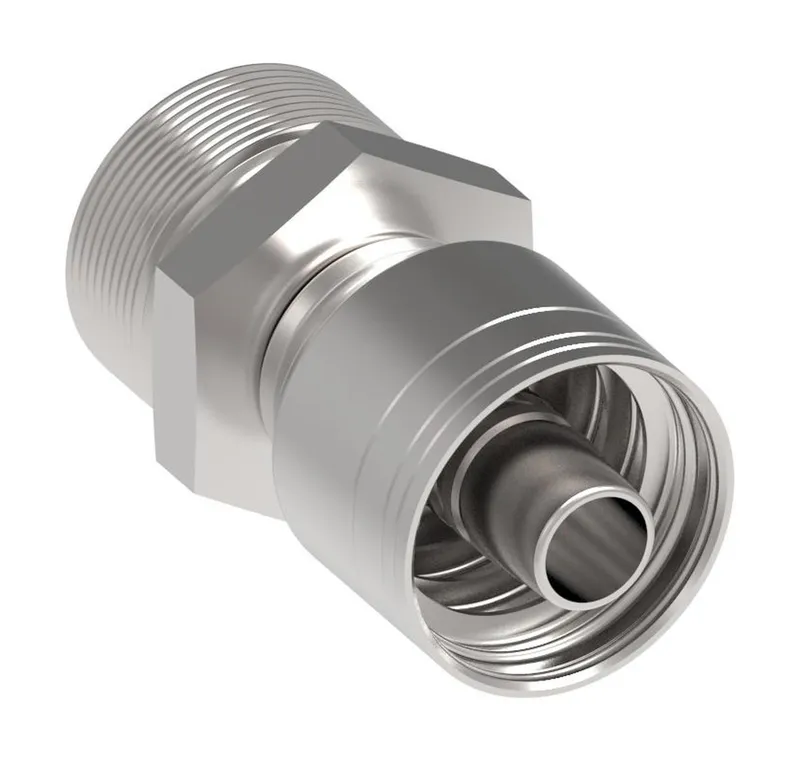

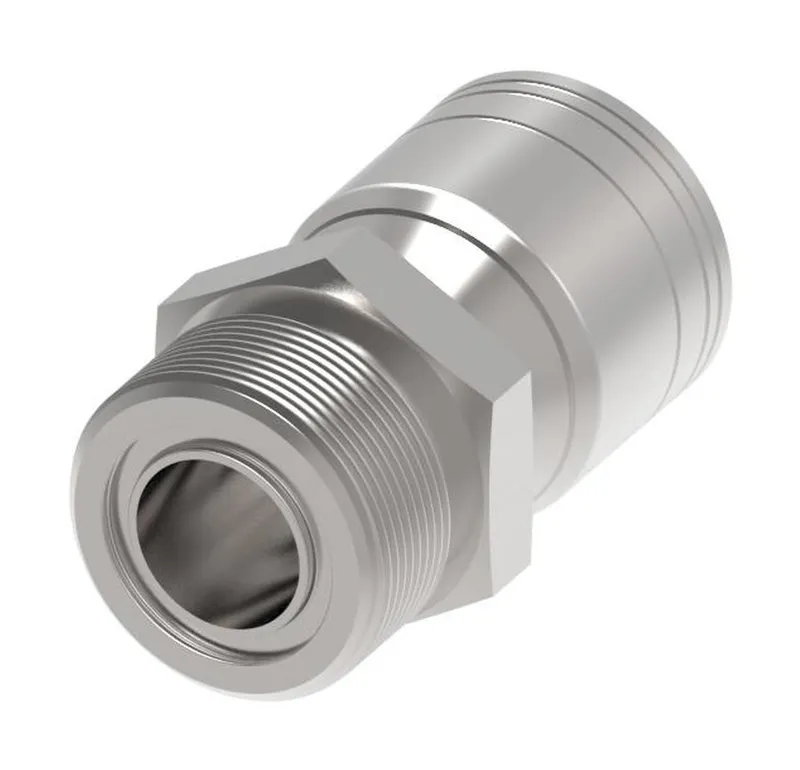

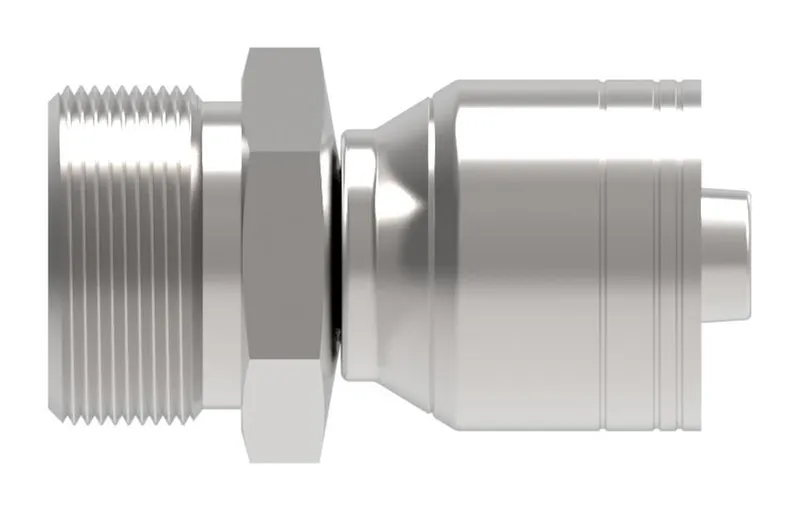

Danfoss 1A8MR8

HOSE FTG, 1A/08, ORS-M/08, CS, STR

MPN: 1A8MR8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A8MR8?

Danfoss HOSE FTG, 1A/08, ORS-M/08, CS, STR, manufacturer part number 1A8MR8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146169228
A dimension IN	2.130
A dimension MM	54.200
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End connection torque	32-35 lb-ft(43-47 Nm)
End size 1	-8
End Type 1	Male ORFS
Finish plating	Dura-Kote
Hex size 1 IN	0.870
Hex size 1 MM	22.098
Hex size 2 MM	22.000
Hose cut off factor IN	1.130
Hose cut off factor MM	28.800
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.220
Product height mm	30.988
Product length in	2.300
Product length mm	58.420
Product material	Carbon steel
Product width in	1.220
Product width mm	30.988
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	13/16-16 UN
Working pressure max BAR	621
Working pressure max PSI	9100
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
