Danfoss 1A8JM8

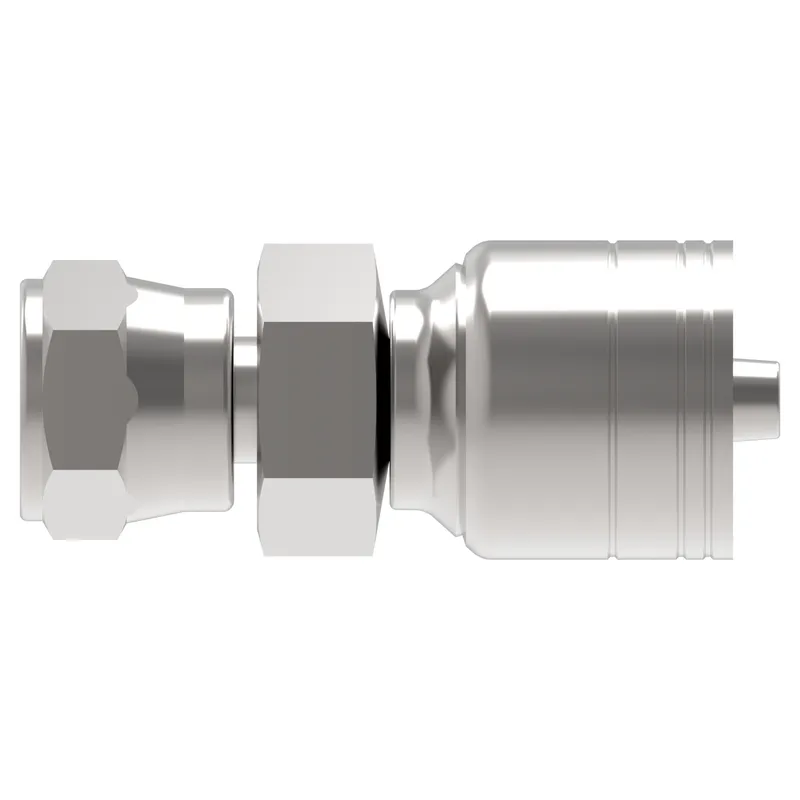

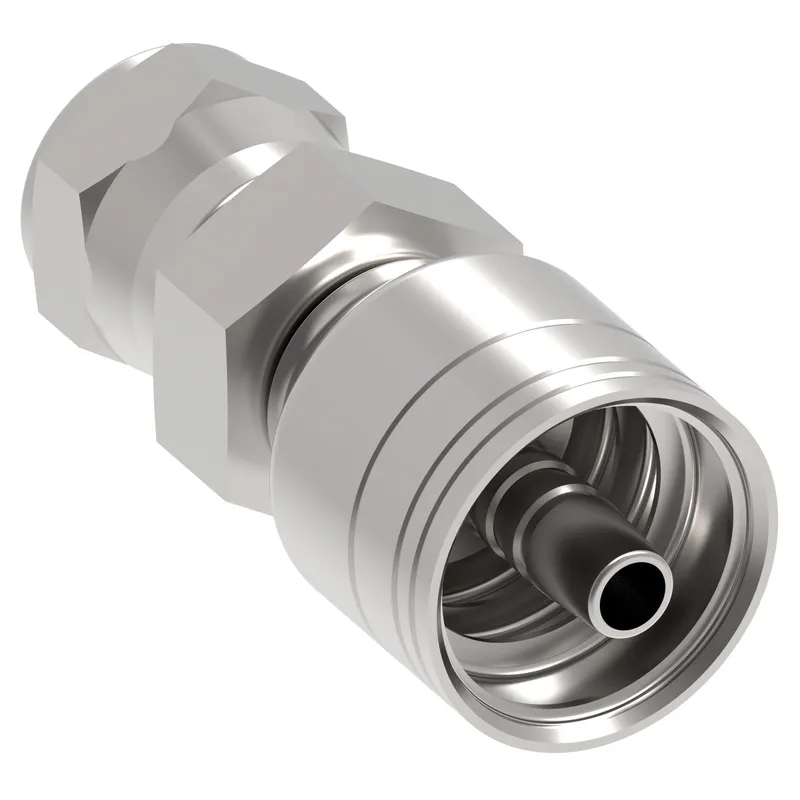

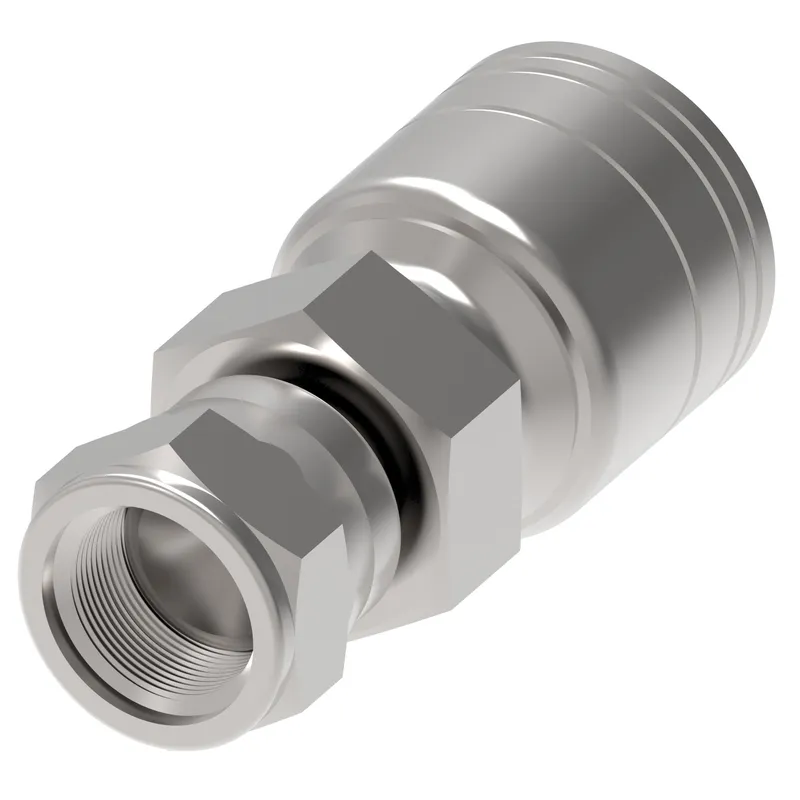

HOSE FTG, 1A/08, KSF/08, CS, STR

MPN: 1A8JM8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A8JM8?

Danfoss HOSE FTG, 1A/08, KSF/08, CS, STR, manufacturer part number 1A8JM8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146169198
A dimension IN	2.280
A dimension MM	58.000
Angle shape	Straight
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
End size 1	-8
End Type 1	JIS Kawasaki, Komatsu swivel
Finish plating	Dura-Kote
Hex size 2 MM	27.000
Hose cut off factor IN	1.110
Hose cut off factor MM	28.300
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.220
Product height mm	30.988
Product length in	2.280
Product length mm	57.912
Product material	Carbon steel
Product width in	1.220
Product width mm	30.988
Series	1A/Z Series
Thread size 1	G 1/2
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
