Braided hose and fittings Parts

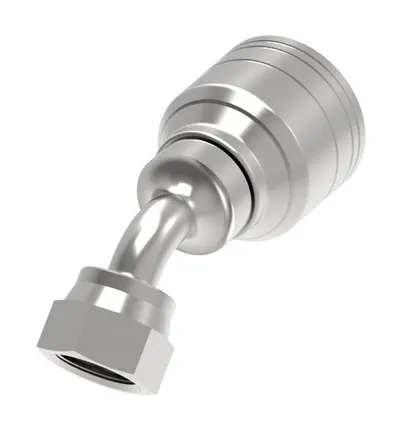

Danfoss

1AA12FRA10

HOSE FTG, 1A/10, ORS-F/12, CS, 45D

Danfoss

1AA12FR8

HOSE FTG, 1A/08, ORS-F/12, CS, STR

Danfoss

1AA12FR16

HOSE FTG, 1A/16, ORS-F/12, CS, STR

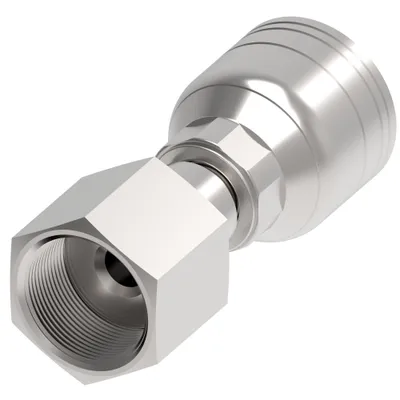

Danfoss

1AA12FR12C

HOSE FTG, 1A/12, ORS-F/12, AP, STR

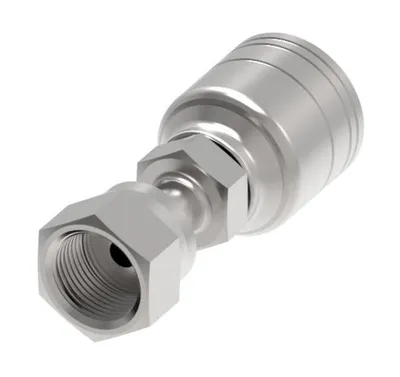

Danfoss

1AA12FR12

HOSE FTG, 1A/12, ORS-F/12, CS, STR

Danfoss

1AA12FR10

HOSE FTG, 1A/10, ORS-F/12, CS, STR

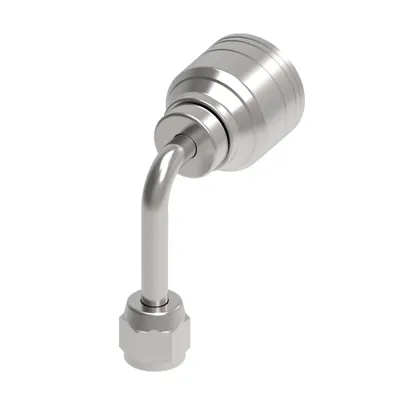

Danfoss

1AA12FJC12

HOSE FTG, 1A/12, JIC-F/12, CS, 90D

Danfoss

1AA12FJB12C

HOSE FTG, 1A/12, JIC-F/12, AP, 90D

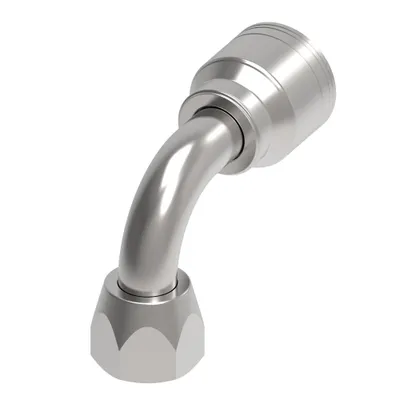

Danfoss

1AA12FJB12

HOSE FTG, 1A/12, JIC-F/12, CS, 90D

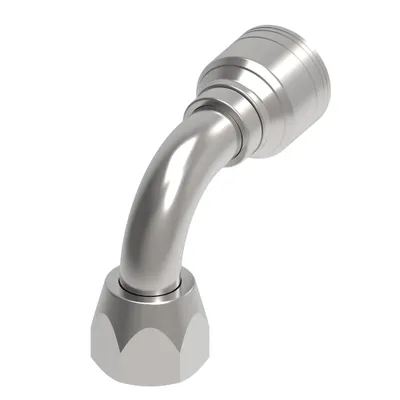

Danfoss

1AA12FJB10

HOSE FTG, 1A/10, JIC-F/12, CS, 90D

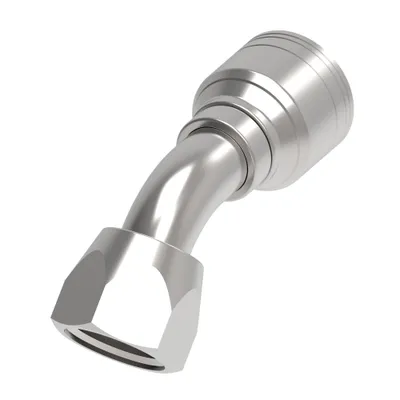

Danfoss

1AA12FJA8

HOSE FTG, 1A/08, JIC-F/12, CS, 45D

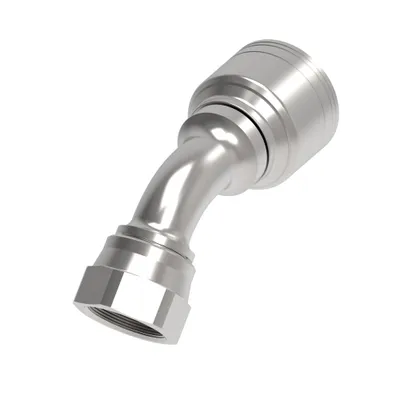

Danfoss

1AA12FJA12C

HOSE FTG, 1A/12, JIC-F/12, AP, 45D

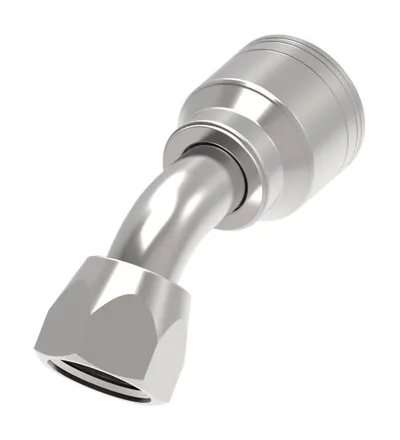

Danfoss

1AA12FJA12

HOSE FTG, 1A/12, JIC-F/12, CS, 45D

Danfoss

1AA12FJA10

HOSE FTG, 1A/10, JIC-F/12, CS, 45D

Danfoss

1AA12FJ16

HOSE FTG, 1A/16, JIC-F/12, CS, STR

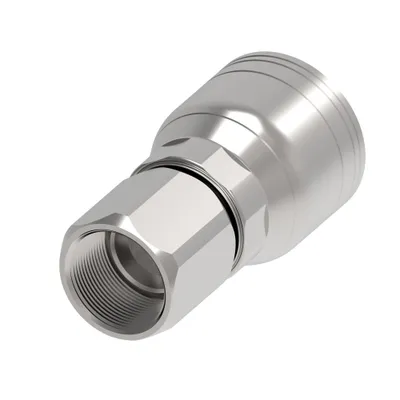

Danfoss

1AA12FJ12C

HOSE FTG, 1A/12, JIC-F/12, AP, STR

Danfoss

1AA12FJ12

HOSE FTG, 1A/12, JIC-F/12, CS, STR

Danfoss

1AA12FJ10

HOSE FTG, 1A/10, JIC-F/12, CS, STR

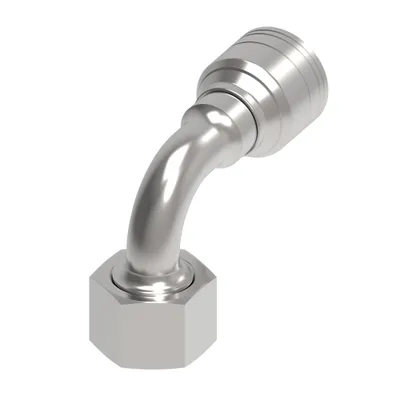

Danfoss

1AA12DSB8C

HOSE FTG, 1A/08, DKOH-B/12, AP, 90D

Danfoss

1AA12DS8C

HOSE FTG, 1A/08, DKOH-B/12, AP, STR

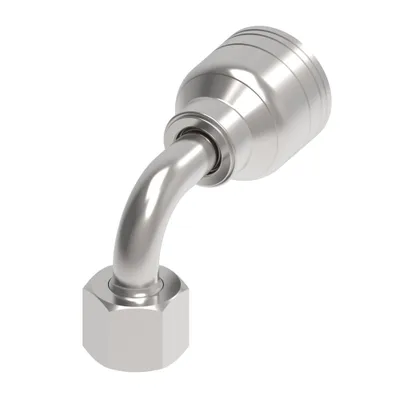

Danfoss

1AA12DLB8C

HOSE FTG, 1A/08, DKOL/12, AP, 90D

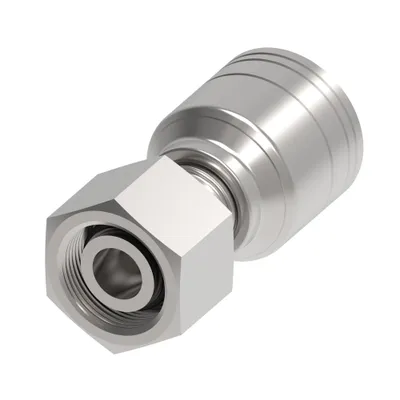

Danfoss

1AA12DL8C

HOSE FTG, 1A/08, DKOL/12, AP, STR

Danfoss

1AA12BF12C

HOSE FTG, 1A/12, BF/12, AP, STR

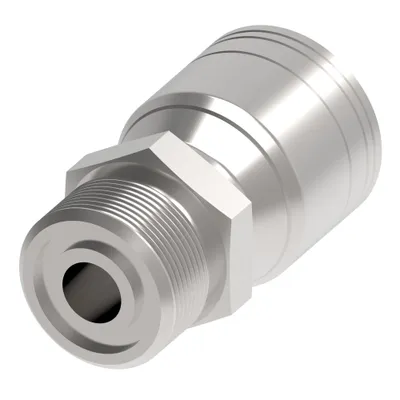

Danfoss

1AA10MR8

HOSE FTG, 1A/08, ORS-M/10, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor MM	Product length in	Product length mm
1AA12FRA10	3.390	86.100	60.000	4.760	120.904
1AA12FR8	2.670	67.800	41.300	3.360	85.344
1AA12FR16	3.190	81.100	47.300	3.760	95.504
1AA12FR12C	2.790	70.800	43.700	3.470	88.138
1AA12FR12	2.850	72.300	43.700	3.470	88.138
1AA12FR10	2.640	67.000	41.500	3.360	85.344
1AA12FJC12	3.420	86.900	55.200	3.810	96.774
1AA12FJB12C	3.410	86.600	59.700	3.420	86.868
1AA12FJB12	3.420	86.900	55.200	4.430	112.522
1AA12FJB10	3.180	80.900	54.800	3.930	99.822
1AA12FJA8	3.290	83.600	58.100	4.660	118.364
1AA12FJA12C	3.450	87.700	60.600	4.640	117.856
1AA12FJA12	3.490	88.600	56.900	4.630	117.602
1AA12FJA10	3.250	82.600	56.500	4.580	116.330
1AA12FJ16	3.130	79.400	45.600	3.130	79.502
1AA12FJ12C	2.720	69.000	41.900	2.840	72.136
1AA12FJ12	2.210	56.100	27.600	2.900	73.660
1AA12FJ10	2.640	67.100	41.500	2.720	69.088
1AA12DSB8C	2.660	67.600	42.400	3.420	86.868
1AA12DS8C	2.290	58.200	32.700	2.570	62.278
1AA12DLB8C	2.660	67.400	42.400	3.270	83.058
1AA12DL8C	2.130	54.100	28.600	2.390	60.706
1AA12BF12C	2.060	52.400	25.300	2.540	64.516
1AA10MR8	2.170	55.200	29.700	2.340	59.436

Common to all listed parts

Construction Style	Crimp
Series	1A/Z Series
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
