Danfoss 1A8MR6

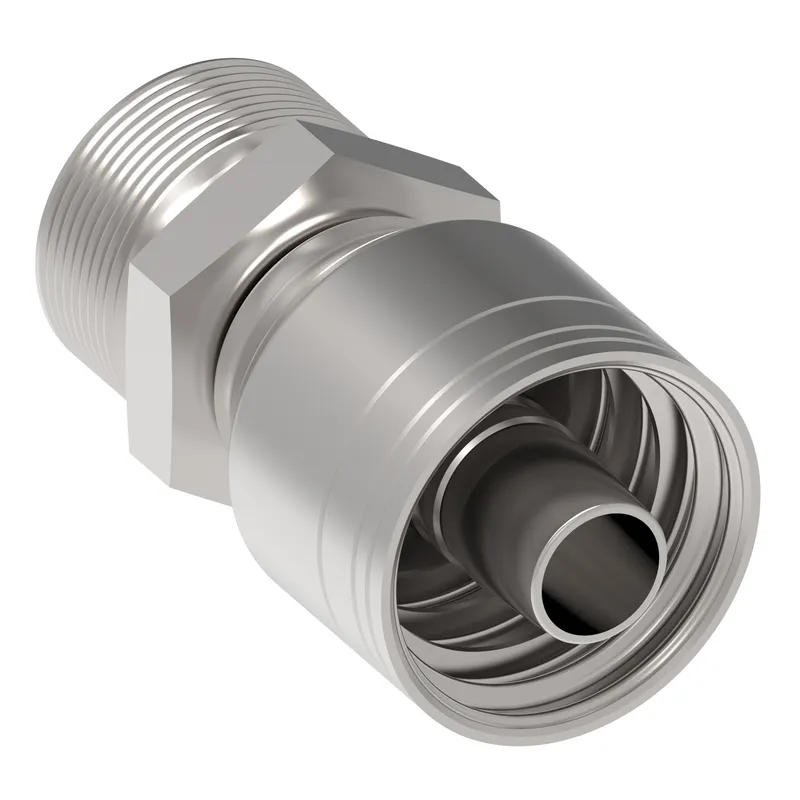

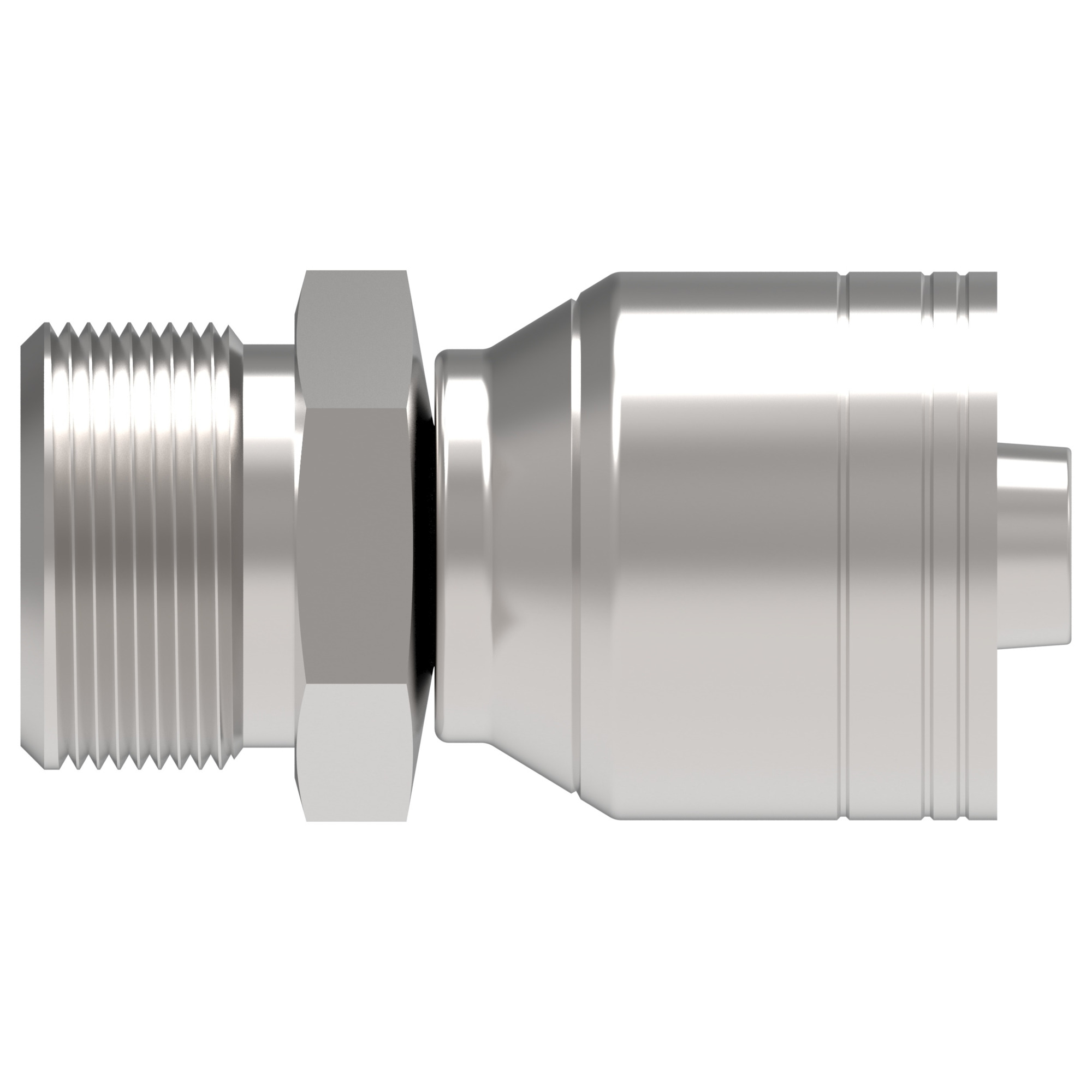

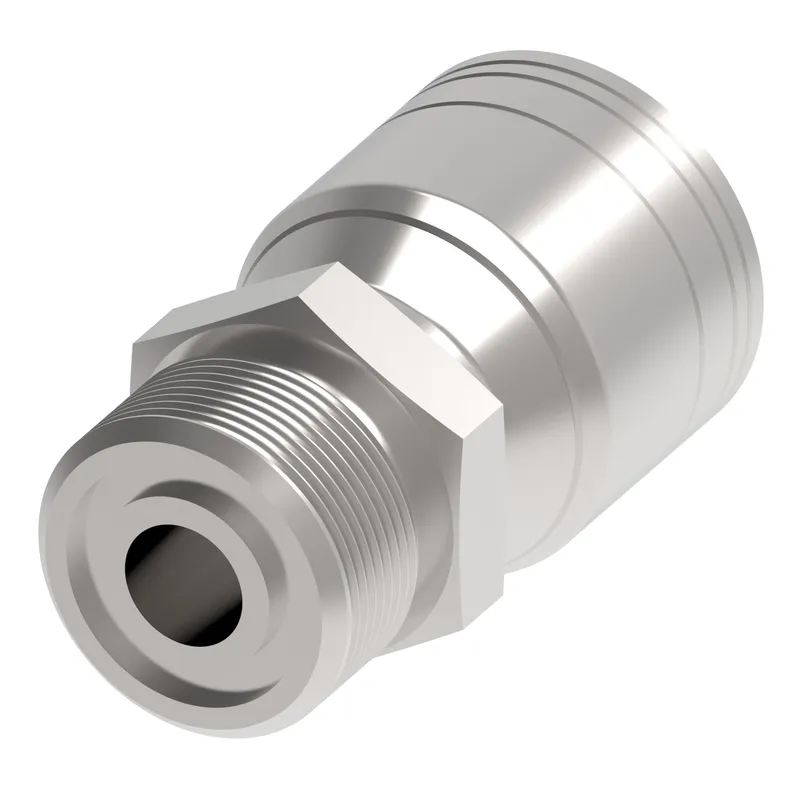

HOSE FTG, 1A/06, ORS-M/08, CS, STR

MPN: 1A8MR6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A8MR6?

Danfoss HOSE FTG, 1A/06, ORS-M/08, CS, STR, manufacturer part number 1A8MR6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.030
A dimension MM	51.600
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End connection torque	32-35 lb-ft(43-47 Nm)
End size 1	-8
End Type 1	Male ORFS
Finish plating	Dura-Kote
Hex size 1 IN	0.000
Hex size 1 MM	0.000
Hex size 2 MM	22.000
Hose cut off factor IN	1.140
Hose cut off factor MM	29.000
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.066
Product height mm	27.100
Product length in	1.950
Product length mm	49.550
Product material	Carbon steel
Product width in	1.066
Product width mm	27.1
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	13/16-16 UN
Working pressure max BAR	621
Working pressure max PSI	9100
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
