Danfoss 1A8GM4

HOSE FTG, 1A/04, AK/08, CS, STR

MPN: 1A8GM4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A8GM4?

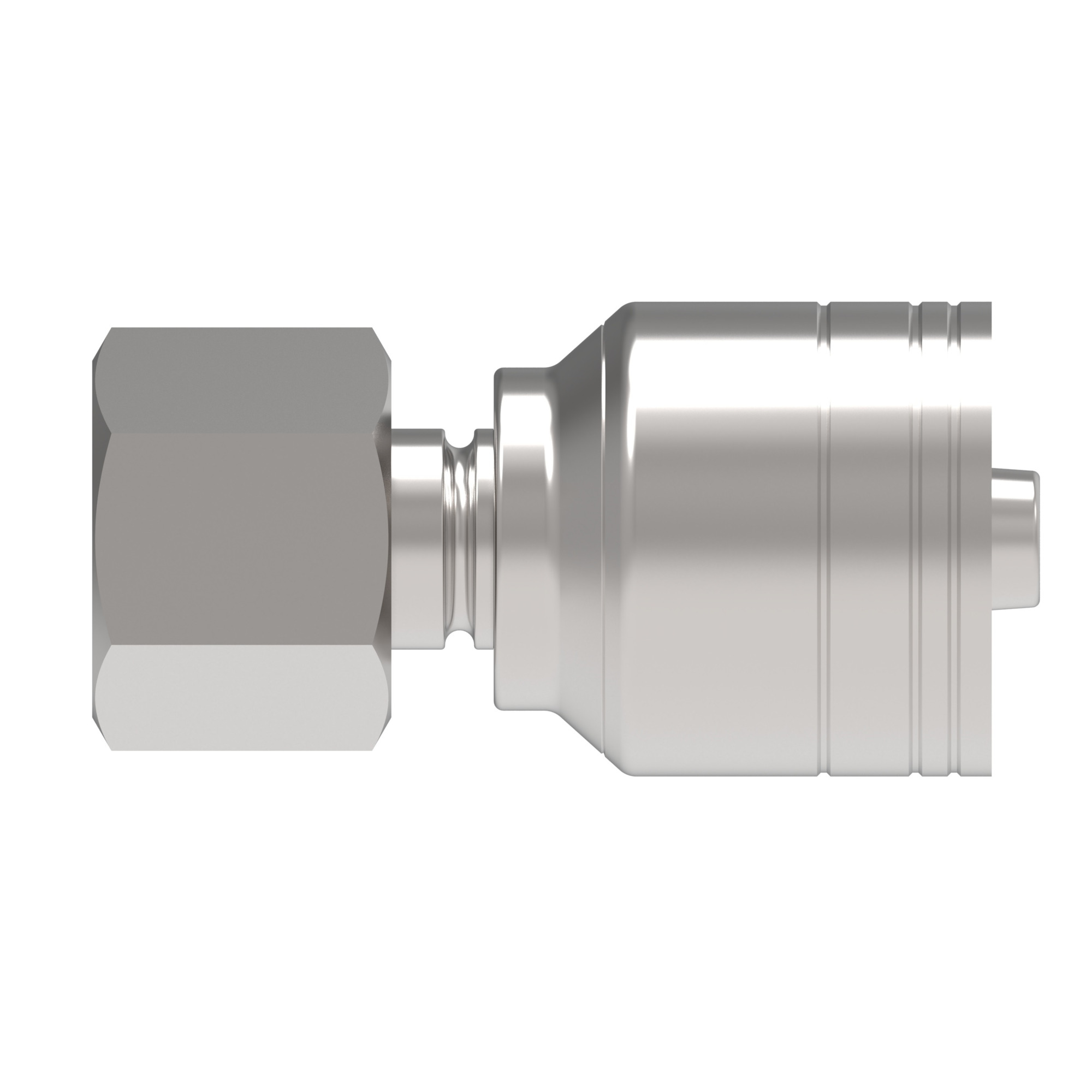

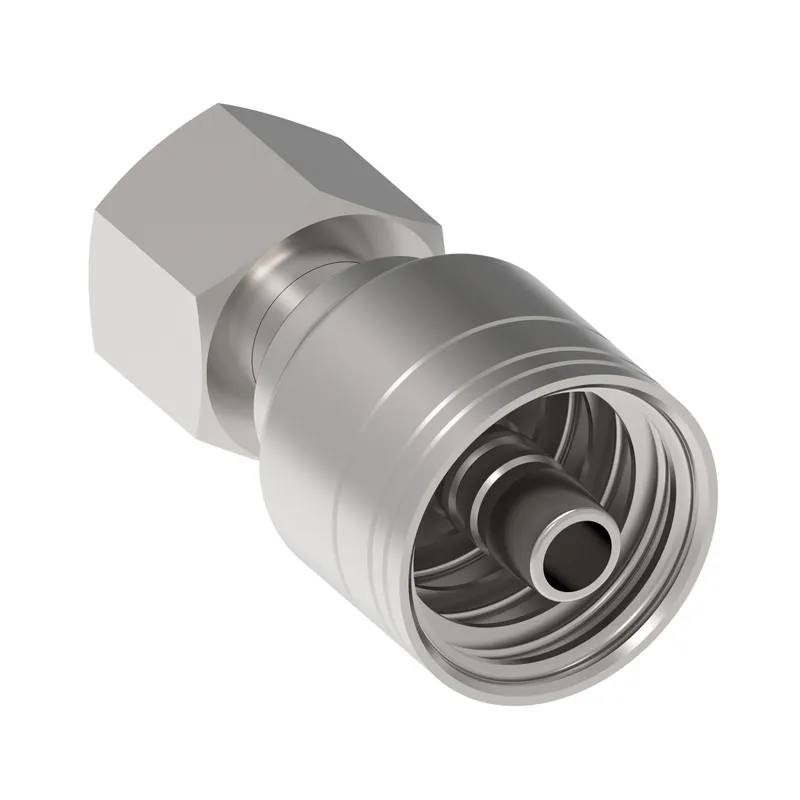

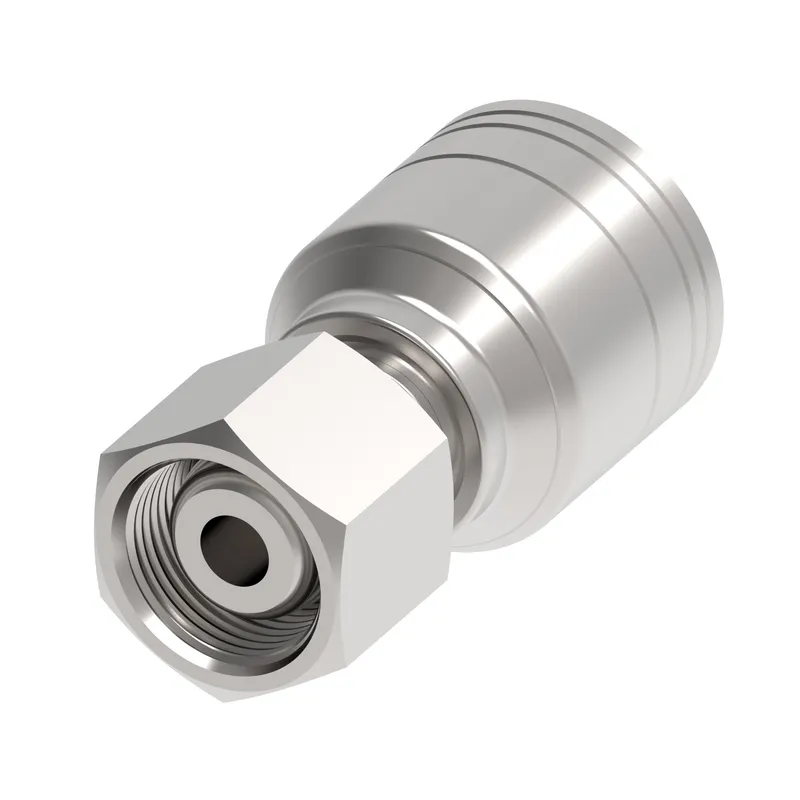

Danfoss HOSE FTG, 1A/04, AK/08, CS, STR, manufacturer part number 1A8GM4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.850
A dimension MM	47.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End size 1	-8
End Type 1	Female globeseal 24/60 swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.669
Hex size 1 MM	17.000
Hose cut off factor IN	0.930
Hose cut off factor MM	23.600
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.880
Product height mm	22.352
Product length in	1.850
Product length mm	46.990
Product material	Carbon steel
Product width in	0.882
Product width mm	22.402
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	M14x1.5
Working pressure max BAR	400
Working pressure max PSI	5800
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
