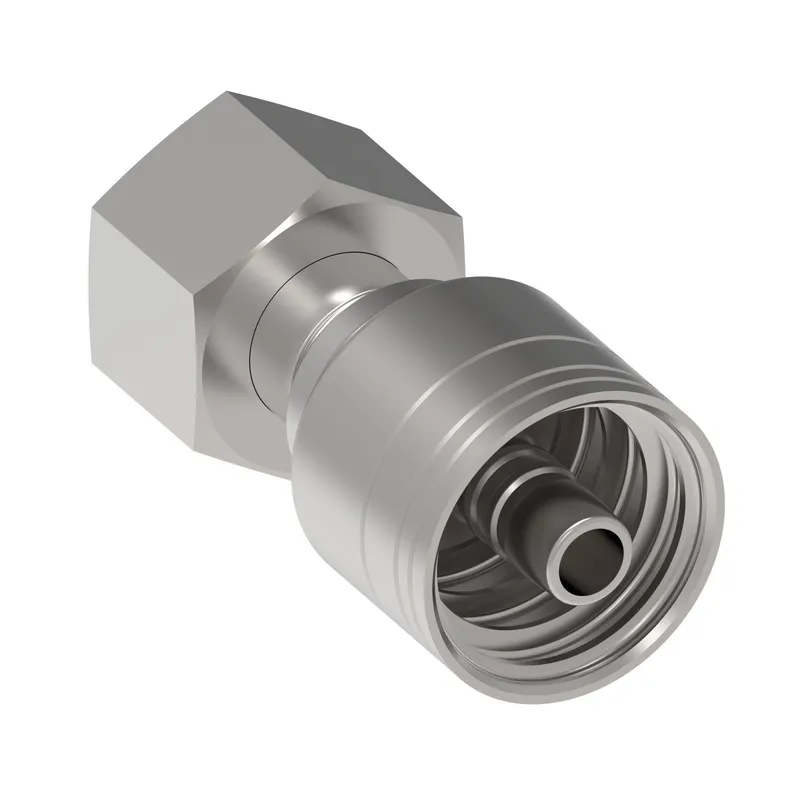

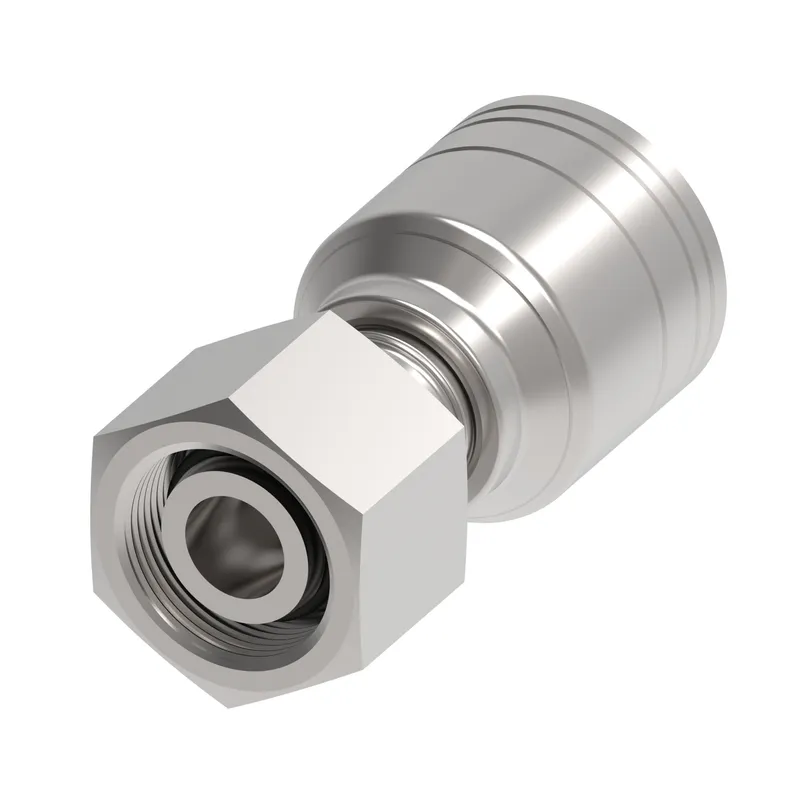

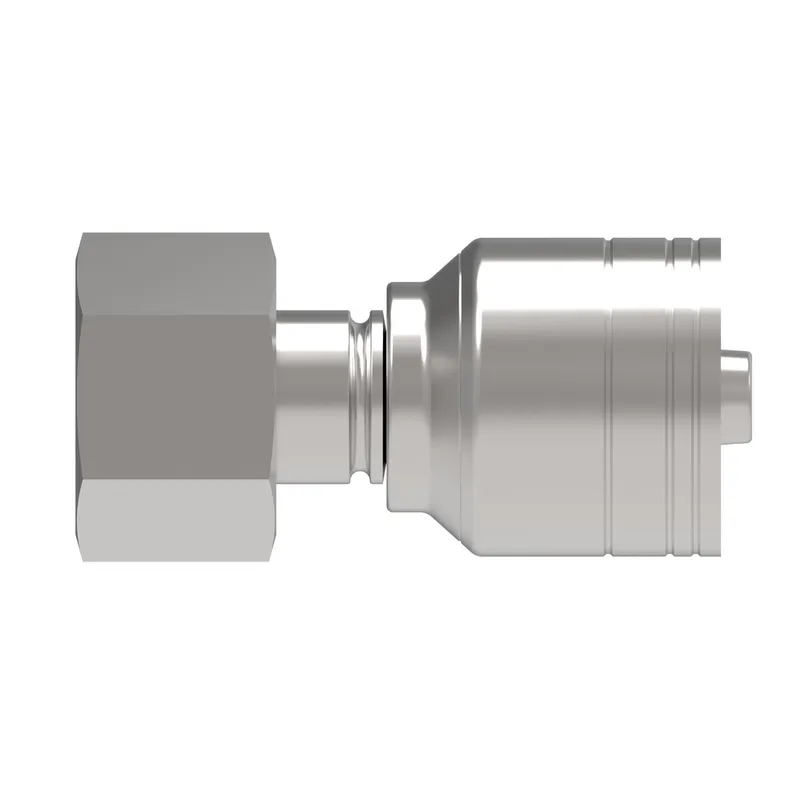

Danfoss 1AA10DL6C

HOSE FTG, 1A/06, DKOL/10, AP, STR

MPN: 1AA10DL6C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA10DL6C?

Danfoss HOSE FTG, 1A/06, DKOL/10, AP, STR, manufacturer part number 1AA10DL6C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146125033
A dimension IN	1.860
A dimension MM	47.200
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End connection torque	40-43 lb-ft(55-57 Nm)
End size 1	-10
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.875
Hex size 1 MM	22.225
Hose cut off factor IN	1.020
Hose cut off factor MM	25.900
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.060
Product height mm	26.924
Product length in	2.070
Product length mm	52.578
Product material	316 Stainless steel
Product width in	1.067
Product width mm	27.101
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M18x1.5
Working pressure max BAR	250.00
Working pressure max PSI	3650.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

1AA10DL6C: frequently asked questions

When can 1AA10DL6C be shipped?

1AA10DL6C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AA10DL6C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AA10DL6C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA10DL6C, subject to availability and destination.
