Danfoss 1A8MCA8

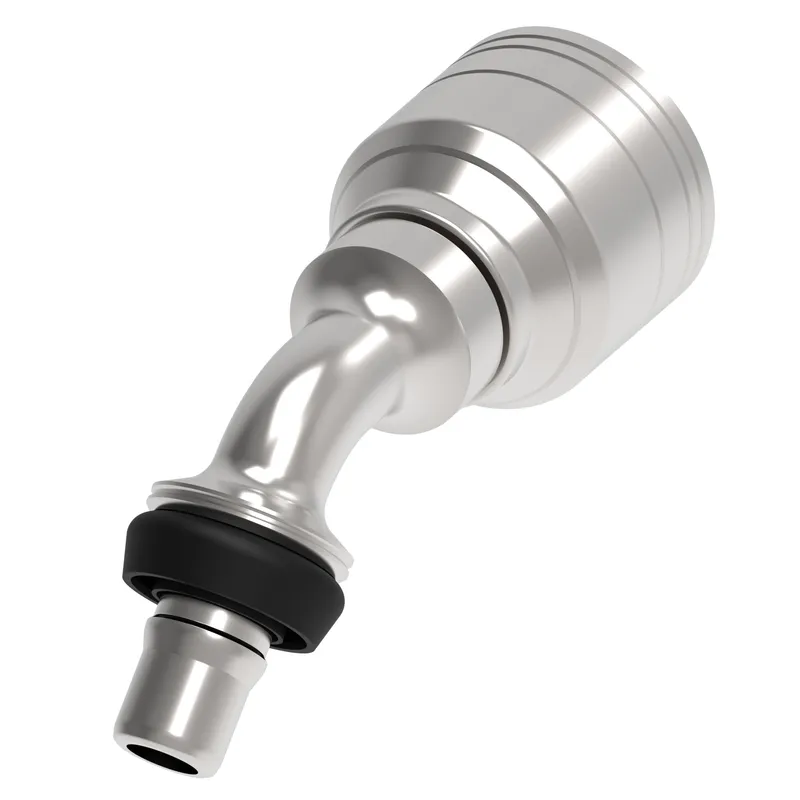

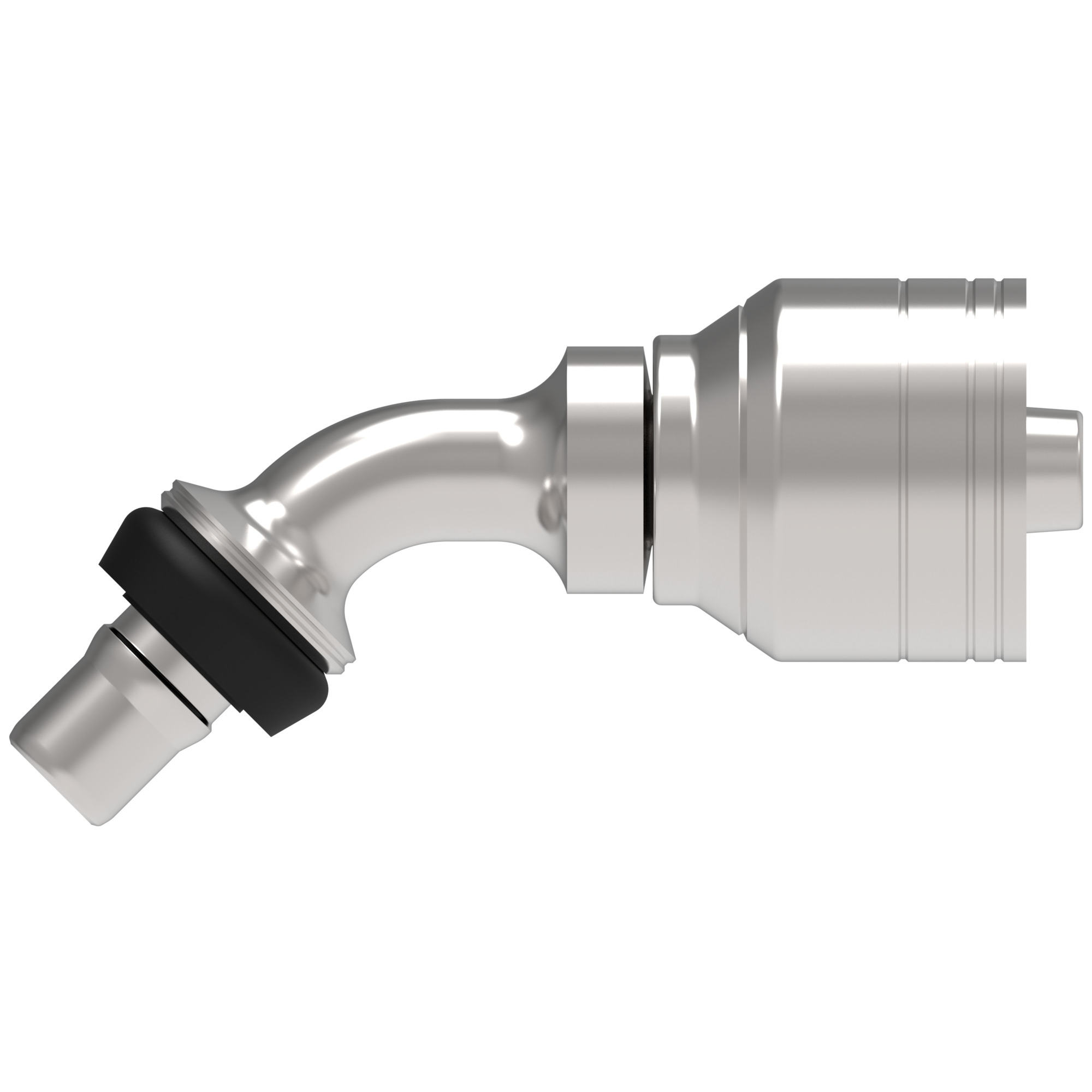

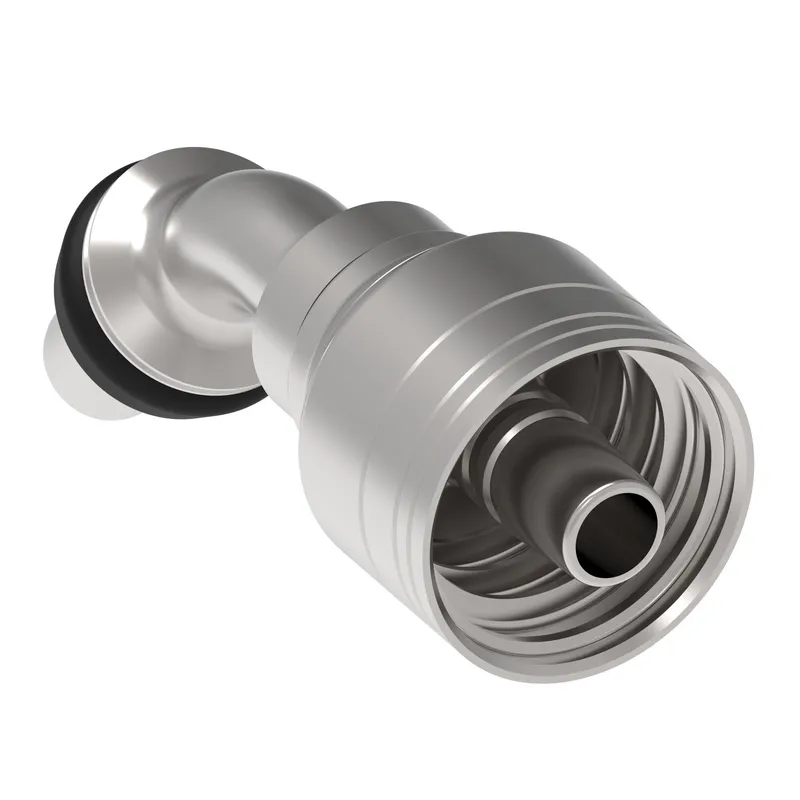

HOSE FTG, 1A/08, STC-M/08, CS, 45D

MPN: 1A8MCA8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1A8MCA8?

Danfoss HOSE FTG, 1A/08, STC-M/08, CS, 45D, manufacturer part number 1A8MCA8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146124999
A dimension IN	3.370
A dimension MM	85.700
Angle shape	45 Degree
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.170
Drop dimension MM	29.60
End size 1	-8
End Type 1	Male STC connector
Finish plating	Zinc plating
Hose cut off factor IN	2.370
Hose cut off factor MM	60.200
Hose size	-8
Inside diameter IN	0.350
Inside diameter MM	8.800
Product height in	2.060
Product height mm	52.324
Product length in	3.780
Product length mm	96.012
Product material	Carbon steel
Product width in	1.220
Product width mm	30.988
Seal material	Hydrogenated Nitrile (HNBR)
Series	1A/Z Series
Working pressure max BAR	293.00
Working pressure max PSI	4250.00
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
