Braided hose and fittings Parts

Danfoss

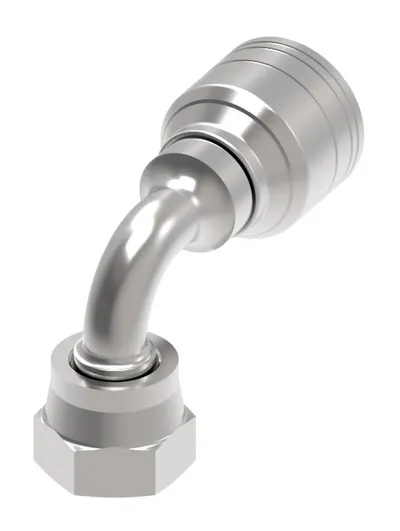

1A8FRB6

HOSE FTG, 1A/06, ORS-F/08, CS, 90D

Danfoss

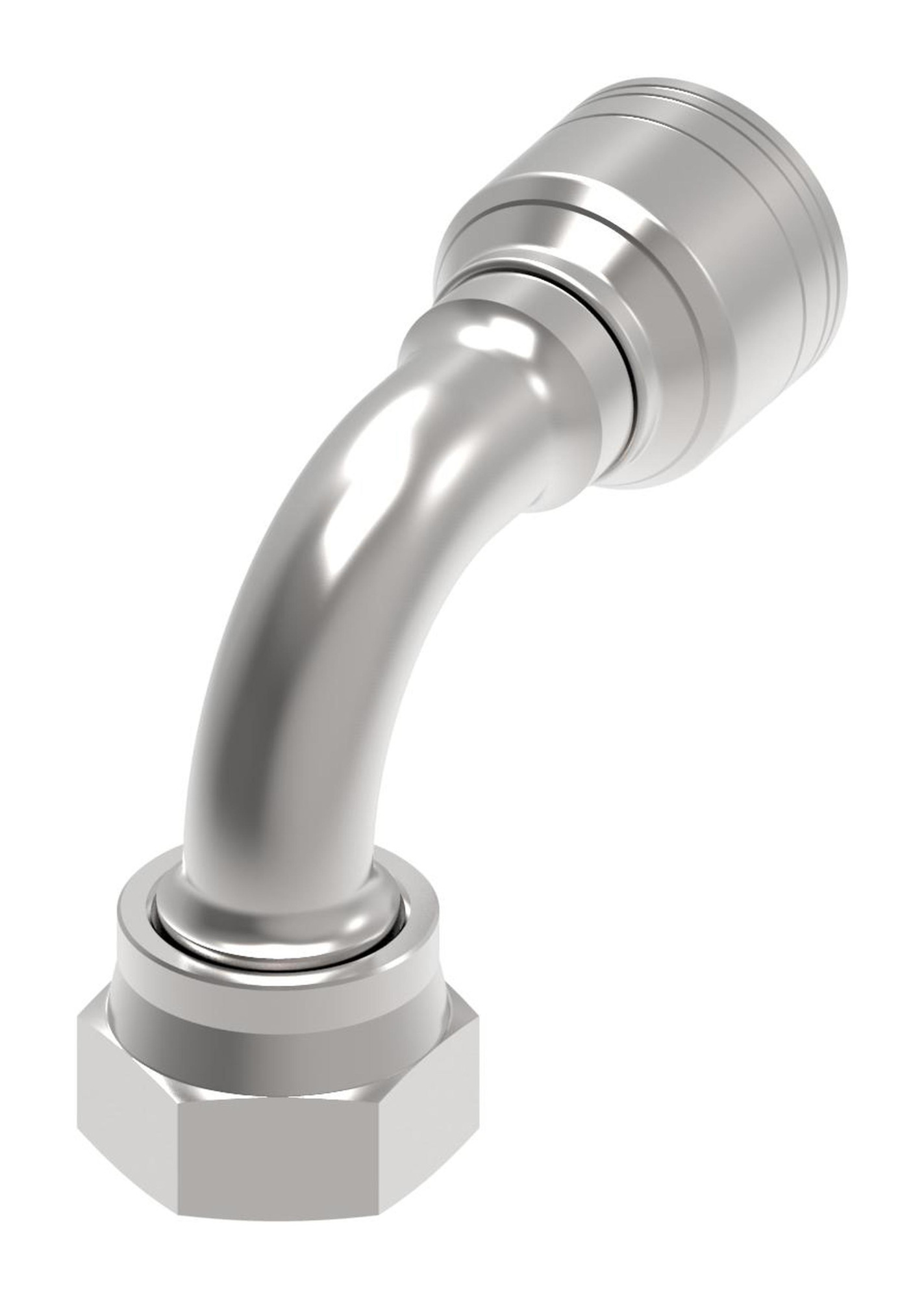

1A8FRB10

HOSE FTG, 1A/10, ORS-F/08, CS, 90D

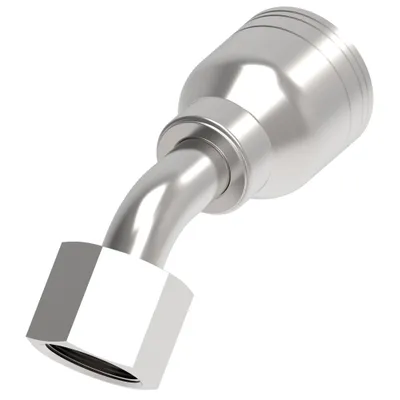

Danfoss

1A8FRA8

HOSE FTG, 1A/08, ORS-F/08, CS, 45D

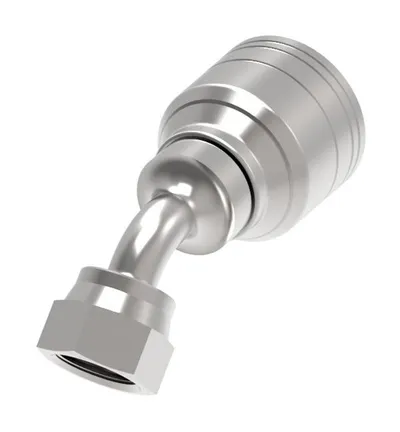

Danfoss

1A8FRA6

HOSE FTG, 1A/06, ORS-F/08, CS, 45D

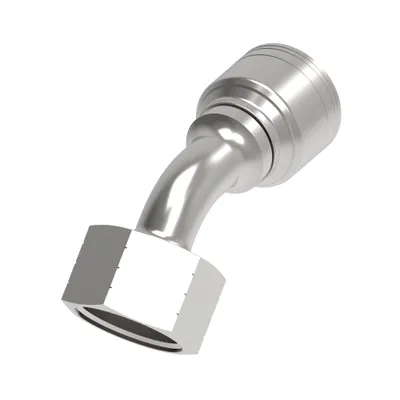

Danfoss

1A8FRA10

HOSE FTG, 1A/10, ORS-F/08, CS, 45D

Danfoss

1A8FR8

HOSE FTG, 1A/08, ORS-F/08, CS, STR

Danfoss

1A8FR6

HOSE FTG, 1A/06, ORS-F/08, CS, STR

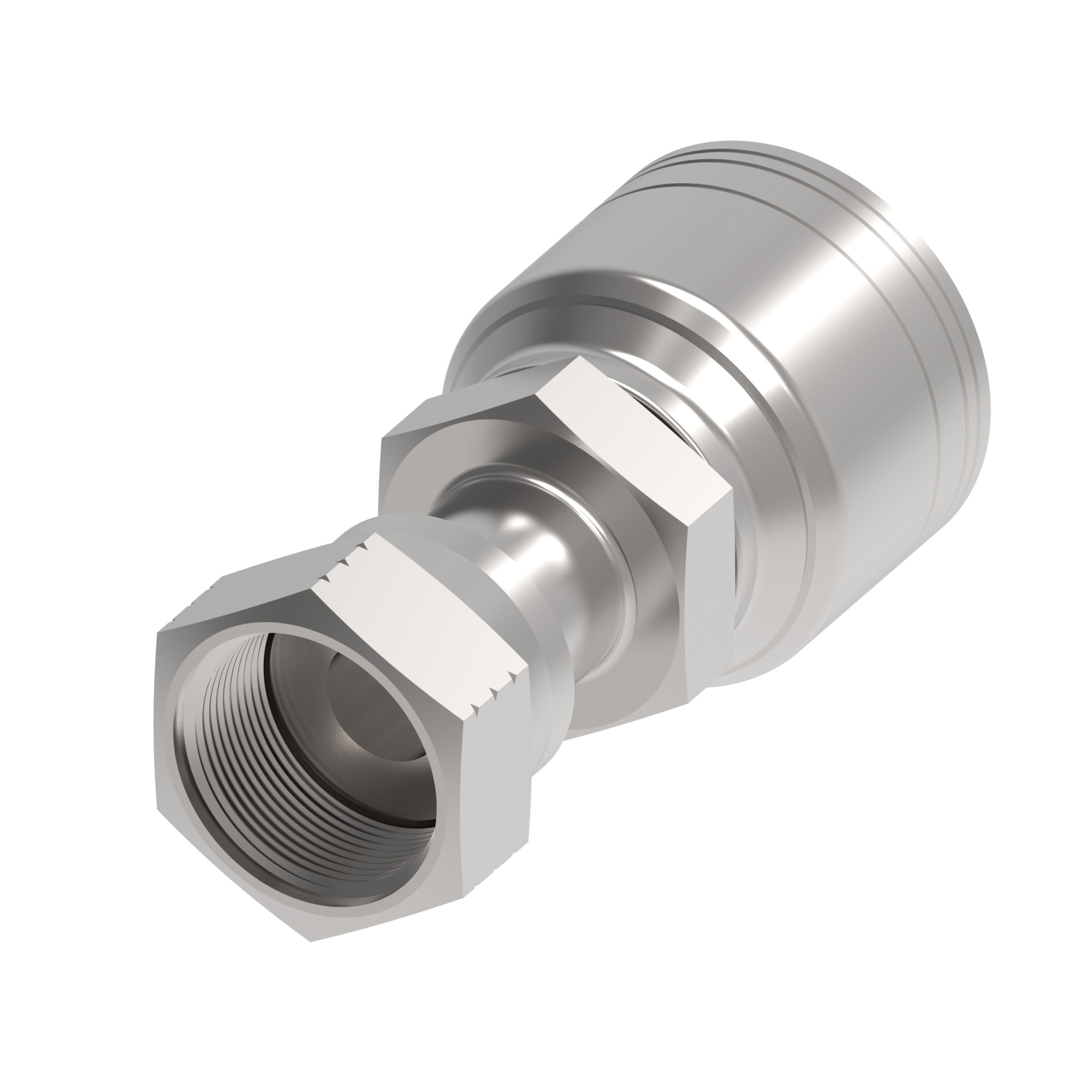

Danfoss

1A8FR10

HOSE FTG, 1A/10, ORS-F/08, CS, STR

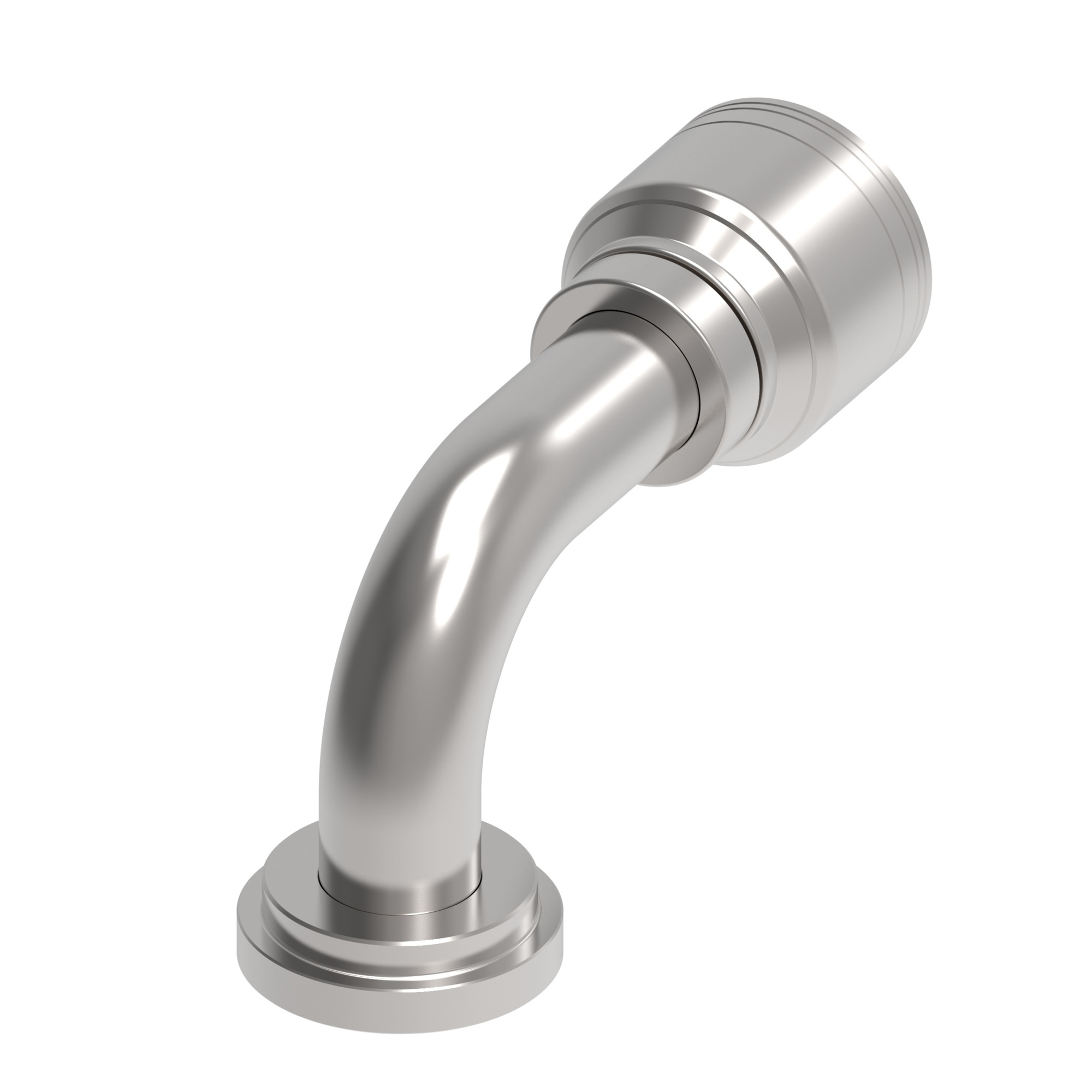

Danfoss

1A8FLB8

HOSE FTG, 1A/08, C61/08, CS, 90D

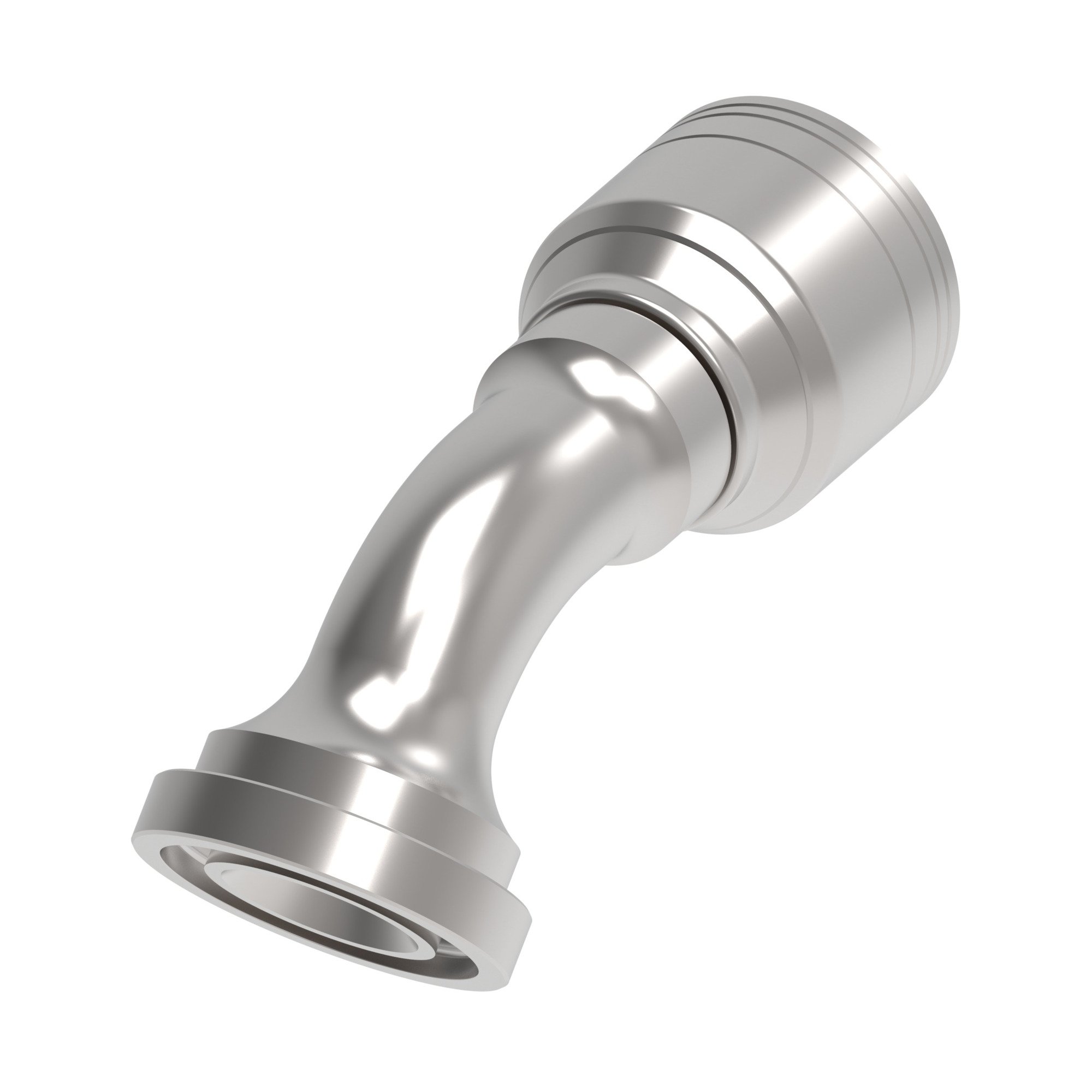

Danfoss

1A8FLA8

HOSE FTG, 1A/08, C61/08, CS, 45D

Danfoss

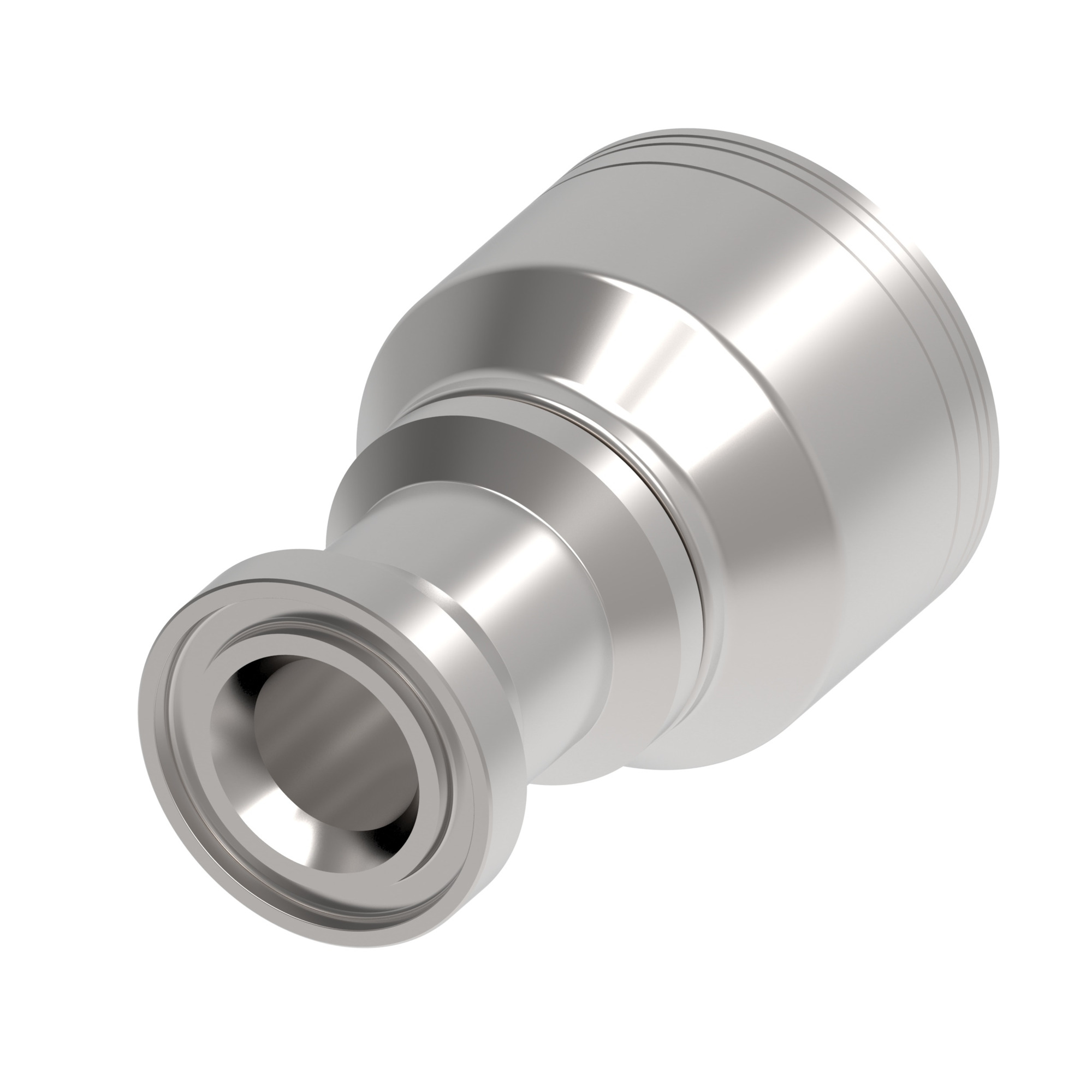

1A8FL8

HOSE FTG, 1A/08, C61/08, CS, STR

Danfoss

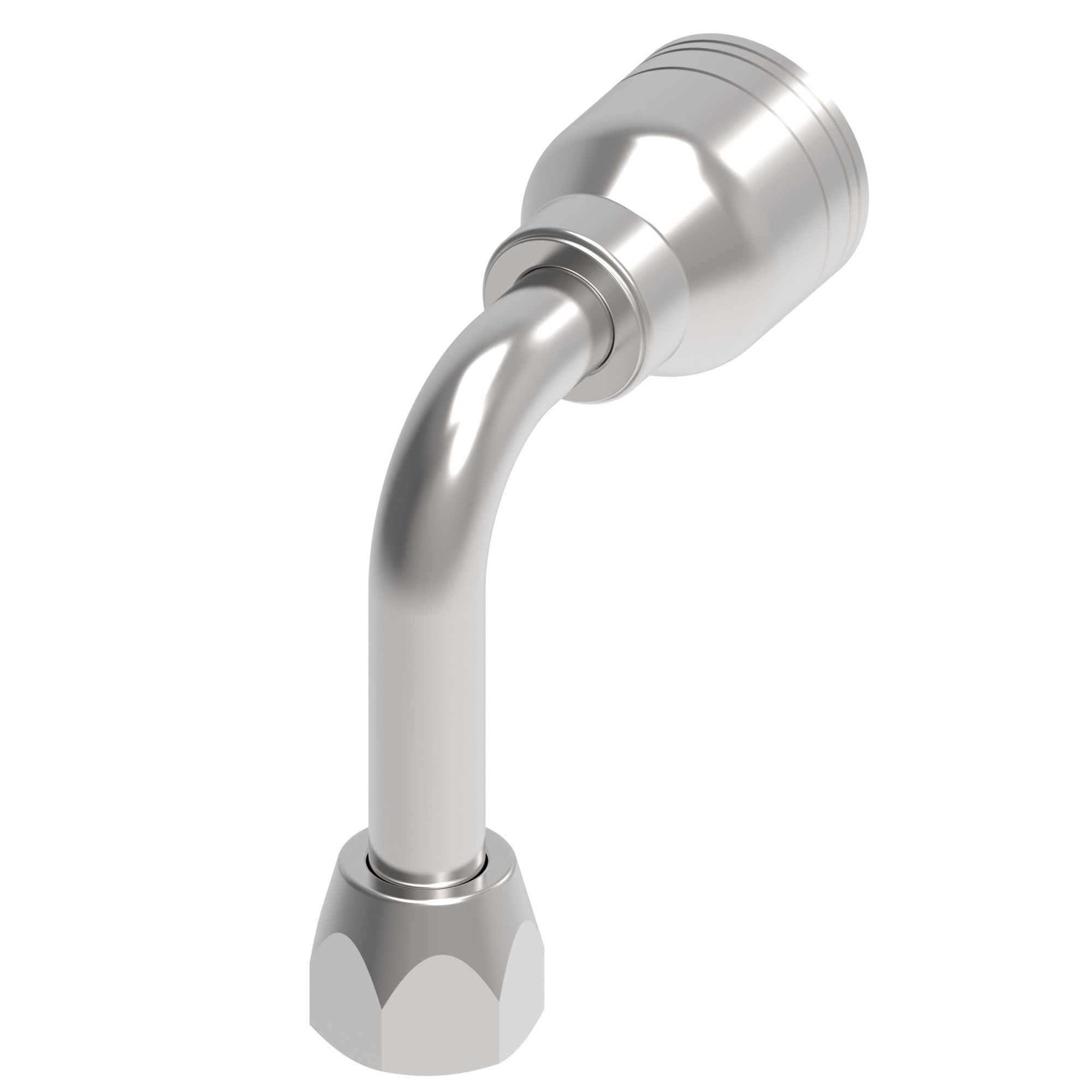

1A8FJC8

HOSE FTG, 1A/08, JIC-F/08, CS, 90D

Danfoss

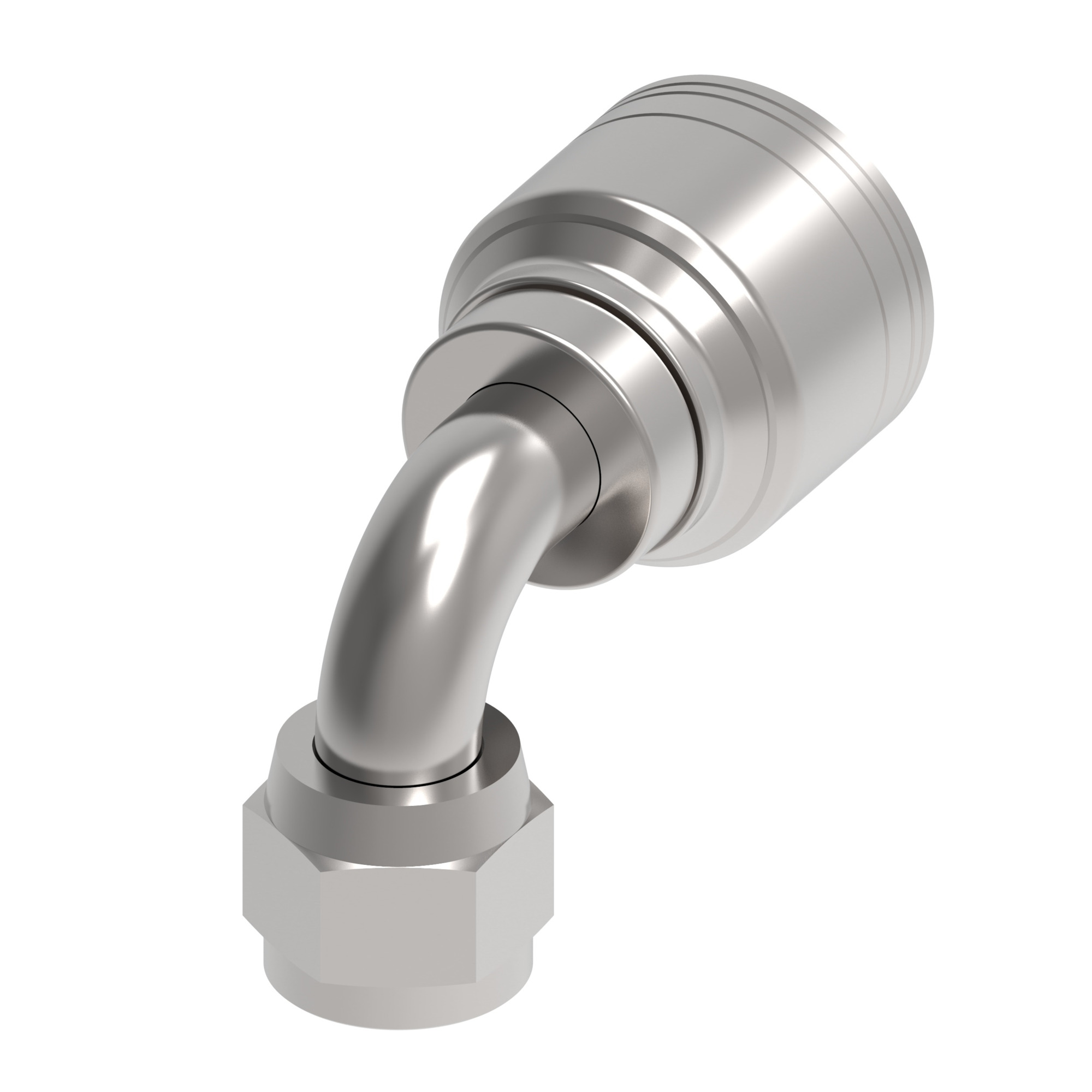

1A8FJB8.035

HOSE FTG, 1A/08, JIC-F/08, CS, 90D

Danfoss

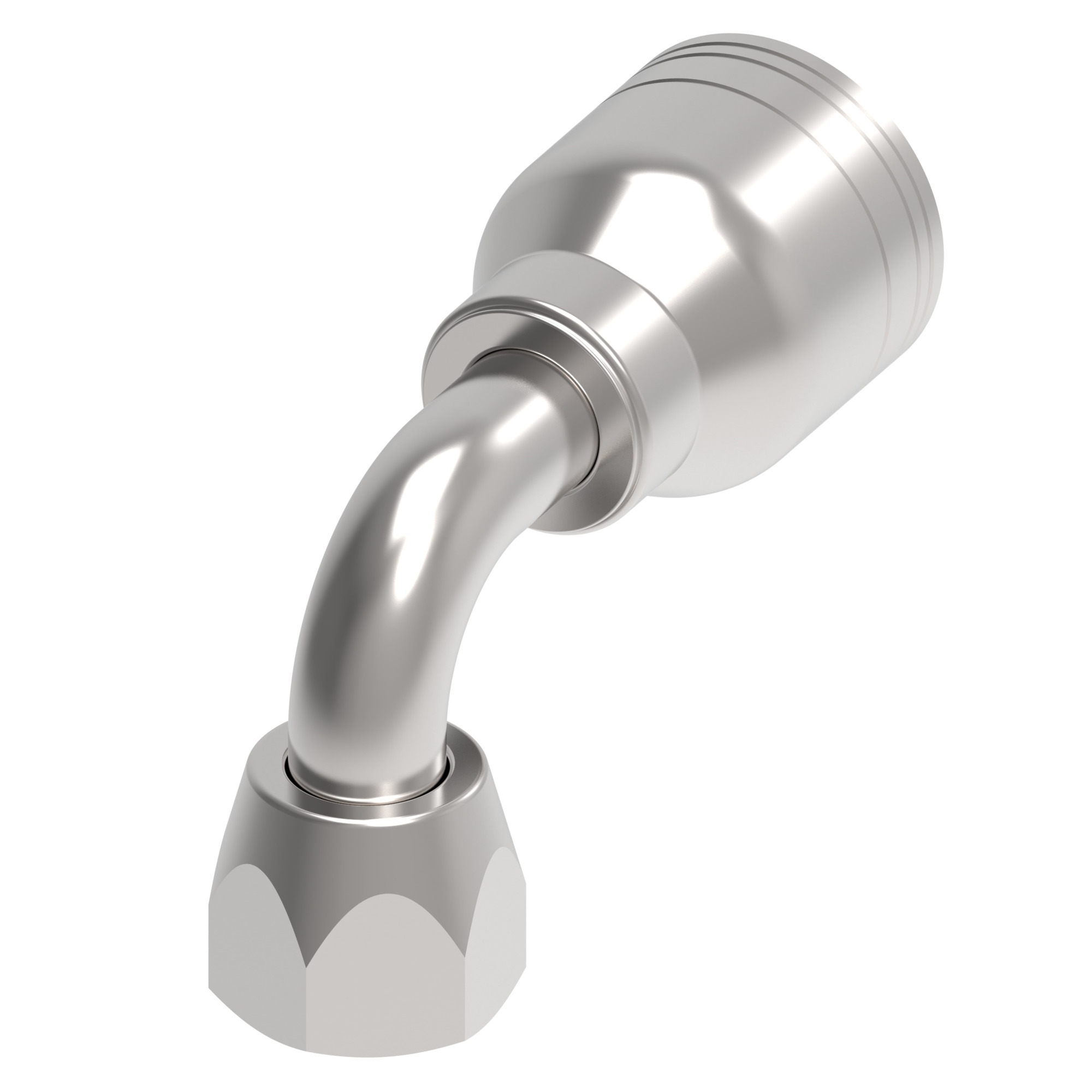

1A8FJB8

HOSE FTG, 1A/08, JIC-F/08, CS, 90D

Danfoss

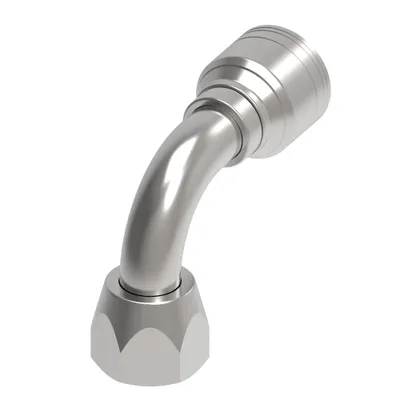

1A8FJB6

HOSE FTG, 1A/06, JIC-F/08, CS, 90D

Danfoss

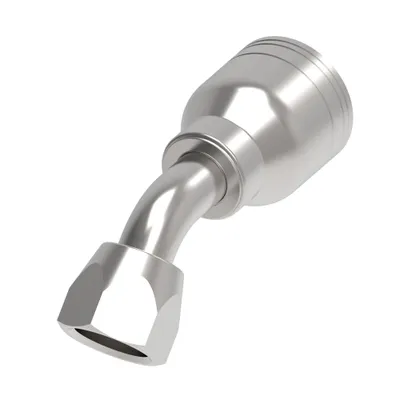

1A8FJA8

HOSE FTG, 1A/08, JIC-F/08, CS, 45D

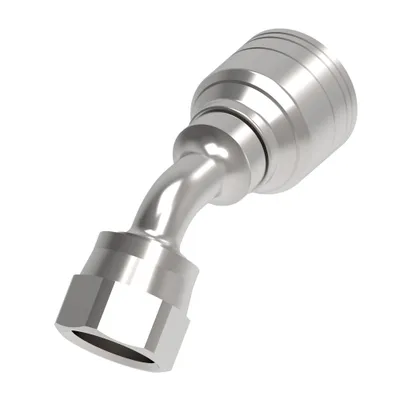

Danfoss

1A8FJA6

HOSE FTG, 1A/06, JIC-F/08, CS, 45D

Danfoss

1A8FJ8

HOSE FTG, 1A/08, JIC-F/08, CS, STR

Danfoss

1A8FJ10

HOSE FTG, 1A/10, JIC-F/08, CS, STR

Danfoss

1A8EK6

HOSE FTG, 1A/06, DKH-M/08, CS, STR

Danfoss

1A8EK5

HOSE FTG, 1A/05, DKH-M/08, CS, STR

Danfoss

1A8DSB6C

HOSE FTG, 1A/06, DKOH-B/08, AP, 90D

Danfoss

1A8DSB5

HOSE FTG, 1A/05, DKOH-B/08, CS, 90D

Danfoss

1A8DSA6

HOSE FTG, 1A/06, DKOH-B/08, CS, 45D

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor MM	Product length in	Product length mm
1A8FRB6	2.460	62.500	41.200	3.096	78.500
1A8FRB10	2.830	72.000	42.600	3.300	83.820
1A8FRA8	2.930	74.500	45.500	3.860	98.044
1A8FRA6	2.580	65.600	44.300	3.640	92.456
1A8FRA10	2.830	71.800	45.700	3.750	95.250
1A8FR8	2.550	64.700	38.100	2.550	64.770
1A8FR6	2.140	54.400	33.600	2.200	55.880
1A8FR10	2.540	64.400	38.300	3.030	76.962
1A8FLB8	2.670	67.800	42.300	3.420	86.868
1A8FLA8	2.980	75.800	50.300	4.520	114.808
1A8FL8	3.060	77.800	52.300	3.220	81.788
1A8FJC8	2.710	68.900	39.200	3.210	81.534
1A8FJB8.035	2.560	65.200	35.500	2.753	69.950
1A8FJB8	2.580	65.500	36.000	3.450	87.630
1A8FJB6	2.260	57.400	36.100	2.840	72.136
1A8FJA8	2.810	71.300	42.000	4.130	104.902
1A8FJA6	2.500	63.400	42.100	3.520	89.408
1A8FJ8	2.490	63.200	36.700	2.610	66.294
1A8FJ10	2.520	64.100	38.000	2.640	67.056
1A8EK6	1.980	50.300	25.000	1.980	50.292
1A8EK5	1.900	48.200	24.300	1.897	48.200
1A8DSB6C	2.360	59.900	34.600	2.830	71.882
1A8DSB5	2.240	56.900	33.000	2.712	68.900
1A8DSA6	2.610	66.300	41.000	3.800	96.520

Common to all listed parts

Construction Style	Crimp
End size 1	-8
Series	1A/Z Series
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
