Braided hose and fittings Parts

Danfoss

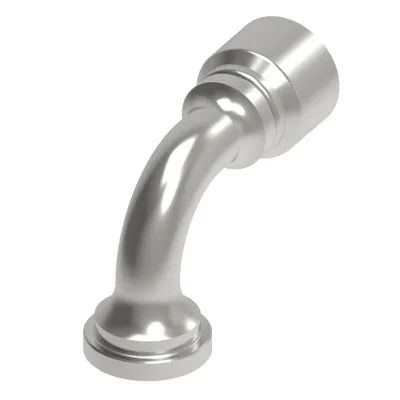

1G24FLB24

HOSE FTG, 1G/24, C61/24, CS, 90D

Danfoss

1G24FLA24

HOSE FTG, 1G/24, C61/24, CS, 45D

Danfoss

1G24FL24

HOSE FTG, 1G/24, C61/24, CS, STR

Danfoss

1G24FL20

HOSE FTG, 1G/20, C61/24, CS, STR

Danfoss

1G24FJ24

HOSE FTG, 1G/24, JIC-F/24, CS, STR

Danfoss

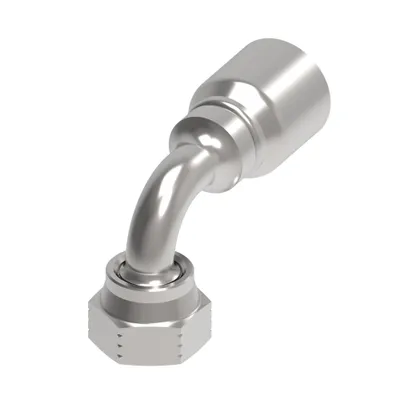

1G20FRB20

HOSE FTG, 1G/20, ORS-F/20, CS, 90D

Danfoss

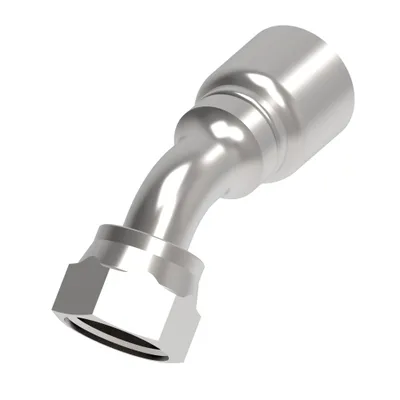

1G20FRA20

HOSE FTG, 1G/20, ORS-F/20, CS, 45D

Danfoss

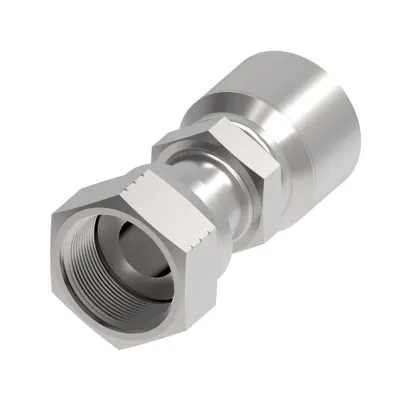

1G20FR20

HOSE FTG, 1G/20, ORS-F/20, CS, STR

Danfoss

1G20FLB20

HOSE FTG, 1G/20, C61/20, CS, 90D

Danfoss

1G20FLB16

HOSE FTG, 1G/16, C61/20, CS, 90D

Danfoss

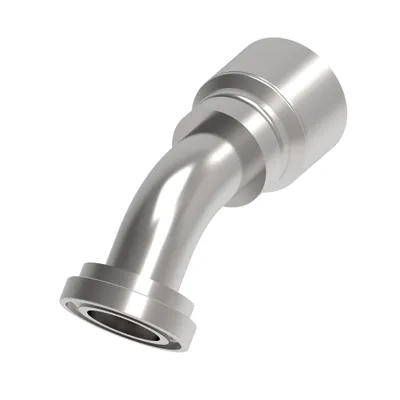

1G20FLA16

HOSE FTG, 1G/16, C61/20, CS, 45D

Danfoss

1G20FL20

HOSE FTG, 1G/20, C61/20, CS, STR

Danfoss

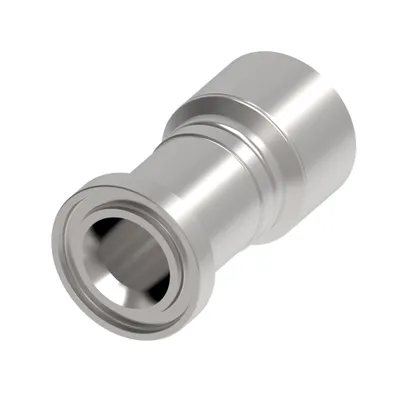

1G20FL16

HOSE FTG, 1G/16, C61/20, CS, STR

Danfoss

1G20FJB20

HOSE FTG, 1G/20, JIC-F/20, CS, 90D

Danfoss

1G20FJ20

HOSE FTG, 1G/20, JIC-F/20, CS, STR

Danfoss

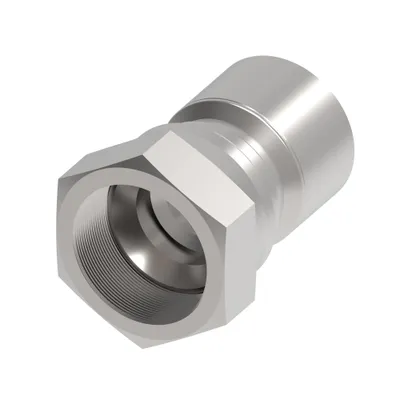

1G20FJ16

HOSE FTG, 1G/16, JIC-F/20, CS, STR

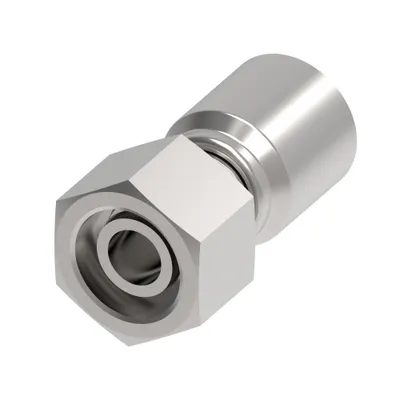

Danfoss

1G20DS12

HOSE NIPPLE ASSY,1G/12,DKOH-B/20,CS,STR

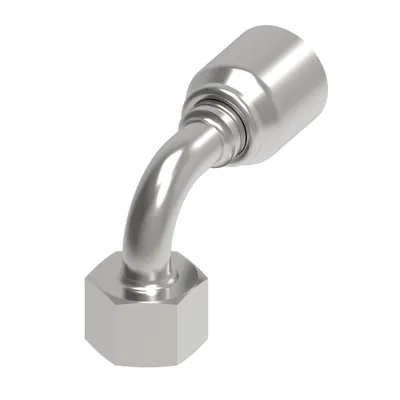

Danfoss

1G20DLB12

HOSE FTG, 1G/12, DKOL/20, CS, 90D

Danfoss

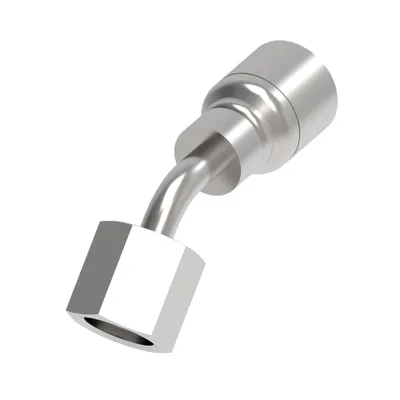

1G20DLA12

HOSE FTG, 1G/12, DKOL/20, CS, 45D

Danfoss

1G20DL16

HOSE FTG, 1G/16, DKOL/20, CS, STR

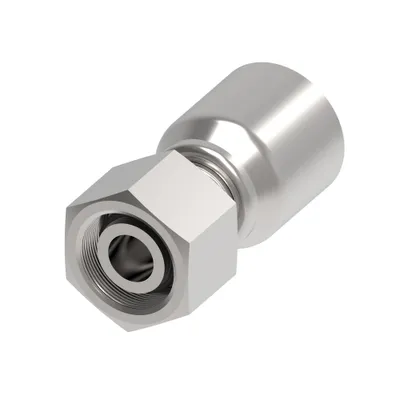

Danfoss

1G20DL12

HOSE FTG, 1G/12, DKOL/20, CS, STR

Danfoss

1G20DK12

HOSE FTG, 1G/12, DKL-M/20, CS, STR

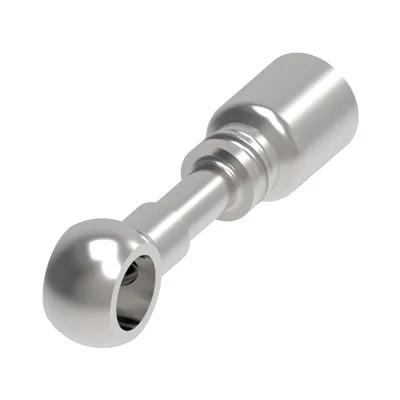

Danfoss

1G20BJ12

HOSE FTG, 1G/12, BANJO/20, CS, STR

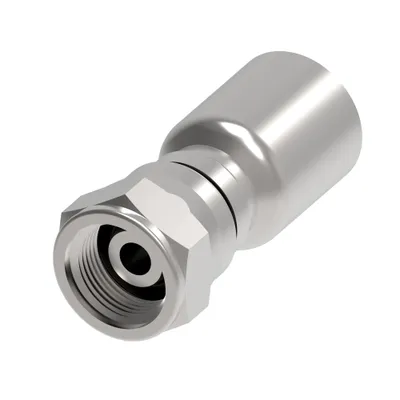

Danfoss

1G20BF20

HOSE FTG, 1G/20, BF/20, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor MM	Product length in	Product length mm
1G24FLB24	5.950	151.100	110.600	7.350	186.690
1G24FLA24	5.840	148.400	107.900	7.250	184.150
1G24FL24	4.170	106.000	65.500	4.402	111.811
1G24FL20	3.920	99.800	64.500	4.270	108.458
1G24FJ24	3.670	93.100	52.600	3.897	98.981
1G20FRB20	4.940	125.600	90.600	6.280	159.512
1G20FRA20	4.760	120.800	85.598	6.320	160.528
1G20FR20	3.720	94.600	59.182	4.640	117.856
1G20FLB20	4.950	125.800	90.600	6.300	160.020
1G20FLB16	4.590	116.500	88.900	5.854	148.699
1G20FLA16	4.540	115.300	87.700	5.807	147.490
1G20FL20	3.890	99.000	63.800	4.240	107.696
1G20FL16	3.530	89.700	62.000	3.800	96.520
1G20FJB20	3.900	99.200	64.000	5.236	132.999
1G20FJ20	3.270	83.000	47.800	3.270	83.058
1G20FJ16	2.910	73.800	46.100	2.910	73.914
1G20DS12	2.830	72.000	41.600	2.835	72.001
1G20DLB12	3.720	94.500	64.600	4.420	112.268
1G20DLA12	3.970	100.800	70.900	4.640	117.856
1G20DL16	2.550	64.700	30.300	2.550	64.770
1G20DL12	2.460	62.500	32.300	2.461	62.499
1G20DK12	2.440	62.000	31.800	2.440	61.976
1G20BJ12	3.750	95.500	65.300	4.665	118.501
1G20BF20	2.890	73.600	29.600	2.897	73.584

Common to all listed parts

Construction Style	Crimp
Product material	Carbon steel
Series	OTC
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
