Danfoss 1G20BJ12

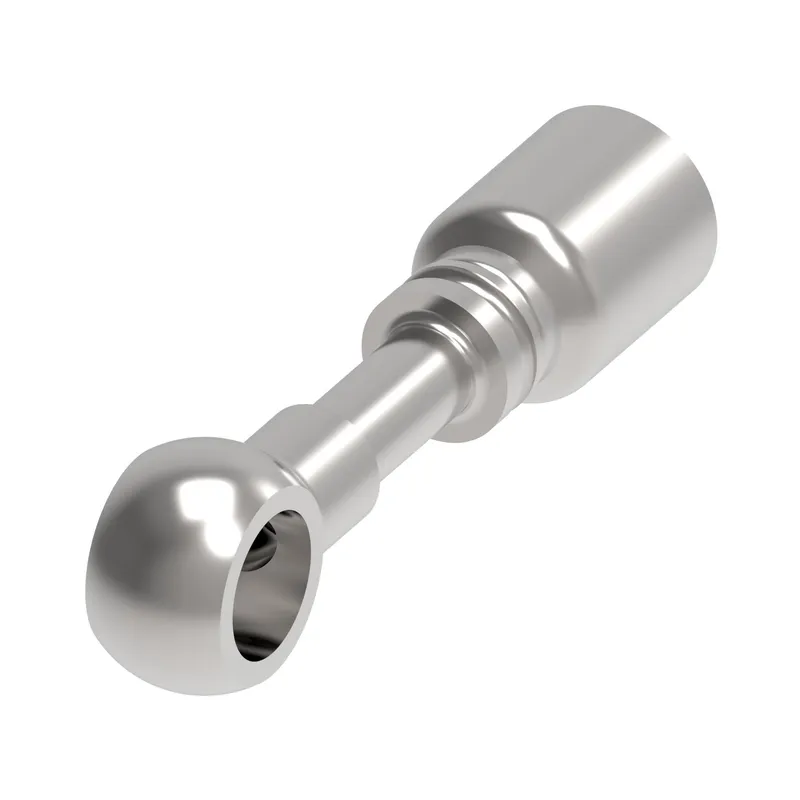

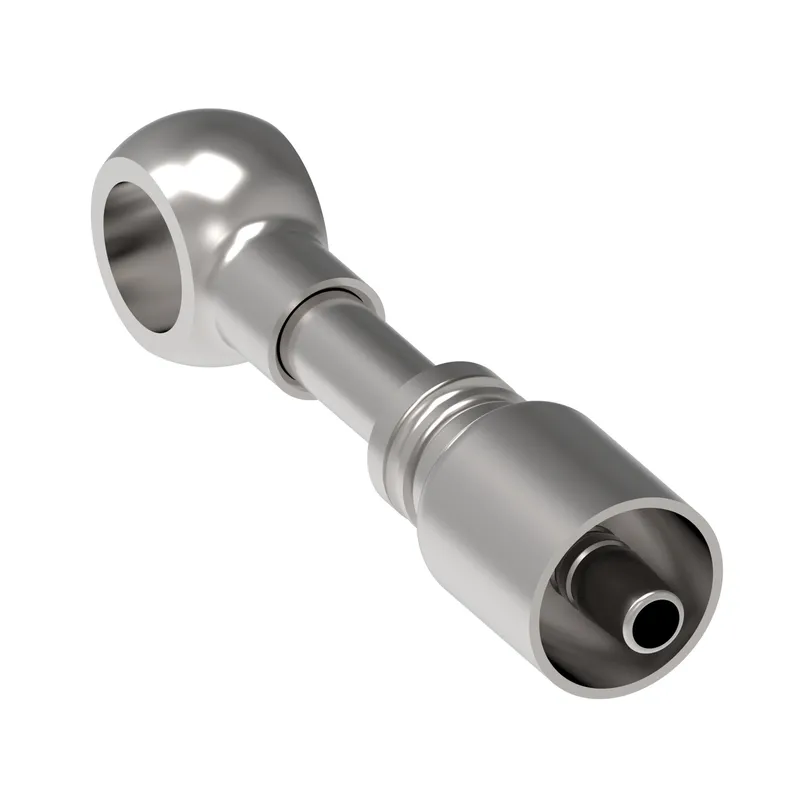

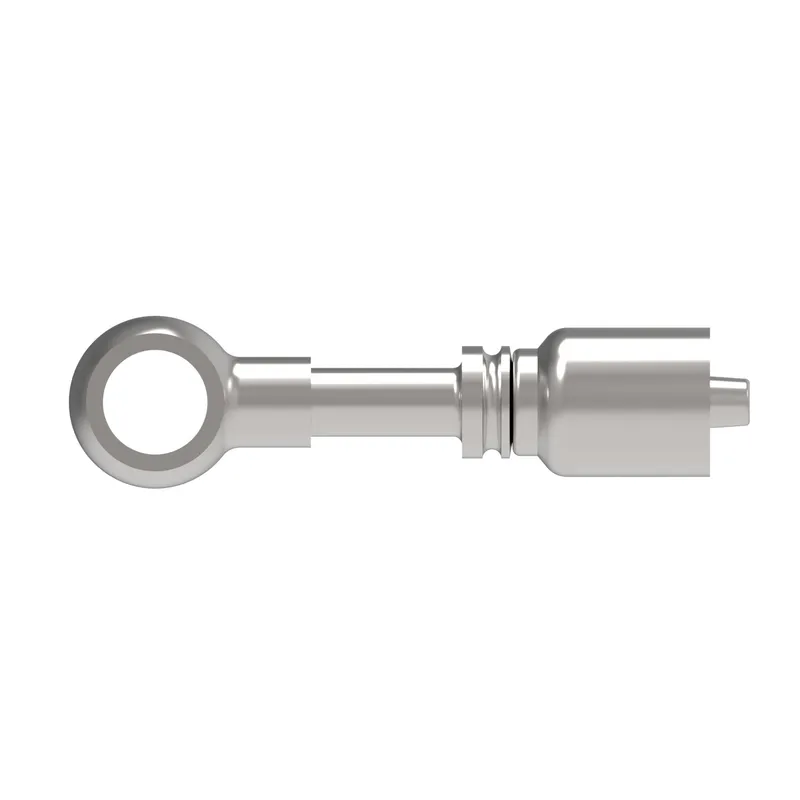

HOSE FTG, 1G/12, BANJO/20, CS, STR

MPN: 1G20BJ12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G20BJ12?

Danfoss HOSE FTG, 1G/12, BANJO/20, CS, STR, manufacturer part number 1G20BJ12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.750
A dimension MM	95.500
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End size 1	-20
End Type 1	Banjo DIN 7642 Form B, L.D.
Finish plating	Dura-Kote
Hex size 1 IN	0.000
Hose cut off factor IN	2.580
Hose cut off factor MM	65.300
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.811
Product height mm	45.999
Product length in	4.665
Product length mm	118.501
Product material	Carbon steel
Product width in	1.428
Product width mm	36.261
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
