Danfoss 1G20FL16

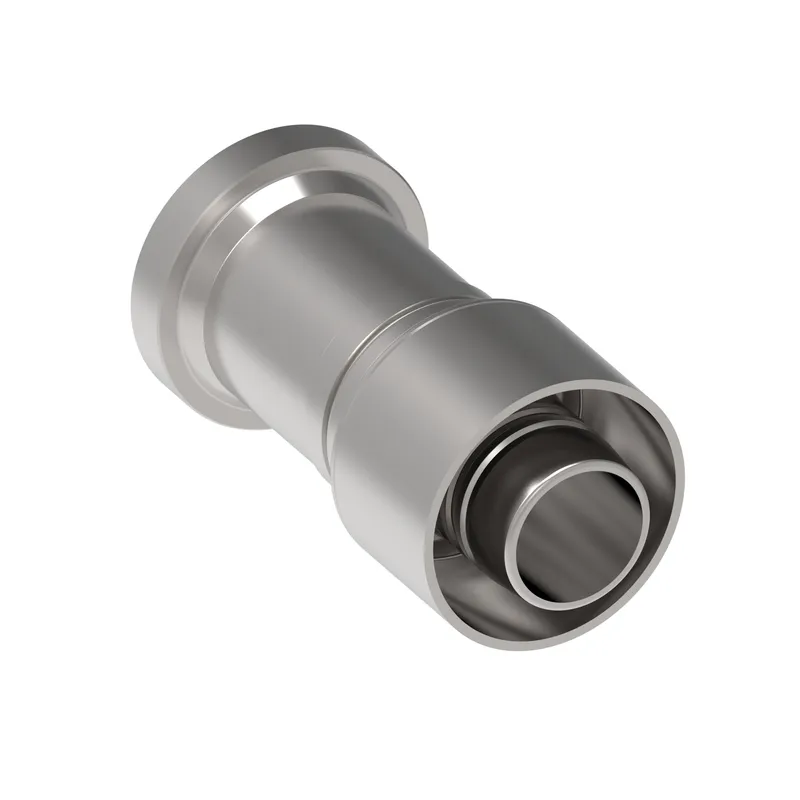

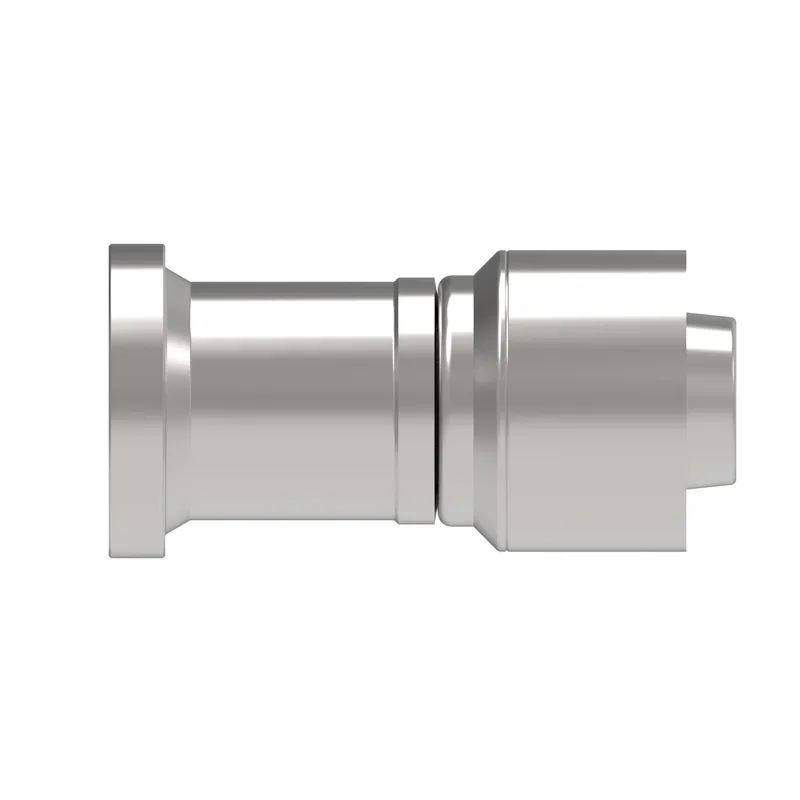

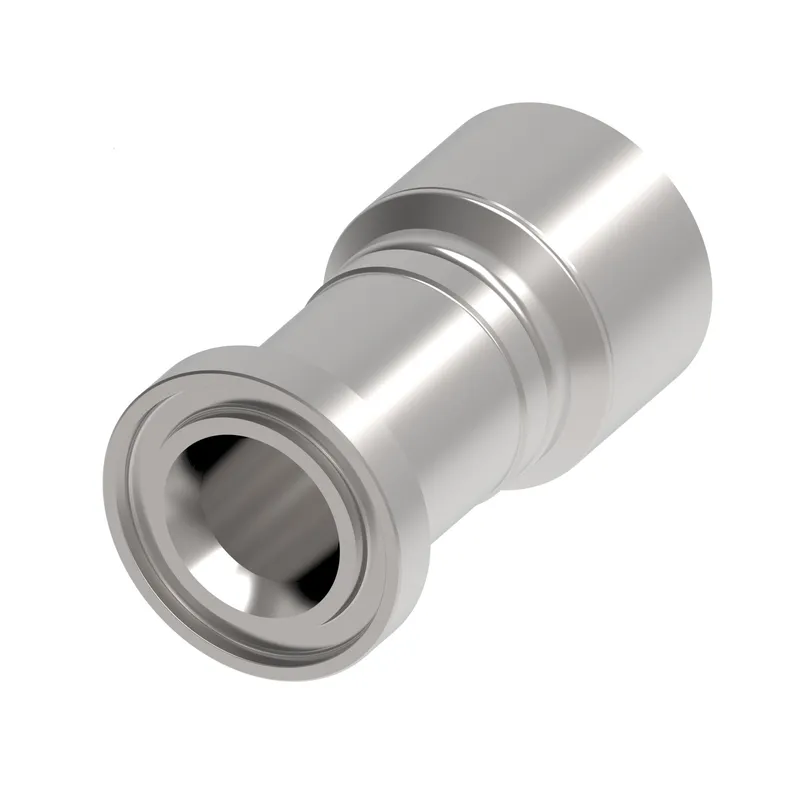

HOSE FTG, 1G/16, C61/20, CS, STR

MPN: 1G20FL16
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G20FL16?

Danfoss HOSE FTG, 1G/16, C61/20, CS, STR, manufacturer part number 1G20FL16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.530
A dimension MM	89.700
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End size 1	-20
End Type 1	Split flange code 61
Finish plating	Dura-Kote
Hex size 1 IN	0.000
Hose cut off factor IN	2.440
Hose cut off factor MM	62.000
Hose size	-16
Inside diameter IN	0.810
Inside diameter MM	20.700
Product height in	2.000
Product height mm	50.800
Product length in	3.800
Product length mm	96.520
Product material	Carbon steel
Product width in	2.000
Product width mm	50.8
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Working pressure max BAR	276.00
Working pressure max PSI	4000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
