Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Hose cut off factor IN | Product length in | Product length mm |
|---|---|---|---|---|---|
| 1G20AD12 | 2.320 | 59.000 | 1.130 | 2.322 | 58.979 |

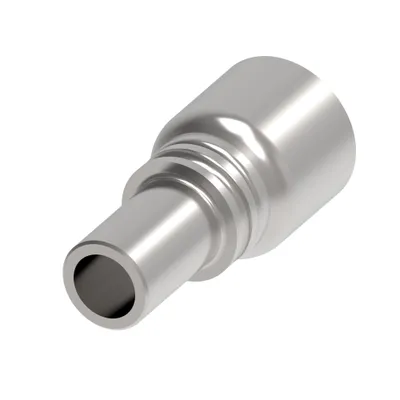

| 1G18LM10 | 2.710 | 69.000 | 1.550 | 2.716 | 68.999 |

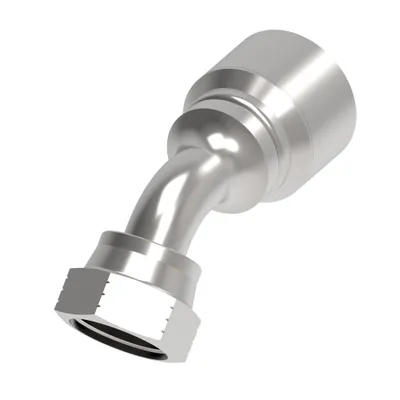

| 1G16FRA16 | 3.970 | 100.800 | 2.880 | 5.625 | 142.875 |

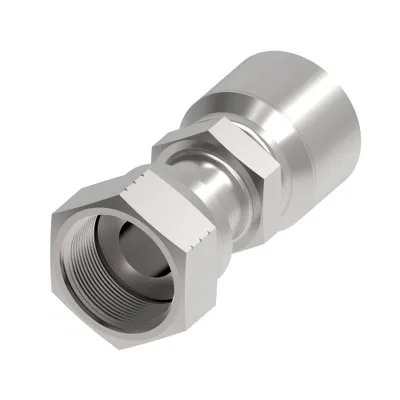

| 1G16FR16 | 3.020 | 76.800 | 1.930 | 3.610 | 91.694 |

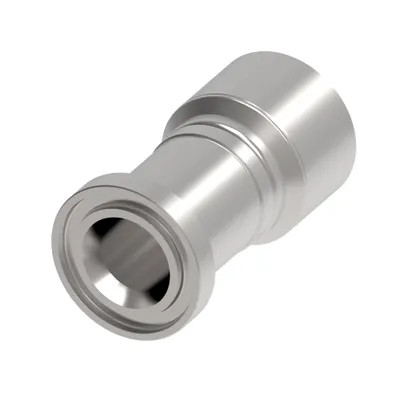

| 1G16FL16 | 3.220 | 82.000 | 2.140 | 3.490 | 88.646 |
| 1G16FJB16 | 3.290 | 83.600 | 2.200 | 4.480 | 113.792 |
| 1G16FJ16 | 3.020 | 76.800 | 1.930 | 3.288 | 83.520 |

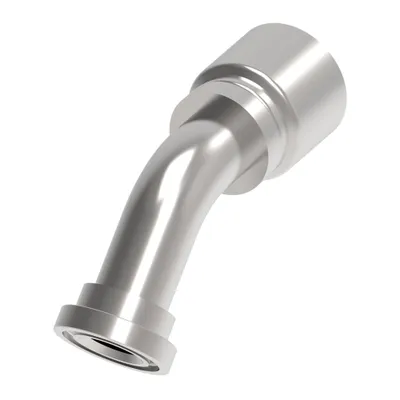

| 1G16FHA20.050 | 5.790 | 147.000 | 4.060 | 5.787 | 147.000 |

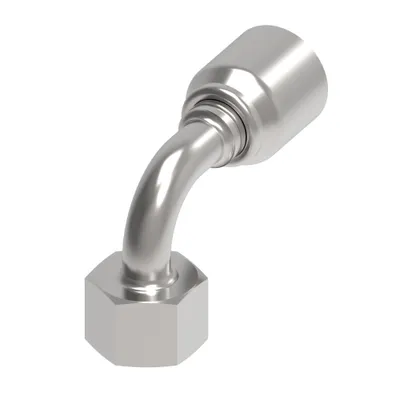

| 1G16DLB10 | 3.400 | 86.400 | 2.300 | 4.032 | 102.400 |

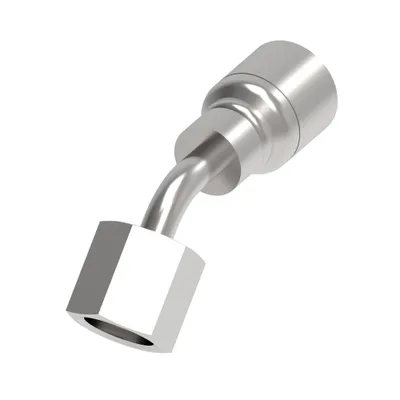

| 1G16DLA10 | 3.590 | 91.300 | 2.480 | 4.224 | 107.300 |
| 1G16DL8 | 2.340 | 59.600 | 1.160 | 2.360 | 59.944 |

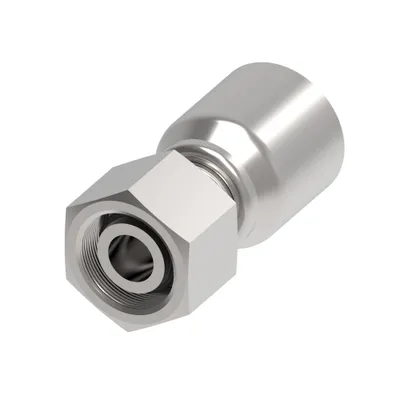

| 1G16DL10 | 2.330 | 59.200 | 1.170 | 2.330 | 59.182 |

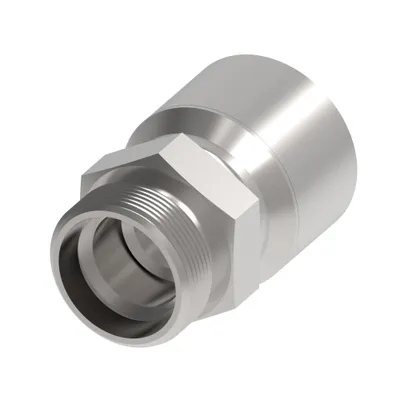

| 1G16DK10 | 2.200 | 56.000 | 1.050 | 2.205 | 55.999 |

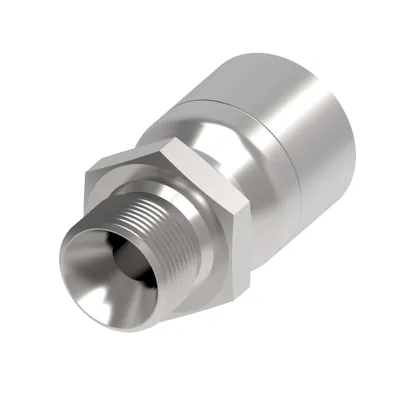

| 1G16BP16 | 2.790 | 70.900 | 1.430 | 2.791 | 70.899 |

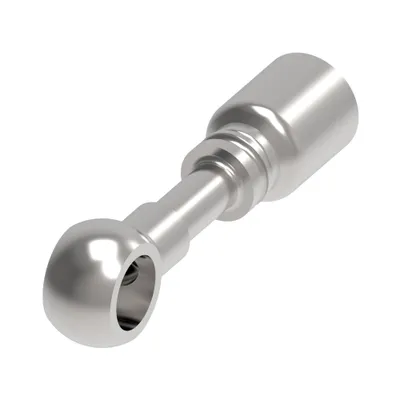

| 1G16BJ10 | 3.560 | 90.500 | 2.420 | 3.560 | 90.424 |

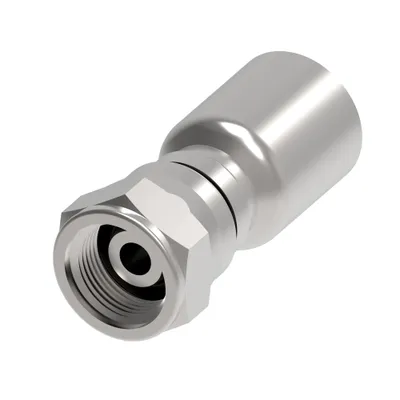

| 1G16BF16 | 2.440 | 62.000 | 1.080 | 2.440 | 61.976 |

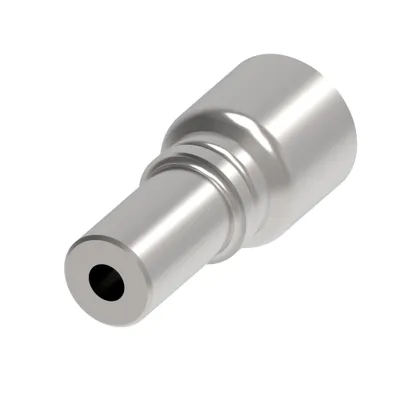

| 1G13LG5 | 2.090 | 53.100 | 1.140 | 2.091 | 53.101 |

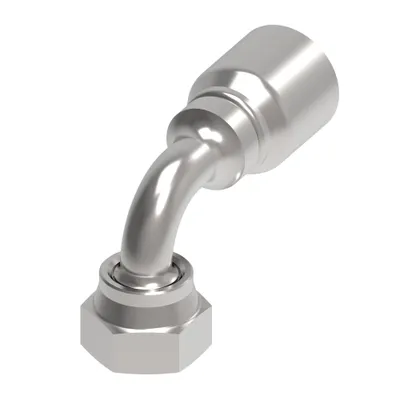

| 1G12FRB12 | 3.490 | 88.700 | 2.300 | 4.200 | 106.680 |
| 1G12FRA12 | 3.310 | 84.000 | 2.380 | 4.840 | 122.936 |
| 1G12FR12 | 2.650 | 67.300 | 1.720 | 3.470 | 88.138 |

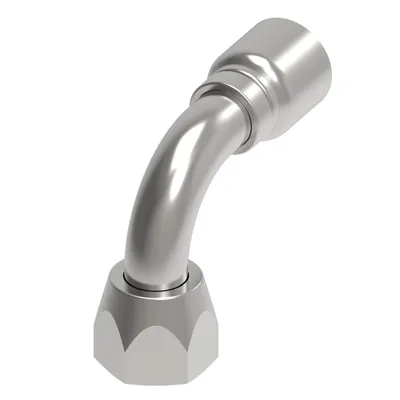

| 1G12FJB12 | 3.100 | 78.800 | 2.170 | 3.992 | 101.399 |

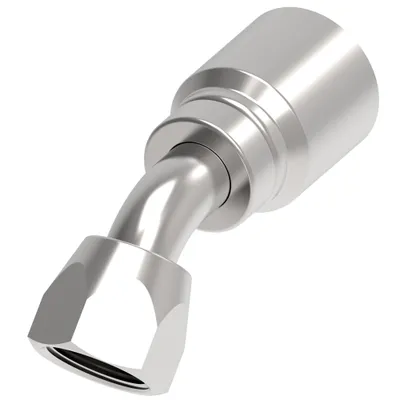

| 1G12FJA12 | 3.430 | 87.100 | 2.240 | 4.160 | 105.664 |

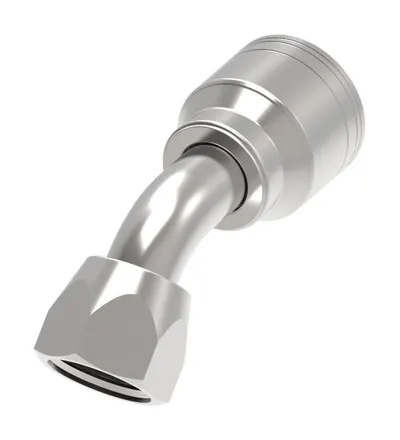

| 1G12FJA10 | 3.380 | 85.900 | 2.220 | 3.382 | 85.900 |

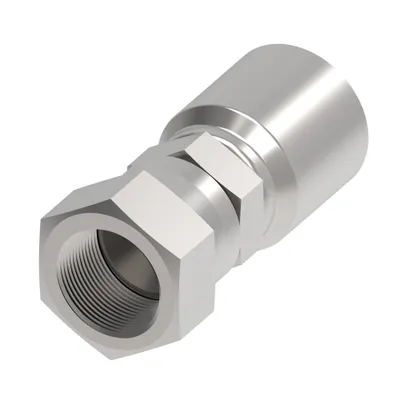

| 1G12FJ12 | 2.580 | 65.500 | 1.650 | 2.841 | 72.151 |
Common to all listed parts
| Construction Style | Crimp |
| Product material | Carbon steel |
| Series | OTC |
| Thread sealant | No |
