Braided hose and fittings Parts

Danfoss

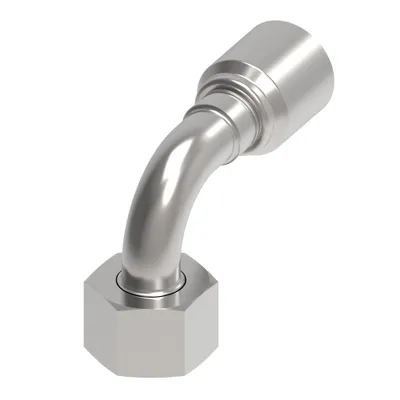

1G12DSB8

HOSE FTG, 1G/08, DKOH-B/12, CS, 90D

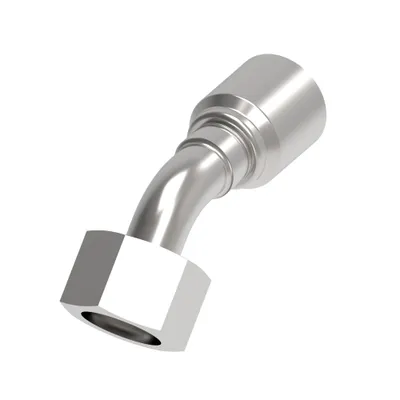

Danfoss

1G12DSA8

HOSE FTG, 1G/08, DKOH-B/12, CS, 45D

Danfoss

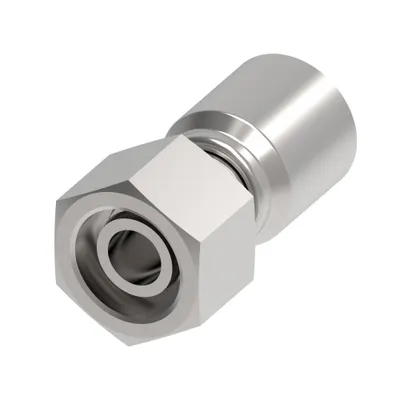

1G12DS8

HOSE FTG, 1G/08, DKOH-B/12, CS, STR

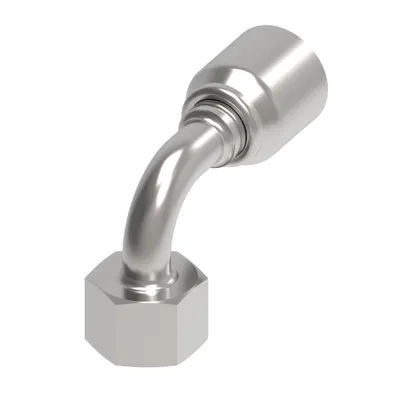

Danfoss

1G12DLB8

HOSE FTG, 1G/08, DKOL/12, CS, 90D

Danfoss

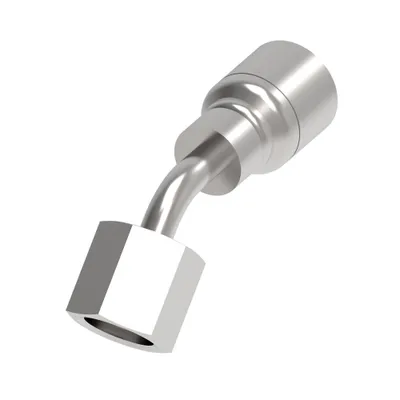

1G12DLA8

HOSE FTG, 1G/08, DKOL/12, CS, 45D

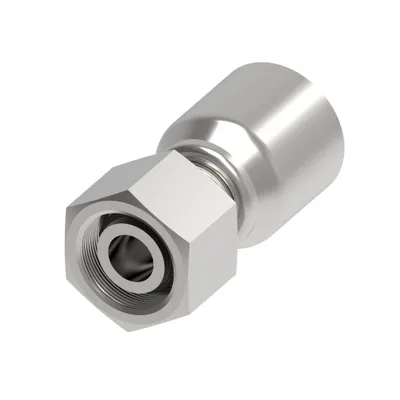

Danfoss

1G12DL8

HOSE FTG, 1G/08, DKOL/12, CS, STR

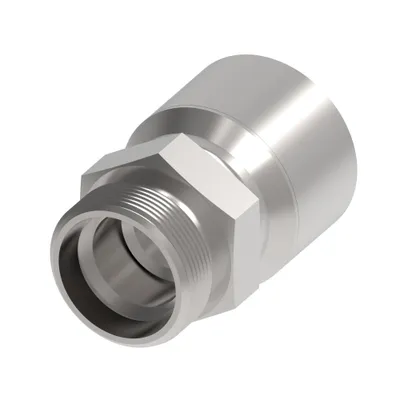

Danfoss

1G12DK8

HOSE FTG, 1G/08, DKL-M/12, CS, STR

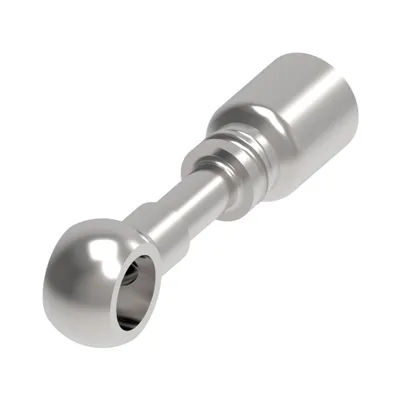

Danfoss

1G12BJ8

HOSE FTG, 1G/08, BANJO/12, CS, STR

Danfoss

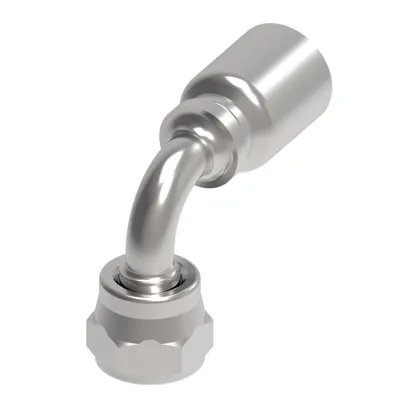

1G12BFB12

HOSE FTG, 1G/12, BF/12, CS, 90D

Danfoss

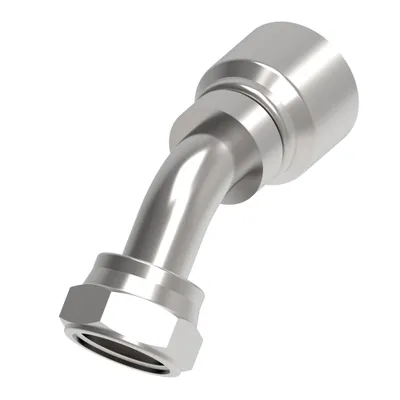

1G12BFA12

HOSE FTG, 1G/12, BF/12, CS, 45D

Danfoss

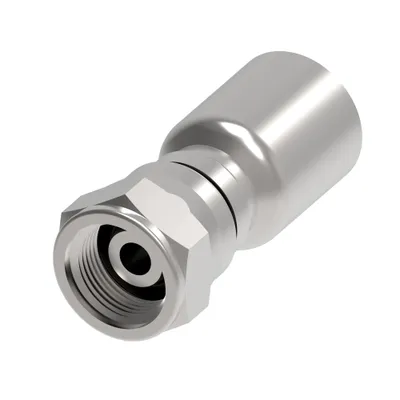

1G12BF12

HOSE FTG, 1G/12, BF/12, CS, STR

Danfoss

1G12BF10

HOSE FTG, 1G/10, BF/12, CS, STR

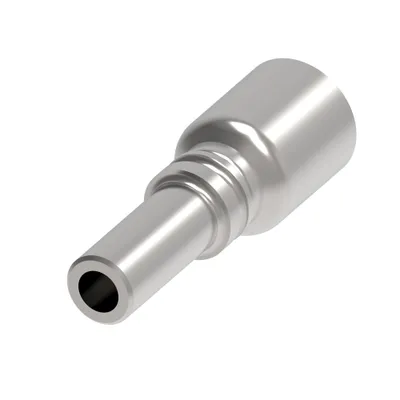

Danfoss

1G10LM4

HOSE NIPPLE ASSY,1G/04,STPIPE/10,CS,STR

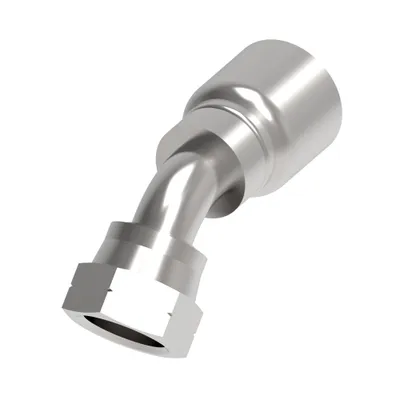

Danfoss

1G10FSA10

HOSE FTG, 1G/10, FS/10, CS, 45D

Danfoss

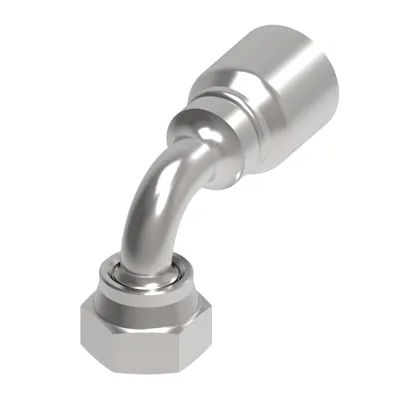

1G10FRB10

HOSE FTG, 1G/10, ORS-F/10, CS, 90D

Danfoss

1G10FR10

HOSE FTG, 1G/10, ORS-F/10, CS, STR

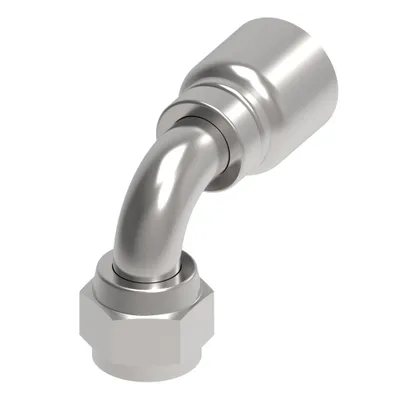

Danfoss

1G10FJB10

HOSE FTG, 1G/10, JIC-F/10, CS, 90D

Danfoss

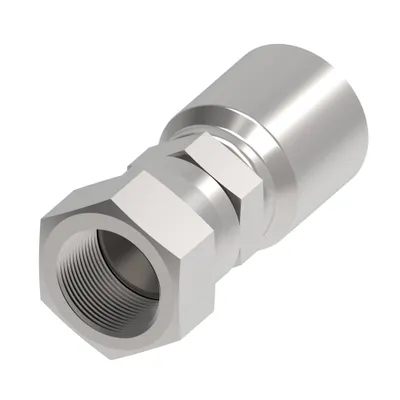

1G10FJ8

HOSE FTG, 1G/08, JIC-F/10, CS, STR

Danfoss

1G10FJ10

HOSE FTG, 1G/10, JIC-F/10, CS, STR

Danfoss

1G10DLB6

HOSE FTG, 1G/06, DKOL/10, CS, 90D

Danfoss

1G10DLB5

HOSE FTG, 1G/05, DKOL/10, CS, 90D

Danfoss

1G10DLA6

HOSE FTG, 1G/06, DKOL/10, CS, 45D

Danfoss

1G10DL8

HOSE FTG, 1G/08, DKOL/10, CS, STR

Danfoss

1G10DL6

HOSE FTG, 1G/06, DKOL/10, CS, STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor MM	Product height in	Product height mm
1G12DSB8	3.060	77.700	48.700	2.310	58.674
1G12DSA8	3.410	86.700	57.500	2.072	52.639
1G12DS8	2.460	62.400	33.300	1.364	34.641
1G12DLB8	2.960	75.300	46.400	2.100	53.340
1G12DLA8	3.270	83.000	54.100	1.879	47.719
1G12DL8	2.300	58.300	28.600	1.227	31.171
1G12DK8	2.200	56.000	26.300	1.118	28.390
1G12BJ8	3.360	85.400	55.700	1.260	31.999
1G12BFB12	3.420	82.200	52.000	2.604	66.139
1G12BFA12	3.590	91.300	61.100	2.460	62.484
1G12BF12	2.190	55.500	25.300	1.420	36.068
1G12BF10	2.130	54.300	24.900	1.440	36.576
1G10LM4	2.220	56.500	33.100	0.720	18.291
1G10FSA10	2.850	72.500	43.100	1.754	44.539
1G10FRB10	2.840	72.100	48.600	2.400	60.960
1G10FR10	2.530	64.300	40.800	1.360	34.544
1G10FJB10	2.470	62.800	39.300	2.292	58.224
1G10FJ8	2.410	61.100	37.400	1.230	31.242
1G10FJ10	2.540	64.400	40.900	1.680	42.672
1G10DLB6	2.350	59.800	34.500	1.790	45.466
1G10DLB5	2.370	60.100	36.200	1.860	47.244
1G10DLA6	2.760	70.000	44.800	1.570	39.878
1G10DL8	2.360	60.000	30.300	1.070	27.178
1G10DL6	2.020	51.200	25.900	0.866	21.996

Common to all listed parts

Construction Style	Crimp
Finish plating	Dura-Kote
Product material	Carbon steel
Thread sealant	No
