Danfoss 1G20DLB12

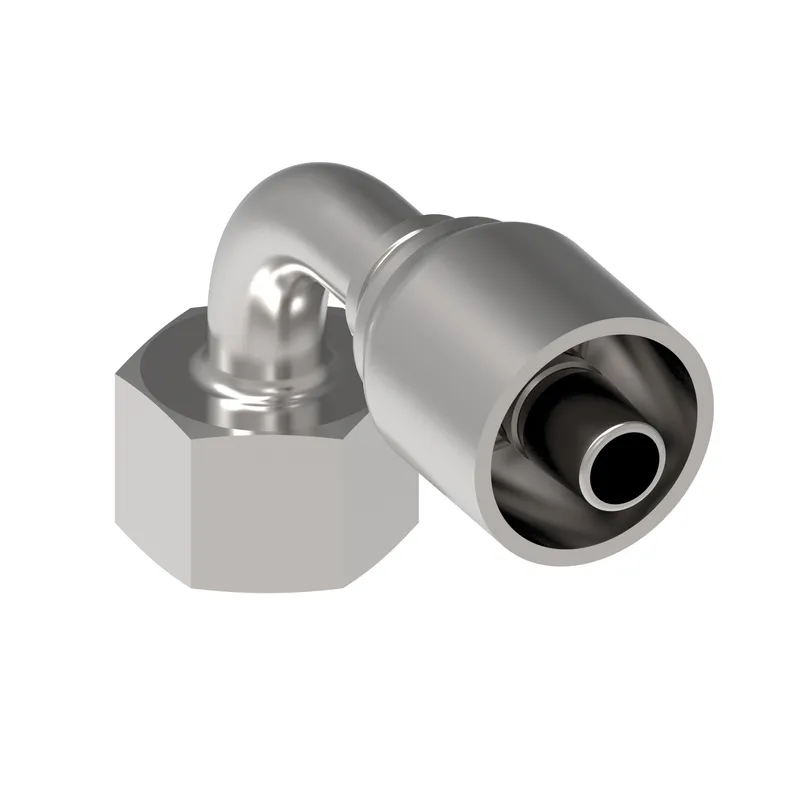

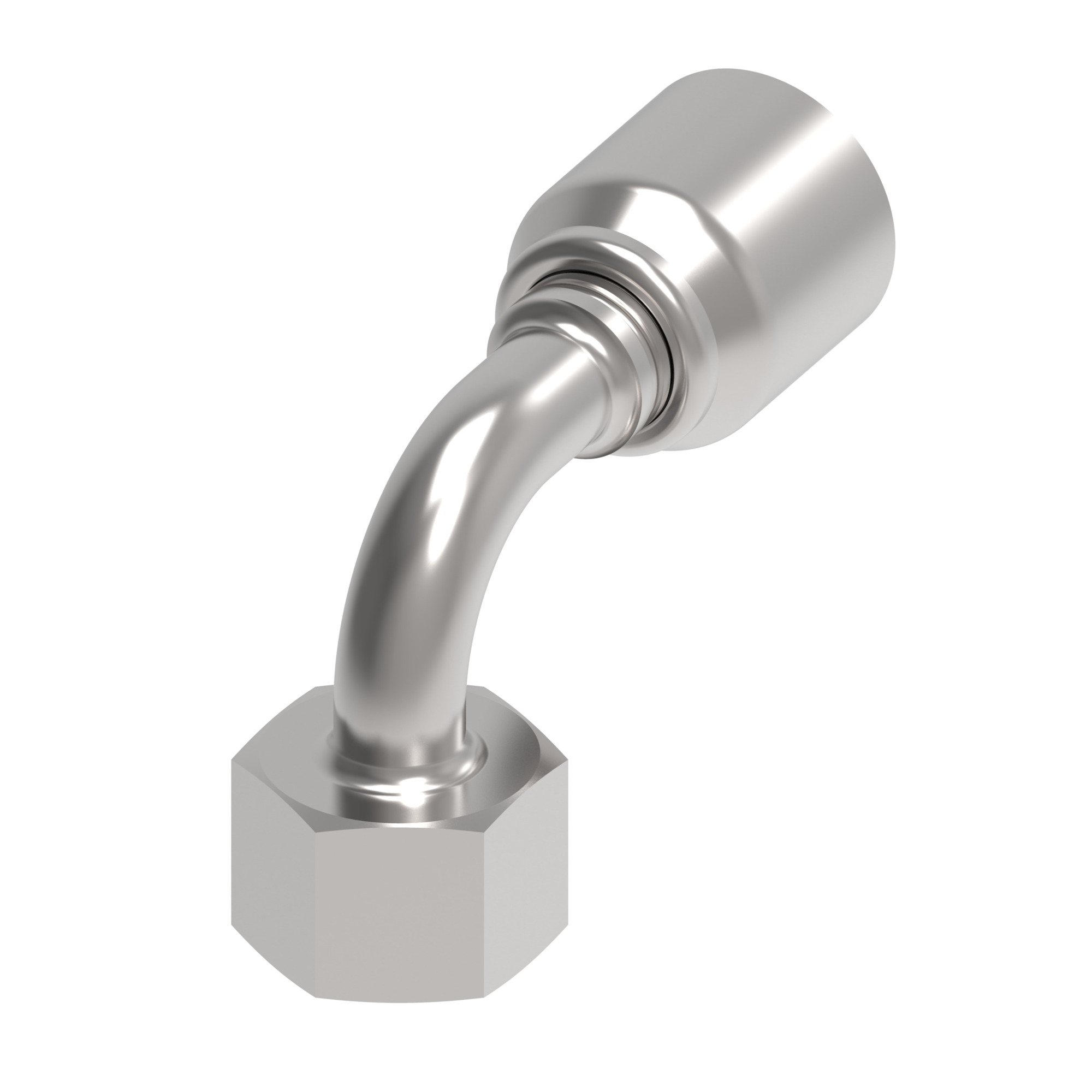

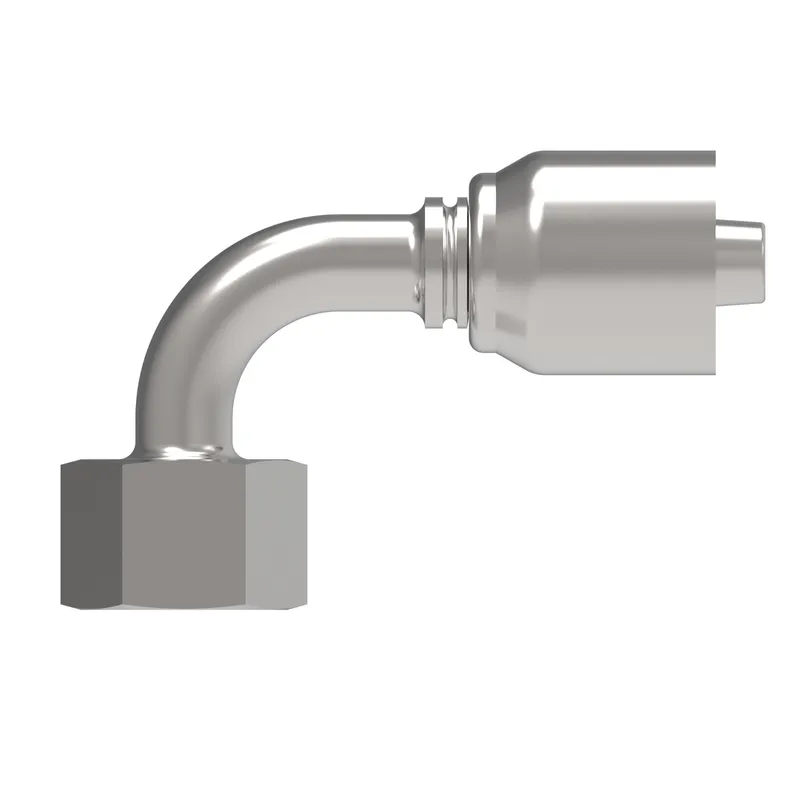

HOSE FTG, 1G/12, DKOL/20, CS, 90D

MPN: 1G20DLB12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G20DLB12?

Danfoss HOSE FTG, 1G/12, DKOL/20, CS, 90D, manufacturer part number 1G20DLB12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.720
A dimension MM	94.500
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	GH585, GH586
Construction Style	Crimp
Drop dimension IN	2.020
Drop dimension MM	51.20
End size 1	-20
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	1.417
Hex size 1 MM	35.992
Hose cut off factor IN	2.540
Hose cut off factor MM	64.600
Hose size	-12
Inside diameter IN	0.580
Inside diameter MM	14.800
Product height in	2.710
Product height mm	68.834
Product length in	4.420
Product length mm	112.268
Product material	Carbon steel
Product width in	1.417
Product width mm	35.992
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	OTC
Thread sealant	No
Thread size 1	M30x2
Working pressure max BAR	125.00
Working pressure max PSI	1800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
