Danfoss 1G24FLA24

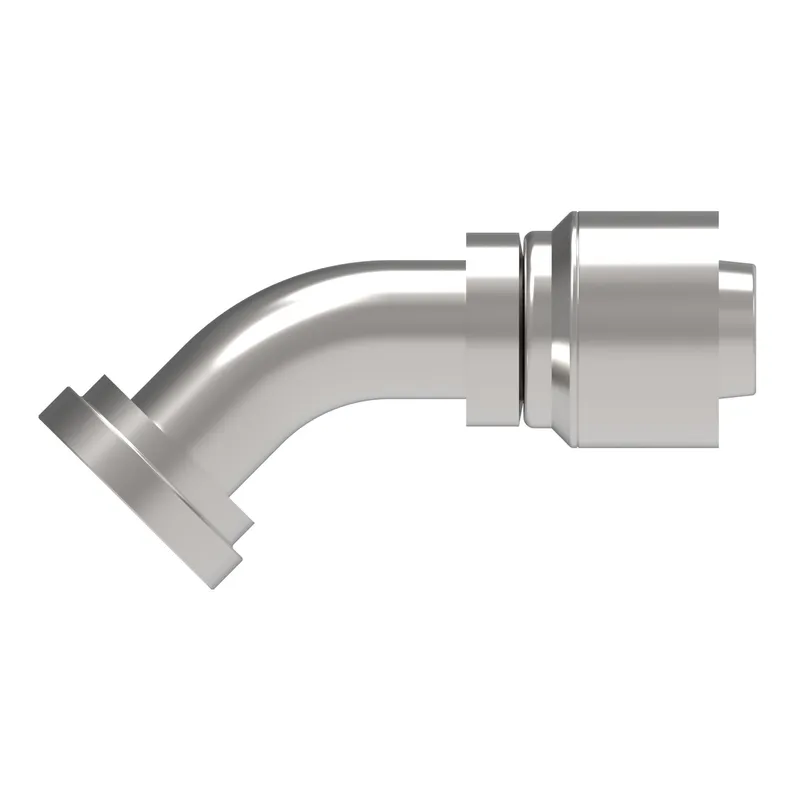

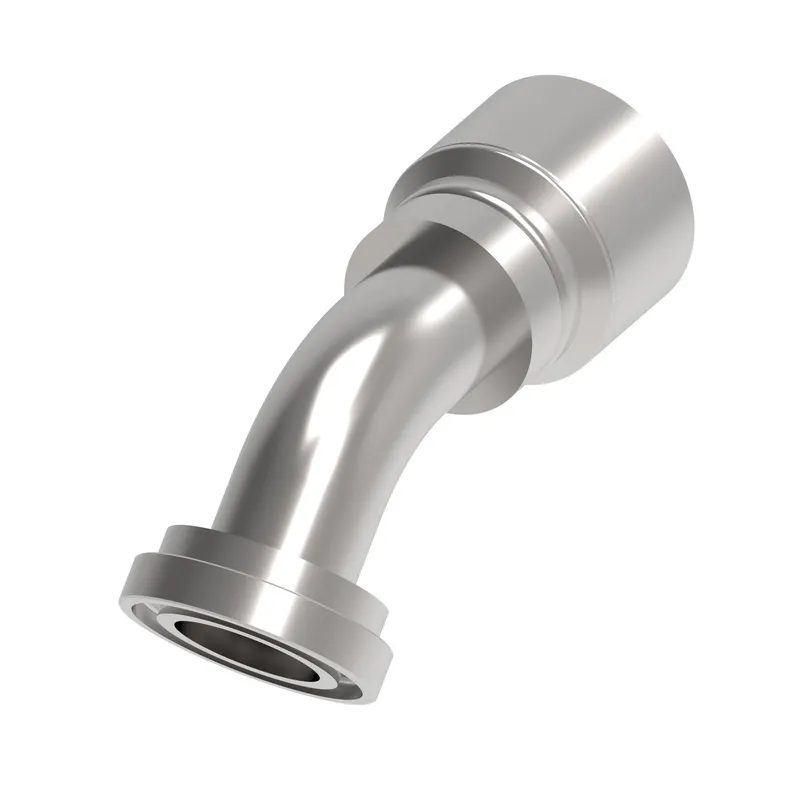

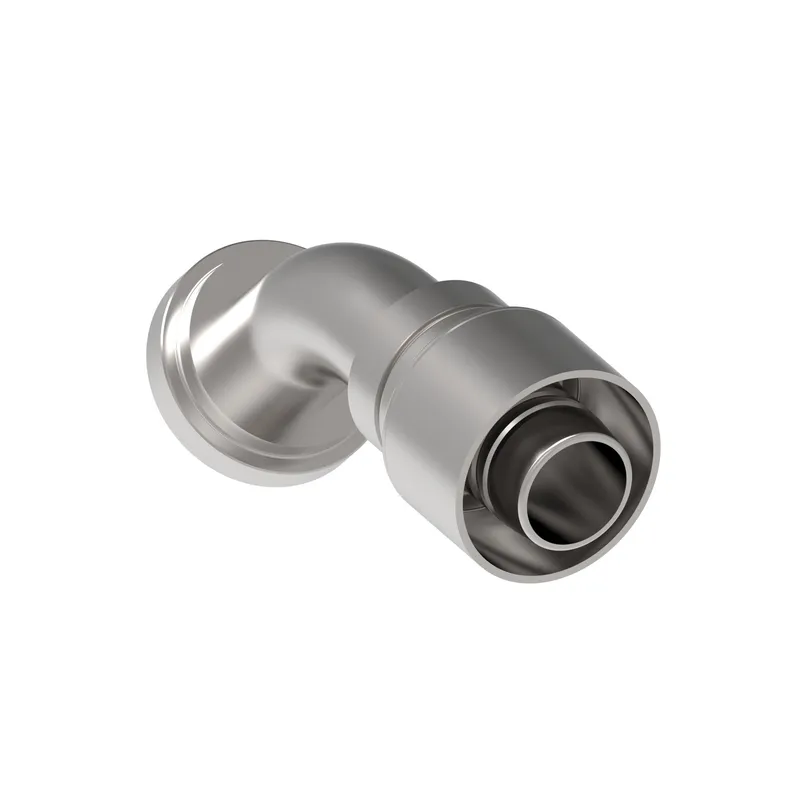

HOSE FTG, 1G/24, C61/24, CS, 45D

MPN: 1G24FLA24
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G24FLA24?

Danfoss HOSE FTG, 1G/24, C61/24, CS, 45D, manufacturer part number 1G24FLA24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.840
A dimension MM	148.400
Angle shape	45 Degree
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
Drop dimension IN	1.410
Drop dimension MM	35.80
End size 1	-24
End Type 1	Split flange code 61
Finish plating	Dura-Kote
Hose cut off factor IN	4.250
Hose cut off factor MM	107.900
Hose size	-24
Inside diameter IN	1.260
Inside diameter MM	32.000
Product height in	3.720
Product height mm	94.488
Product length in	7.250
Product length mm	184.150
Product material	Carbon steel
Product width in	2.370
Product width mm	60.198
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Working pressure max BAR	206
Working pressure max PSI	2950
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
