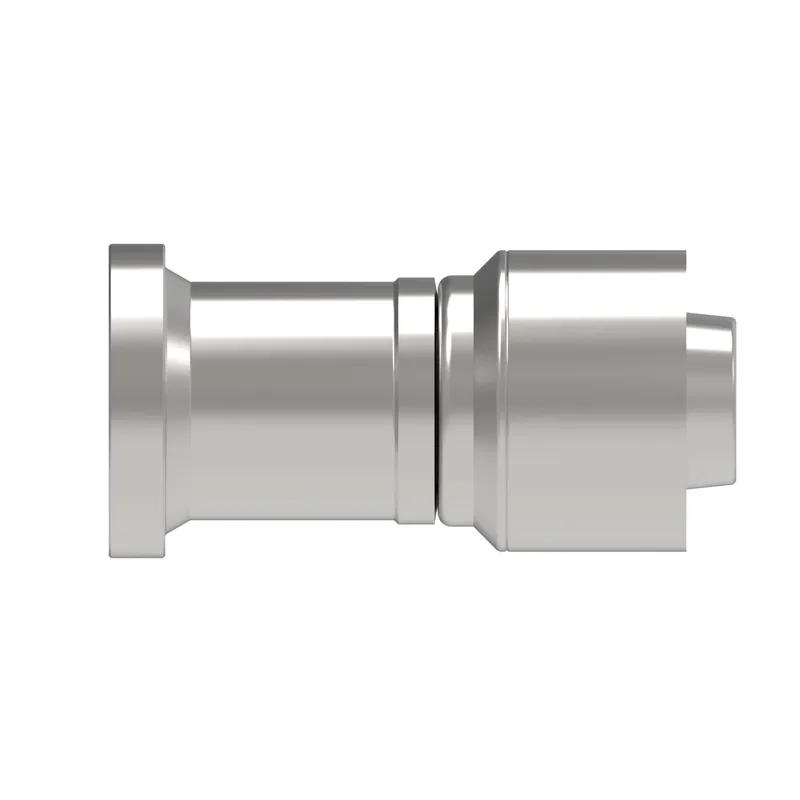

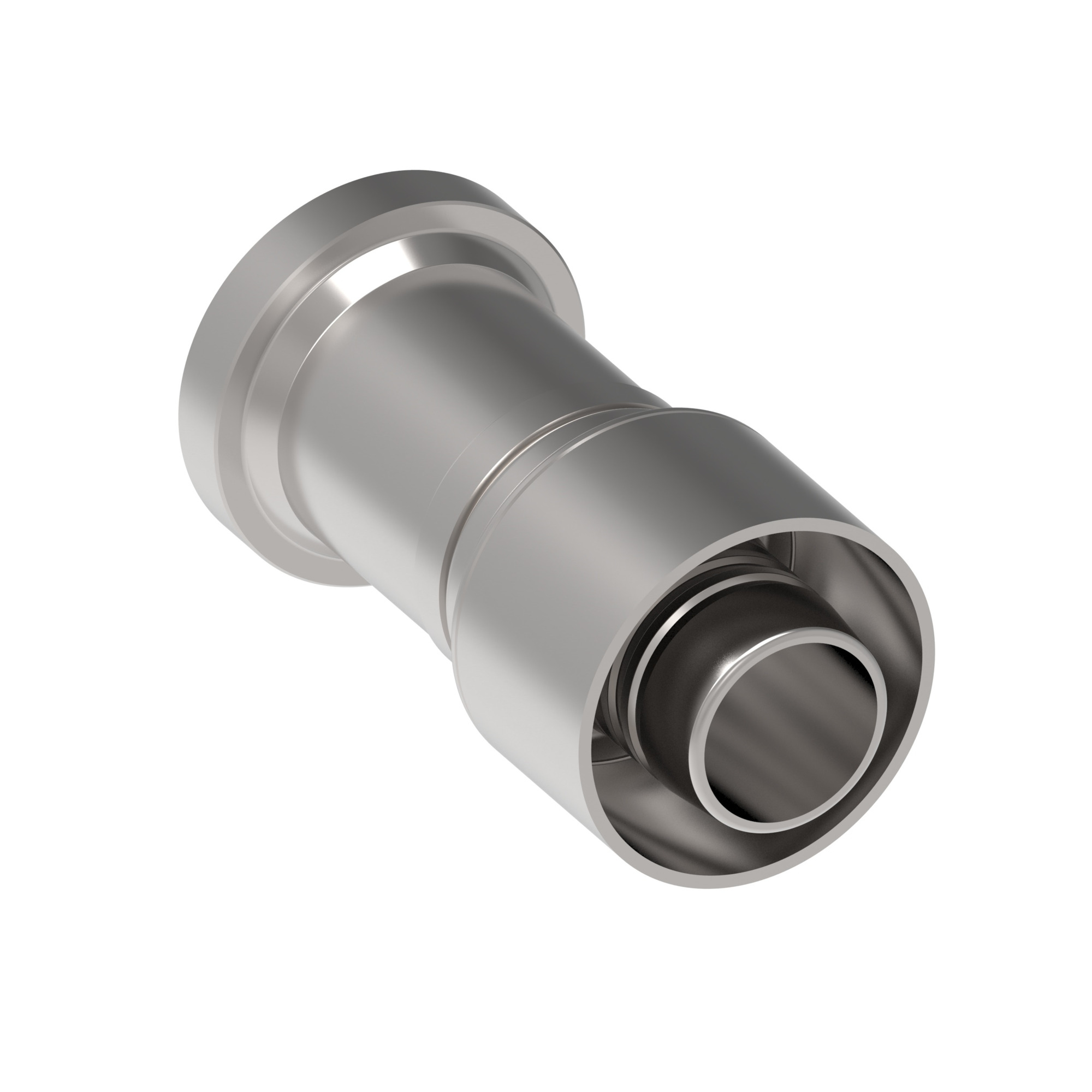

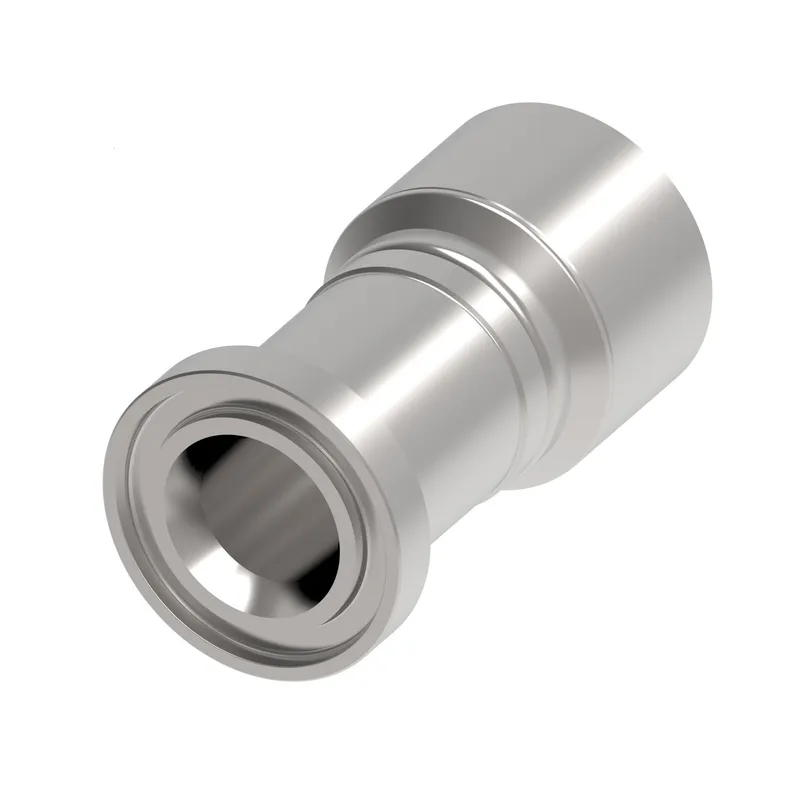

Danfoss 1G20FL20

HOSE FTG, 1G/20, C61/20, CS, STR

MPN: 1G20FL20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G20FL20?

Danfoss HOSE FTG, 1G/20, C61/20, CS, STR, manufacturer part number 1G20FL20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.890
A dimension MM	99.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End size 1	-20
End Type 1	Split flange code 61
Finish plating	Dura-Kote
Hose cut off factor IN	2.510
Hose cut off factor MM	63.800
Hose size	-20
Inside diameter IN	1.050
Inside diameter MM	26.600
Product height in	2.000
Product height mm	50.800
Product length in	4.240
Product length mm	107.696
Product material	Carbon steel
Product width in	2.000
Product width mm	50.8
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Working pressure max BAR	276.00
Working pressure max PSI	4000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1G20FL20: frequently asked questions

When can 1G20FL20 be shipped?

1G20FL20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1G20FL20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1G20FL20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1G20FL20, subject to availability and destination.
