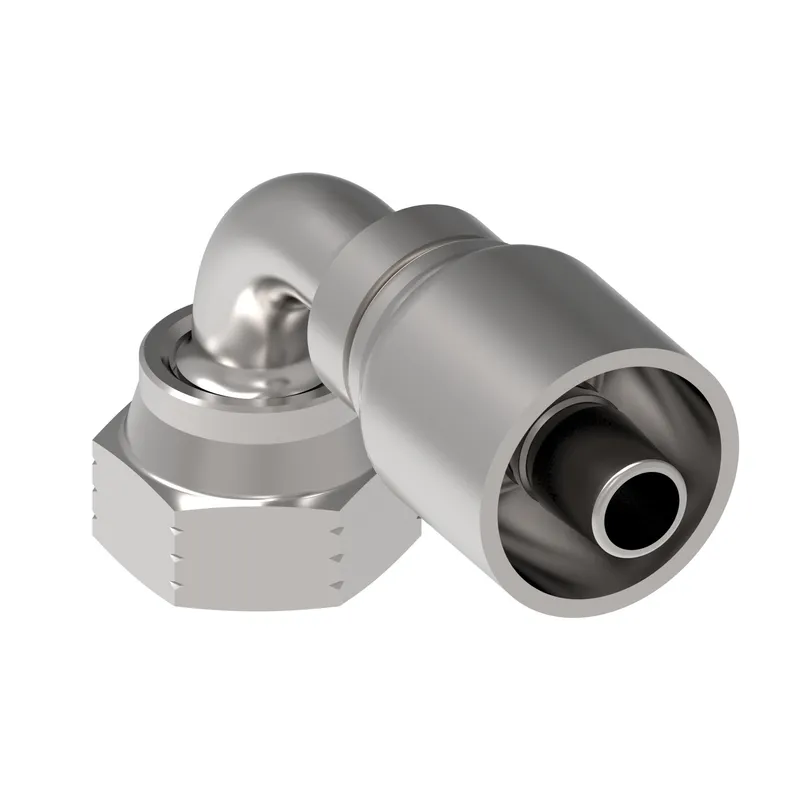

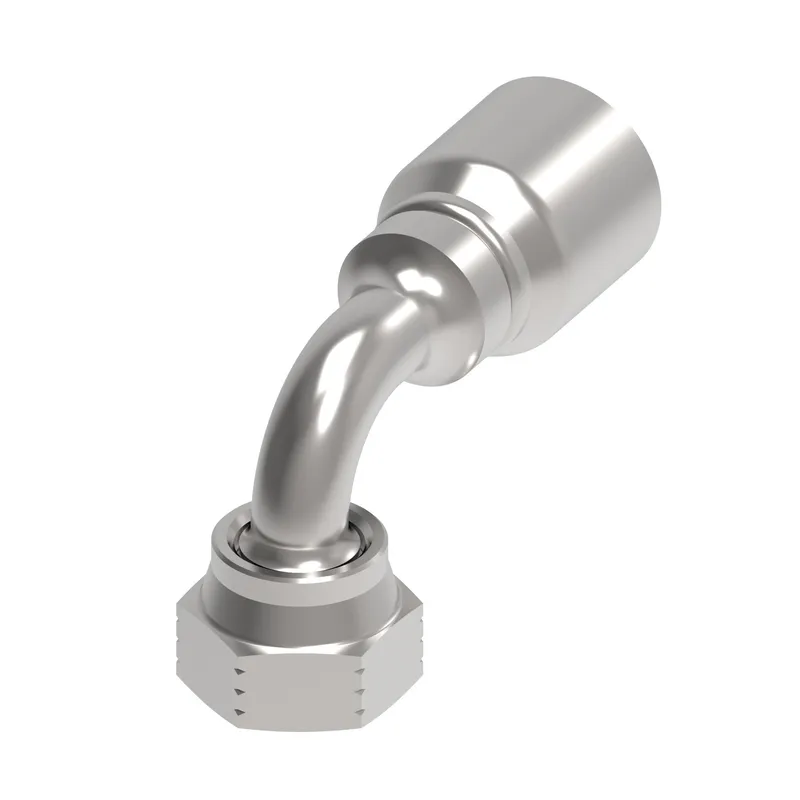

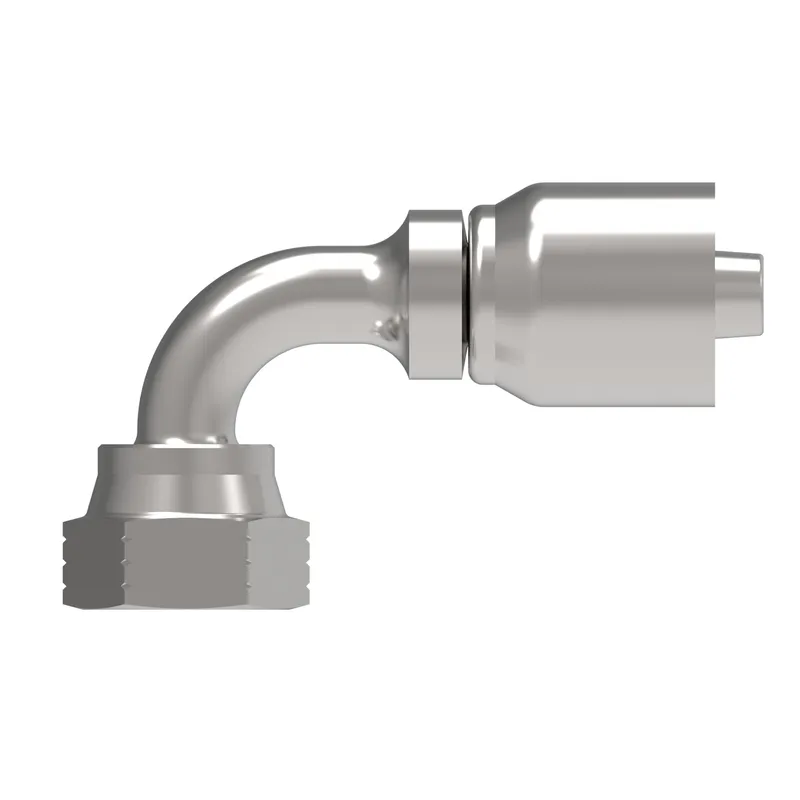

Danfoss 1G20FRB20

HOSE FTG, 1G/20, ORS-F/20, CS, 90D

MPN: 1G20FRB20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G20FRB20?

Danfoss HOSE FTG, 1G/20, ORS-F/20, CS, 90D, manufacturer part number 1G20FRB20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.940
A dimension MM	125.600
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
Drop dimension IN	2.510
Drop dimension MM	63.80
End connection torque	125-140 lb-ft(170-190 Nm)
End size 1	-20
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hose cut off factor IN	3.570
Hose cut off factor MM	90.600
Hose size	-20
Inside diameter IN	1.020
Inside diameter MM	26.000
Product height in	4.080
Product height mm	103.632
Product length in	6.280
Product length mm	159.512
Product material	Carbon steel
Product width in	1.968
Product width mm	49.987
Series	OTC
Thread size 1	1 11/16-12 UN
Working pressure max BAR	310
Working pressure max PSI	4500
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
