Danfoss 1G20FLB20

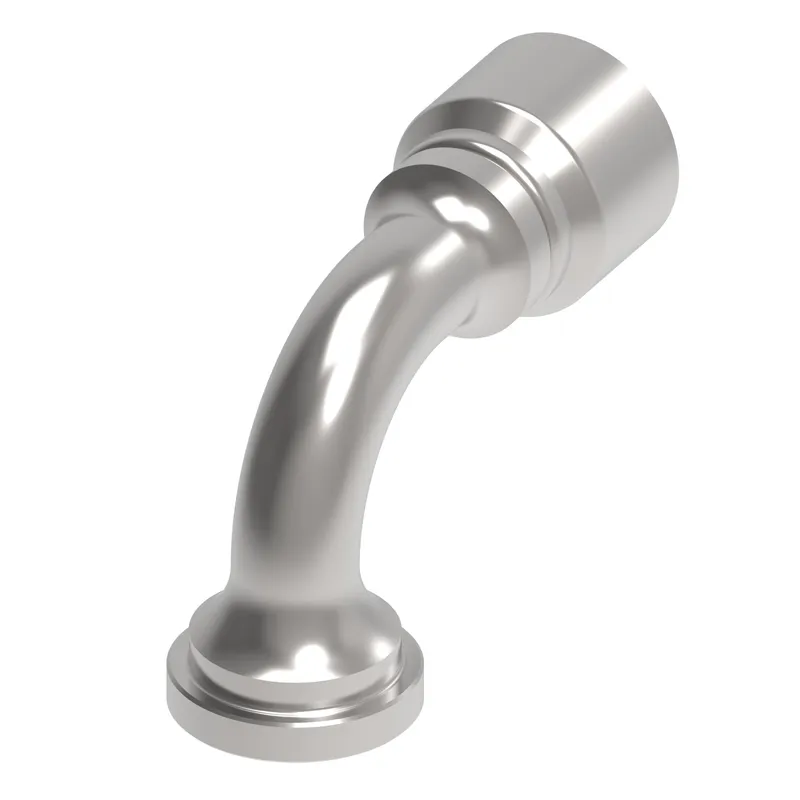

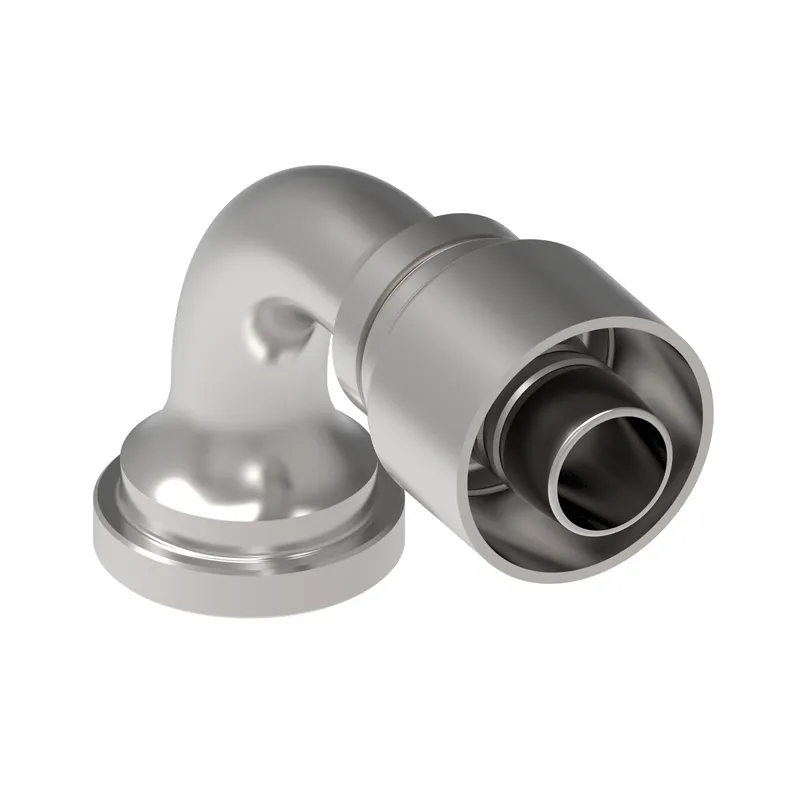

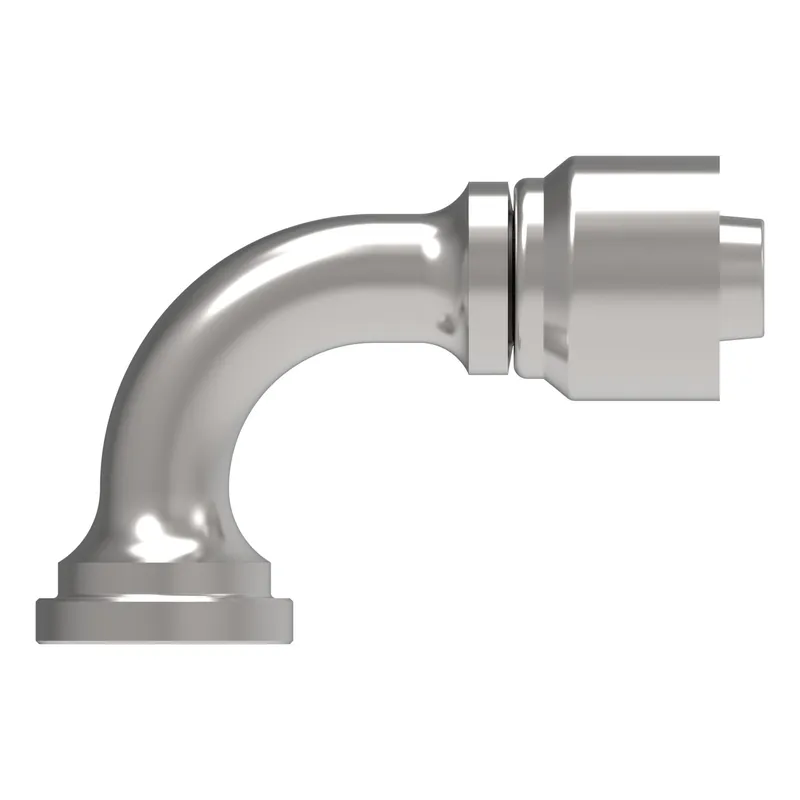

HOSE FTG, 1G/20, C61/20, CS, 90D

MPN: 1G20FLB20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G20FLB20?

Danfoss HOSE FTG, 1G/20, C61/20, CS, 90D, manufacturer part number 1G20FLB20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146132796
A dimension IN	4.950
A dimension MM	125.800
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
Drop dimension IN	2.620
Drop dimension MM	66.60
End size 1	-20
End Type 1	Split flange code 61
Finish plating	Dura-Kote
Hex size 1 IN	0.000
Hose cut off factor IN	3.570
Hose cut off factor MM	90.600
Hose size	-20
Inside diameter IN	1.010
Inside diameter MM	25.700
Product height in	3.660
Product height mm	92.964
Product length in	6.300
Product length mm	160.020
Product material	Carbon steel
Product width in	2.000
Product width mm	50.8
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Working pressure max BAR	276.00
Working pressure max PSI	4000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
