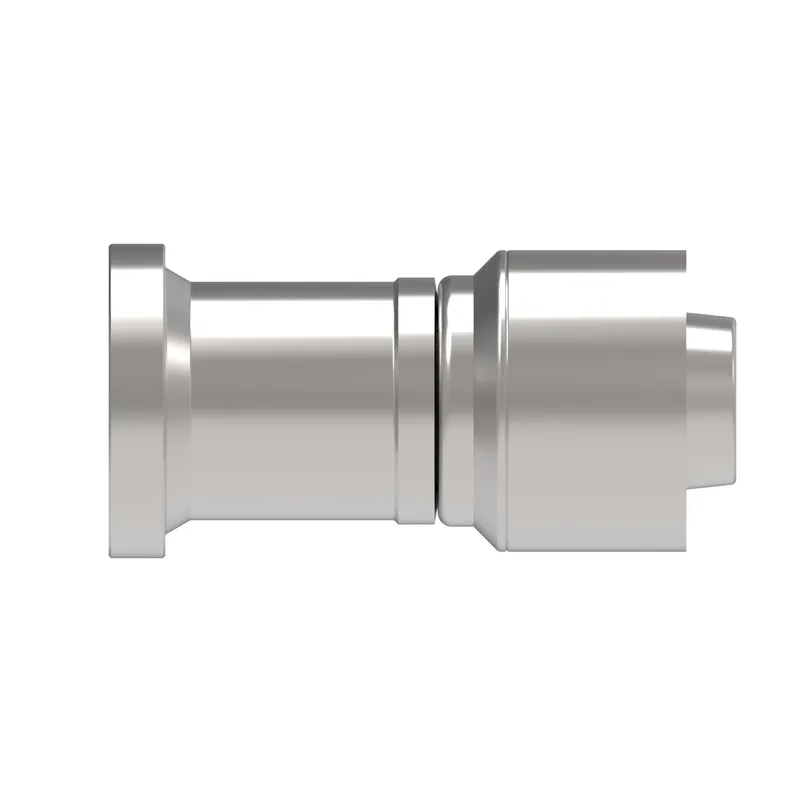

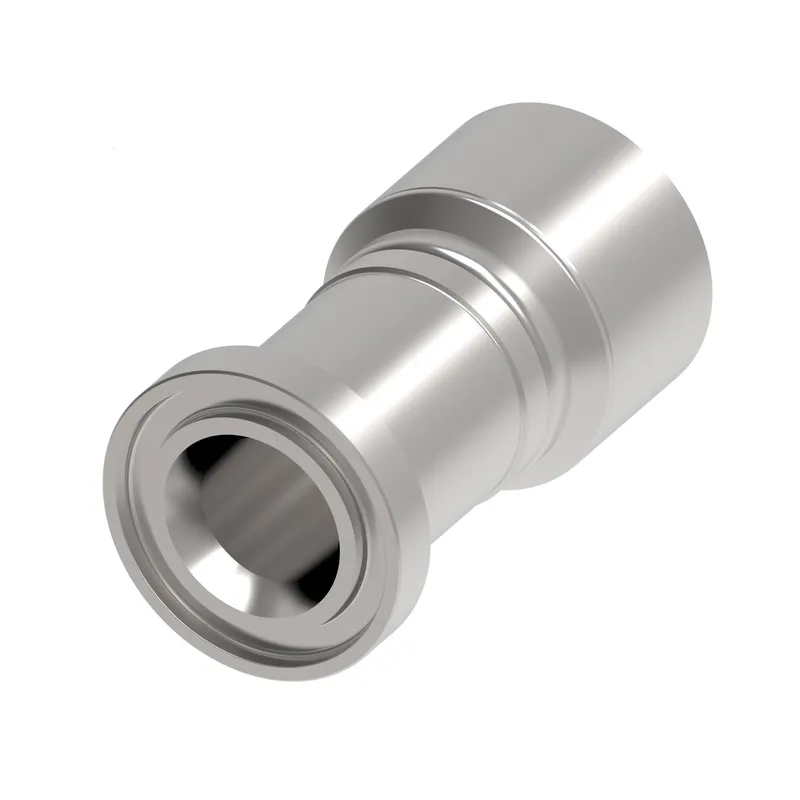

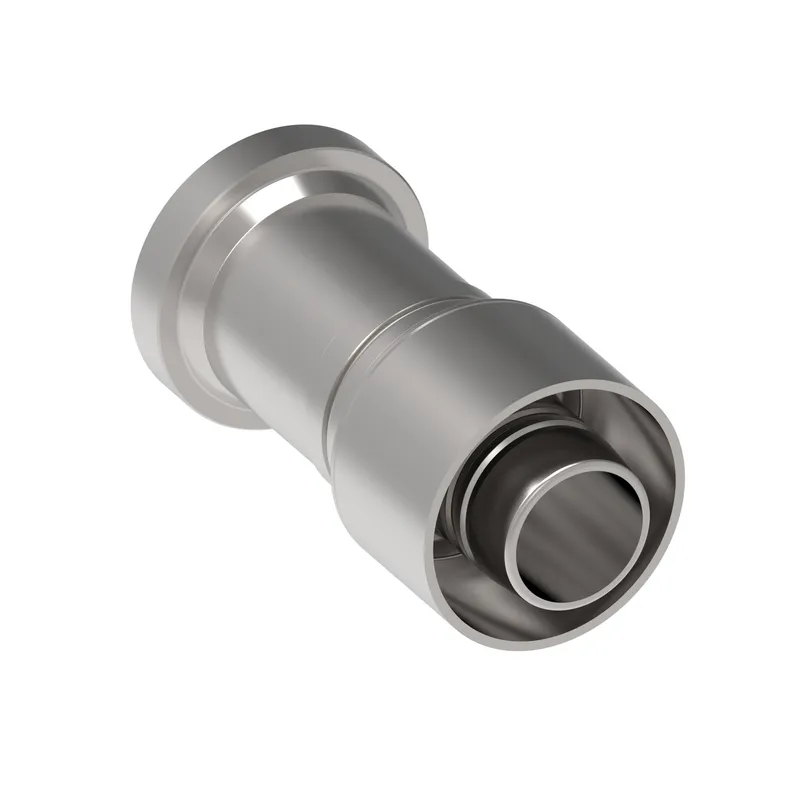

Danfoss 1G24FL24

HOSE FTG, 1G/24, C61/24, CS, STR

MPN: 1G24FL24
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G24FL24?

Danfoss HOSE FTG, 1G/24, C61/24, CS, STR, manufacturer part number 1G24FL24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.170
A dimension MM	106.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
End size 1	-24
End Type 1	Split flange code 61
Finish plating	Dura-Kote
Hose cut off factor IN	2.570
Hose cut off factor MM	65.500
Hose size	-24
Inside diameter IN	1.250
Inside diameter MM	32.000
Product height in	2.374
Product height mm	60.300
Product length in	4.402
Product length mm	111.811
Product material	Carbon steel
Product width in	2.374
Product width mm	60.3
Series	OTC
Thread sealant	No
Working pressure max BAR	206.00
Working pressure max PSI	2950.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
