Danfoss 1G24FL20

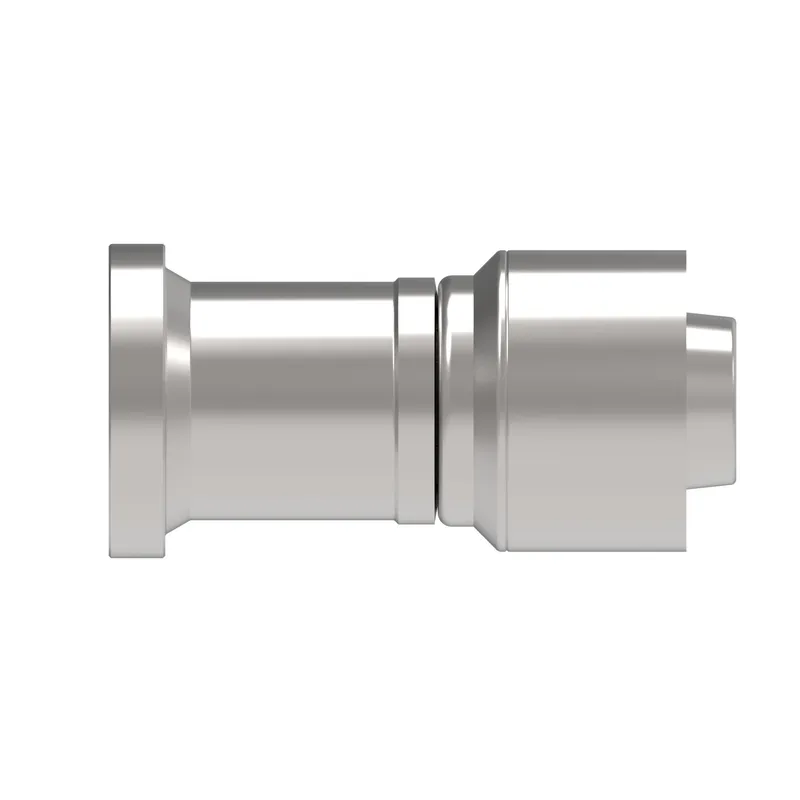

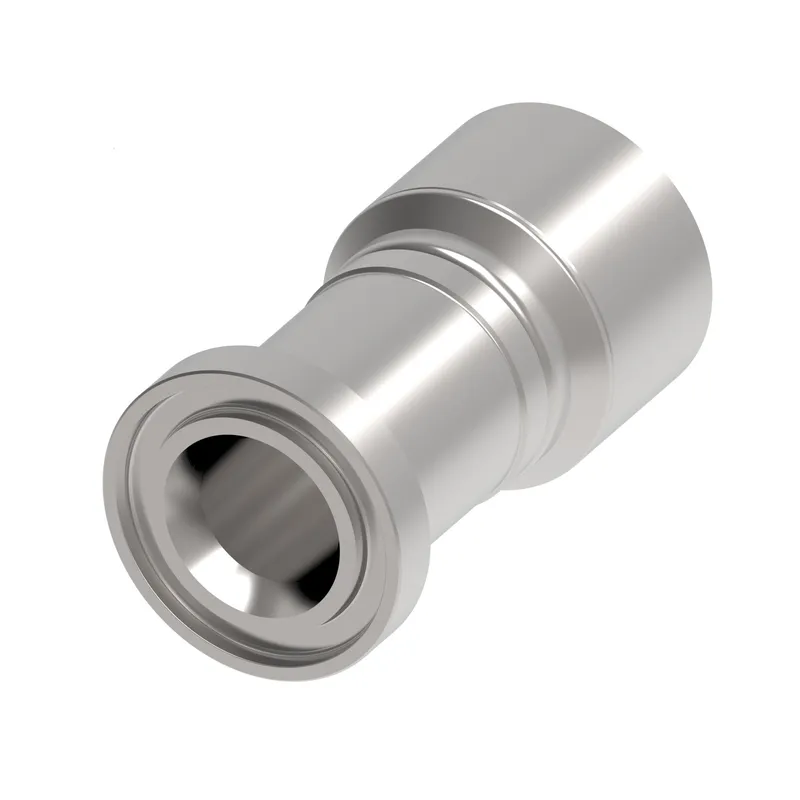

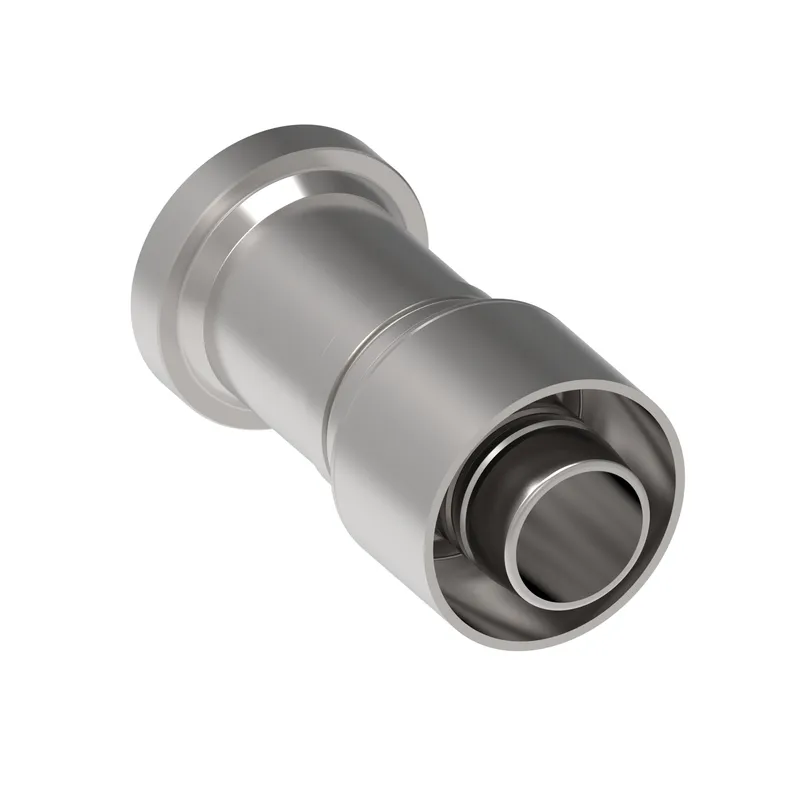

HOSE FTG, 1G/20, C61/24, CS, STR

MPN: 1G24FL20
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G24FL20?

Danfoss HOSE FTG, 1G/20, C61/24, CS, STR, manufacturer part number 1G24FL20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.920
A dimension MM	99.800
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End size 1	-24
End Type 1	Split flange code 61
Finish plating	Dura-Kote
Hex size 1 IN	0.000
Hose cut off factor IN	2.530
Hose cut off factor MM	64.500
Hose size	-20
Inside diameter IN	1.040
Inside diameter MM	26.600
Product height in	2.374
Product height mm	60.300
Product length in	4.270
Product length mm	108.458
Product material	Carbon steel
Product width in	2.374
Product width mm	60.3
Series	OTC
Thread sealant	No
Working pressure max BAR	206
Working pressure max PSI	2950
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1G24FL20: frequently asked questions

When can 1G24FL20 be shipped?

1G24FL20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1G24FL20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1G24FL20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1G24FL20, subject to availability and destination.
