Danfoss 1G20FJ16

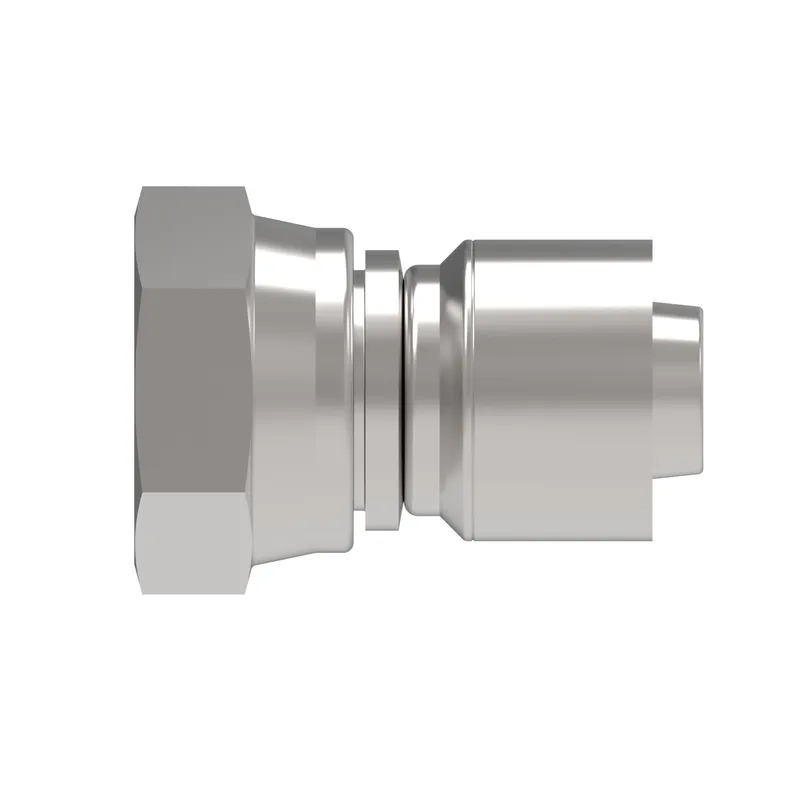

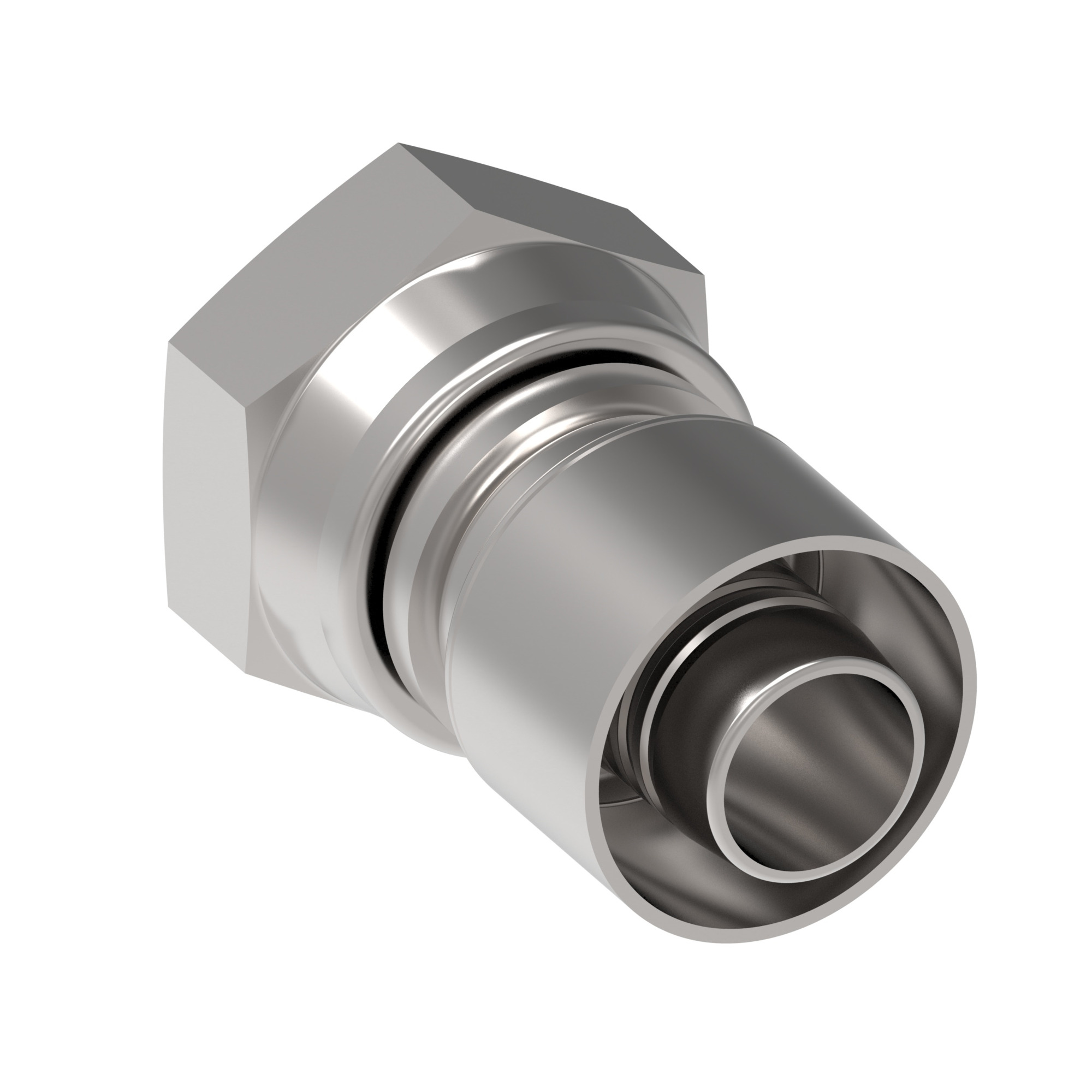

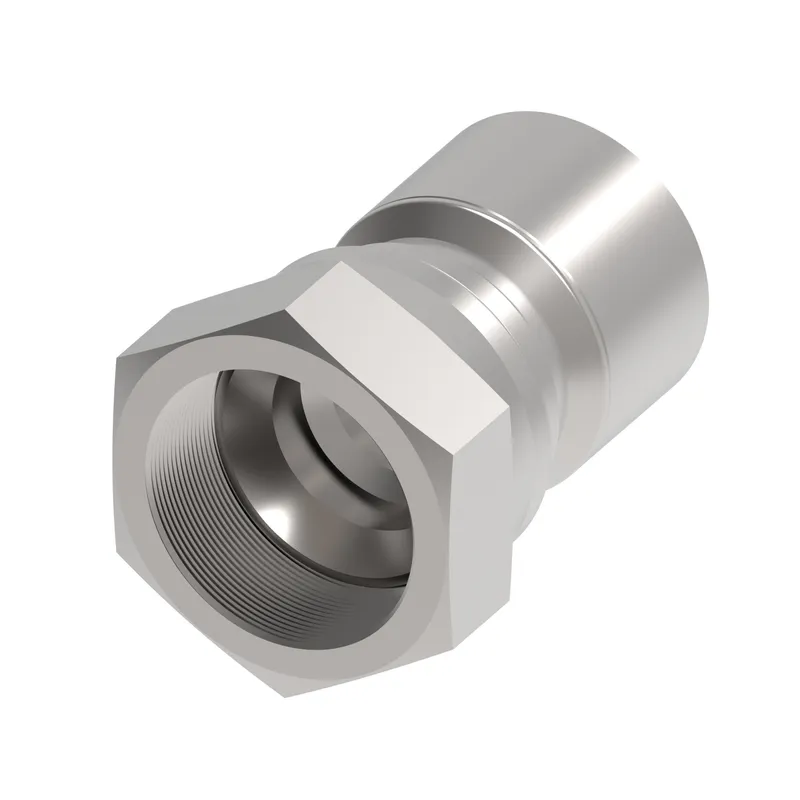

HOSE FTG, 1G/16, JIC-F/20, CS, STR

MPN: 1G20FJ16
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G20FJ16?

Danfoss HOSE FTG, 1G/16, JIC-F/20, CS, STR, manufacturer part number 1G20FJ16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.910
A dimension MM	73.800
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	GH585, GH586
Construction Style	Crimp
End connection torque	127-133 lb-ft(173-182 Nm)
End size 1	-20
End Type 1	Female 37 degree swivel
Finish plating	Zinc plating
Hex size 1 IN	1.968
Hex size 1 MM	49.987
Hose cut off factor IN	1.810
Hose cut off factor MM	46.100
Hose size	-16
Inside diameter IN	0.810
Inside diameter MM	20.700
Product height in	1.968
Product height mm	49.987
Product length in	2.910
Product length mm	73.914
Product material	Carbon steel
Product width in	1.968
Product width mm	49.987
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	1 5/8-12 UN
Working pressure max BAR	172
Working pressure max PSI	2500
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
