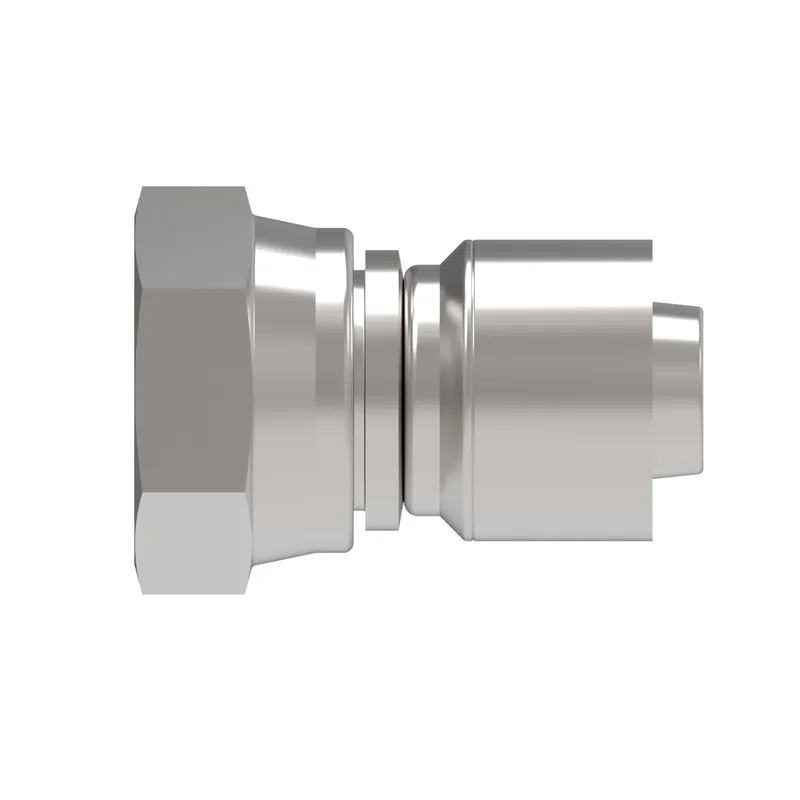

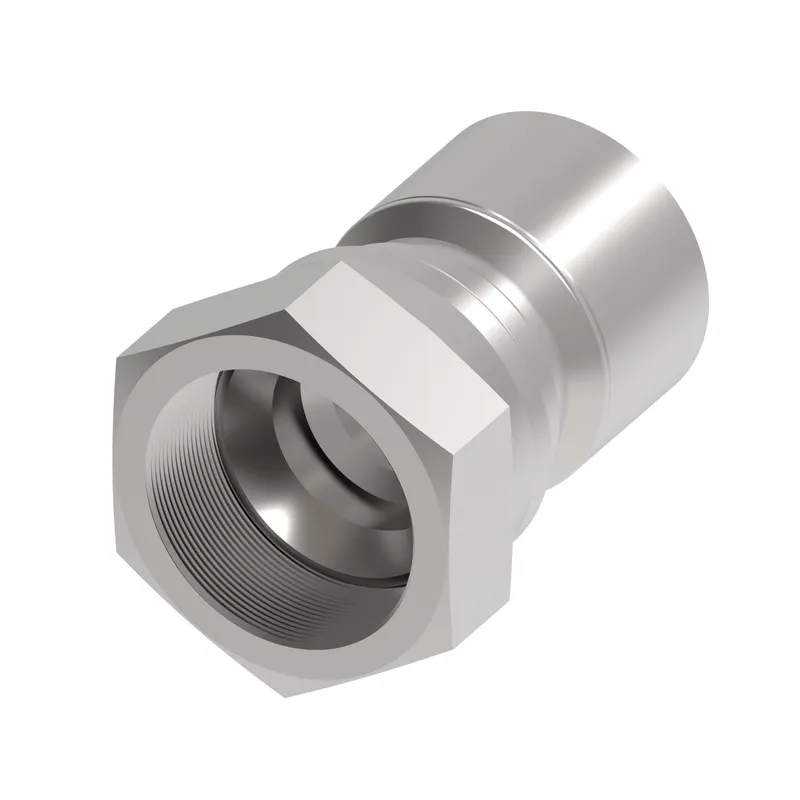

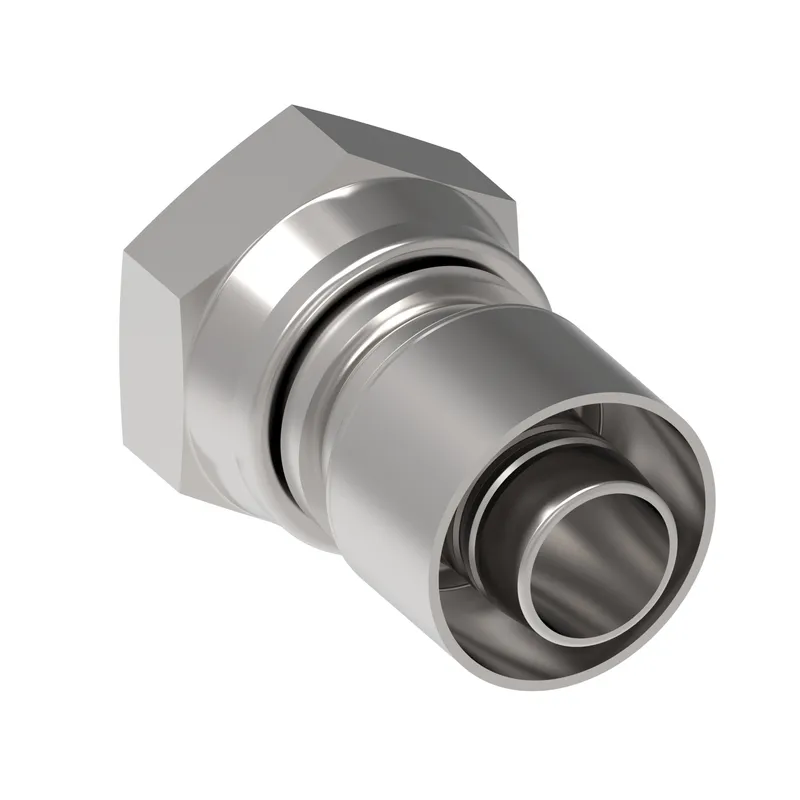

Danfoss 1G24FJ24

HOSE FTG, 1G/24, JIC-F/24, CS, STR

MPN: 1G24FJ24
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G24FJ24?

Danfoss HOSE FTG, 1G/24, JIC-F/24, CS, STR, manufacturer part number 1G24FJ24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.670
A dimension MM	93.100
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
End connection torque	158-167 lb-ft(216-227 Nm)
End size 1	-24
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	2.362
Hex size 1 MM	60.000
Hose cut off factor IN	2.070
Hose cut off factor MM	52.600
Hose size	-24
Inside diameter IN	1.260
Inside diameter MM	32.000
Product height in	2.728
Product height mm	69.281
Product length in	3.897
Product length mm	98.981
Product material	Carbon steel
Product width in	2.728
Product width mm	69.281
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	1 7/8-12 UN
Working pressure max BAR	138.00
Working pressure max PSI	2000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
