Home / B&R / System units / B&R 5APC3100.KBU2-000
B&R

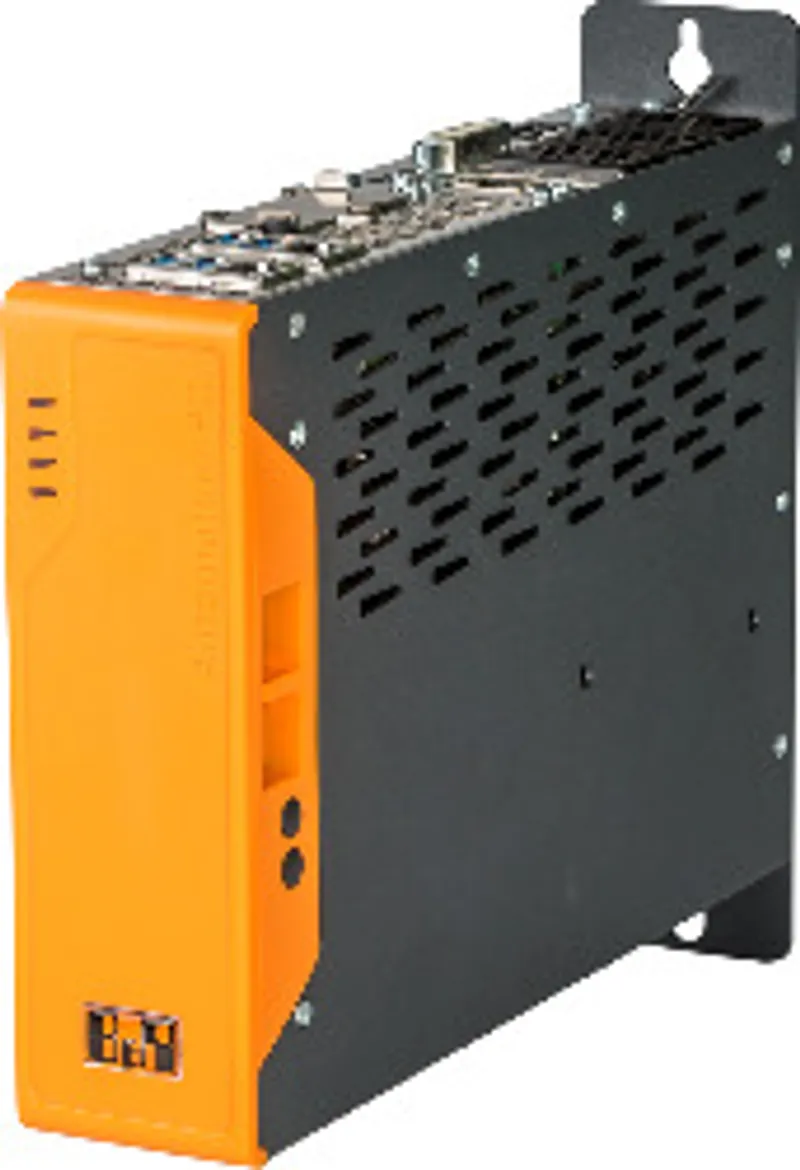

B&R 5APC3100.KBU2-000

APC3100 system unit, Intel Core i5 7300U 2.6 GHz, Dual core

MPN
5APC3100.KBU2-000
Category
System units
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5APC3100.KBU2-000?

APC3100 system unit - Intel Core i5 7300U 2.6 GHz - Dual core

Specifications

General information

Battery – TypeRenata 950 mAh
Battery – Service life4 years (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%. If an interface option with SRAM or POWERLINK is installed, the service life is 2 1 / 2 years.)
Battery – RemovableYes
Battery – VariantLithium ion
Certifications – CEYes
Certifications – UKCAYes
Certifications – CRA (Cyber Resilience Act)Non-compliant
Certifications – ULcULus E115267; Industrial control equipment
Certifications – HazLoccULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)
LEDsPower, Disk, Link, Run
B&R ID code0xEF98
CoolingPassive via heat sink
Power buttonYes
Reset buttonYes
BuzzerNo

Controller

Processor – TypeIntel i5-7300U
Processor – Clock frequency2600 MHz
Processor – Total number of cores2
Processor – Architecture14 nm
Processor – Thermal design power (TDP)15 W
Processor – Intel Smart Cache3 MB
Processor – Intel 64 architectureYes
Processor – Intel Turbo Boost TechnologyYes
Processor – Intel Hyper-Threading TechnologyYes
Processor – Intel vPro TechnologyYes (note: No AMT support in the default BIOS.)
Processor – Intel Virtualization Technology (VT-x)Yes
Processor – Intel Virtualization Technology for Directed I/O (VT-d)Yes
Processor – Enhanced Intel SpeedStep TechnologyYes
Real-time clock – AccuracyAt 25°C: Typ. 12 ppm (1 second) per day (note: At max. specified ambient temperature: Typ. 58 ppm (5 seconds) - worst case 220 ppm (19 seconds).)
Real-time clock – Battery-backedYes
Power failure logic – ControllerMTCX (note: Maintenance Controller Extended)
Power failure logic – Buffer time10 ms
Memory – RemovableYes
Memory slot – Number of memory channels2
Memory slot – TypeDDR4 SDRAM
Memory slot – Memory sizeMax. 32 GB
Memory slot – Max. memory bandwidth34.1 GB/s
Graphics – ControllerIntel HD Graphics 620
Graphics – Color depthMax. 32-bit
Graphics – DirectX support12
Graphics – OpenGL support4.4
BootloaderUEFI BIOS
ChipsetIntel Kabylake-U
Trusted Platform Module (TPM)TPM 2.0
Power managementACPI 5.0

Interfaces

CFast slot – Quantity2
CFast slot – TypeSATA III (SATA 6.0 Gbit/s)
USB – Quantity5
USB – Type4x USB 3.0; 1x USB 2.0 (internal for Technology Guard)
USB – VariantType A
USB – Transfer rateLow speed (1.5 Mbit/s), full speed (12 Mbit/s), high speed (480 Mbit/s) to SuperSpeed (5 Gbit/s) (note: The SuperSpeed transfer rate (5 Gbit/s) is only possible with USB 3.0.)
USB – Current-carrying capacityMax. 1 A per connection
Ethernet – Quantity2
Ethernet – VariantRJ45, shielded
Ethernet – Transfer rate10/100/1000 Mbit/s
Ethernet – Max. baud rate1 Gbit/s
SDL/DVI-D interface – VariantDVI-D
SDL/DVI-D interface – TypeSDL/DVI

Slots

Interface option3 (note: The interface option can be replaced.)

Electrical properties

Nominal voltage24 VDC ±25%, SELV (note: IEC 61010-2-201 requirements must be observed.)
Nominal currentMax. 5.5 A
Inrush currentMax. 60 A for < 300 µs
Overvoltage category per EN 61131-2II
Galvanic isolationYes

Operating conditions

Pollution degree per EN 61131-2Pollution degree 2
Degree of protection per EN 60529IP20 (note: Only if all interface covers are installed.)

Ambient conditions

Elevation – OperationMax. 3000 m (component-dependent) (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.)

Mechanical properties

Dimensions – Width54 mm (note: All dimensions without mounting plate.)
Dimensions – Height173.5 mm (note: All dimensions without mounting plate.)
Dimensions – Depth248.3 mm (note: All dimensions without mounting plate.)
Weight1380 g

Accessories

Required accessories (order separately)

5CFAST.8192-00CFast cards — 8 GB CFast card; SLC flash; SATA 2.6 compatible; Static wear leveling CFast 8 GB SLC
5CFAST.4096-00CFast cards — 4 GB CFast card; SLC flash; SATA 2.6 compatible; Static wear leveling CFast 4 GB SLC
5CFAST.256G-10CFast cards — CFast 256 GB MLC
5CFAST.2048-00CFast cards — 2 GB CFast card; SLC flash; SATA 2.6 compatible; Static wear leveling CFast 2 GB SLC
5CFAST.128G-10CFast cards — CFast 128 GB MLC
5CFAST.064G-10CFast cards — CFast 64 GB MLC
5CFAST.032G-10CFast cards — CFast 32 GB MLC
5CFAST.032G-00CFast cards — 32 GB CFast card; SLC flash; SATA 2.6 compatible; Static wear leveling CFast 32 GB SLC
5CFAST.016G-00CFast cards — 16 GB CFast card; SLC flash; SATA 2.6 compatible; Static wear leveling CFast 16 GB SLC
Optional accessories (25)
5ACCLI02.SDL0-000Graphics options — Graphics option - 1x SDL/DVI transmitter - For APC3100/PPC3100
5ACCLI02.SD40-000Graphics options — Graphics option - 1x SDL4 transmitter (max. 1920 x 1080) - For APC3x00/PPC3x00
5ACCLI02.DPO0-000Graphics options — Graphics option - 1x DisplayPort transmitter (version 1.2) - For APC3x00/PPC3x00 - For APC4100
5ACCIF04.FPLK-000Interface options — 1x POWERLINK interface (managing or controlled node) for real-time communication; Poll-response chaining; Compatible with APC3x00/PPC3x00 a…
5ACCIF02.ISS0-000Interface options — Interface card - 2x RS232/RS422/RS485 interface - For APC3x00/PPC3x00
5ACCIF02.FPSC-000Interface options — Interface card - 2 MB SRAM - 1x RS232 interface - 1x CAN interface - 1x POWERLINK interface - 1x X2X - For APC3x00/PPC3x00
5ACCIF02.FPLS-000Interface options — Interface card - 2 MB SRAM - 1x RS232 interface - 1x POWERLINK interface - For APC3x00/PPC3x00
5ACCIF02.FPLK-000Interface options — Interface card - 1x POWERLINK interface - 2 MB SRAM - Integrated 2-port hub - Ring redundancy - POWERLINK managing or controlled mode - PRC…
5ACCIF02.CANE-000Interface options — Interface card - 1x CAN interface (SJA1000) - 1x ETH 10/100/1000 - For APC3x00/PPC3x00
5AC901.ISRM-00Interface options — 2 MB SRAM; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Interface option 5AC901.ISRM-00 is equipped with 2 MB SRAM.
5AC901.ISIO-00Interface options — Connections for the reset button and power buttons on the PC; Connection for LED "Power" on the PC; 1 normally closed contact, 1 normally o…
5AC901.IRDY-00Interface options — 1 normally closed contact, 1 normally open contact; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Ready relay 5AC901.IRDY-00 i…
5AC901.IPLK-00Interface options — 1x POWERLINK interface managing or controlled node; 2 MB SRAM; Compatible with APC910/PPC900 and APC3100/PPC3100 Interface card - 1x POWERL…
5AC901.IHDA-00Interface options — 1x MIC; 1x Line IN; 1x Line OUT; Compatible with APC910/PPC900, APC3x00/PPC3x00 and APC4100 Interface option 5AC901.IHDA-00 is equipped wit…
5AC901.IETH-00Interface options — Interface card - 1x ETH 10/100/1000 - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100
5AC901.ICAN-01Interface options — Interface card - 1x CAN interface (SJA1000) - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100
5AC901.ICAN-00Interface options — 1x CAN bus master interface; Compatible with APC910/PPC900 and APC3100/PPC3100 Interface option 5AC901.ICAN-00 is equipped with a CAN bus m…
5AC901.I485-00Interface options — 1x RS232/RS422/RS485 interface; Compatible with APC910/PPC900 and APC3100/PPC3100 Interface option 5AC901.I485-00 is equipped with an RS232…
5AC901.I232-00Interface options — Interface card - 1x RS232 interface - For APC910/PPC900 - For APC3x00/PPC3x00 - For APC4100
5MMDDR.8192-04Main memory — SO-DIMM DDR4, 8192 MB
5MMDDR.4096-04Main memory — SO-DIMM DDR4, 4096 MB
5MMDDR.016G-04Main memory — SO-DIMM DDR4, 16384 MB
5ACCMS01.MDT2-000Mass storage options — Compatible in the APC3x00/PPC3x00 and APC4100 (only with 5ACCMBMS.0000-000 ); Easy installation in slot IF option 3.; 5ACCMSM2.xxxx-000 mem…
5AC901.IUPS-01Uninterruptible power supplies — UPS IF option 5AC901.IUPS-01 used together with battery unit 5AC901.BUPS-01 allows the B&R industrial PC to be switched off properly withou…
5AC901.IUPS-00Uninterruptible power supplies — UPS IF option 5AC901.IUPS-00 used together with battery unit 5AC901.BUPS-00 allows the B&R industrial PC to be switched off properly withou…
